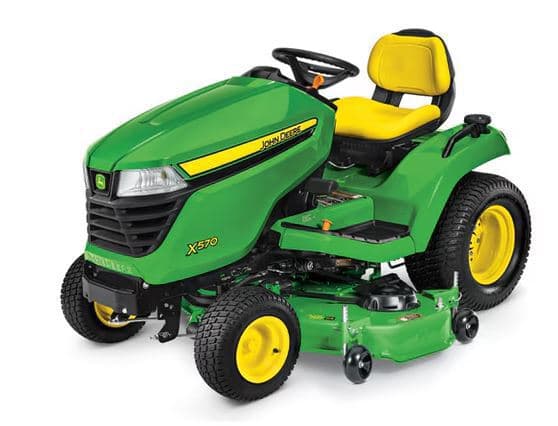

2026 John Deere X570

Description

ENGINE 24 hp* (17.9 kW) 44.3-cu in. (726-cc) displacement Air cooled, V-twin cylinder with cast-iron liners Gasoline No tools oil drain Model FS730V ELECTRICAL SYSTEM 12-V, 500-CCA battery 15-amp regulated flywheel alternator Instrument display with hourmeter and fuel gauge; optional MowerPlus Smart Connector available 12-V outlet TRANSAXLE K72 hydrostatic transmission Twin Touch™ pedals Differential lock 0-7.2 mph (0-11.6 km/h) forward speed 0-5.2 mph (0-8.4 km/h) reverse speed Cruise control CHASSIS Cast-iron front axle Replaceable metal spindle bushings 15x6.5-8 front turf tires 24x12-12 rear turf tires Storage under seat, covered toolbox, and cup holder Fender handles Optional front weight bracket holds up to four 42-lb (19-kg) Quik-Tatch™ weights Standard rear weight bracket holds up to four 42-lb (19-kg) Quik-Tatch™ weights STEERING Manual, two-wheel steer 14-in. (36-cm) steering wheel 16-in. (41-cm) turning radius 54A: 20-in. (51-cm) uncut circle radius SEAT 15-in. (38-cm) open back with grasp LIFT SYSTEM Foot pedal mower deck and implement lift with adjustable lift-assist spring MOWER DECK 54-in. (137-cm) Accel Deep™ Mower Deck 10-gauge, 0.135-in. (3.4-mm), steel shell Wash port with hose end Electric PTO clutch Four mower deck wheels, and center front rollers Mower deck wheels rotate 90 degrees for easy mower removal *Engine horsepower and torque information for non-Deere engines are provided by the engine manufacturer for comparison purposes only. Actual ope
