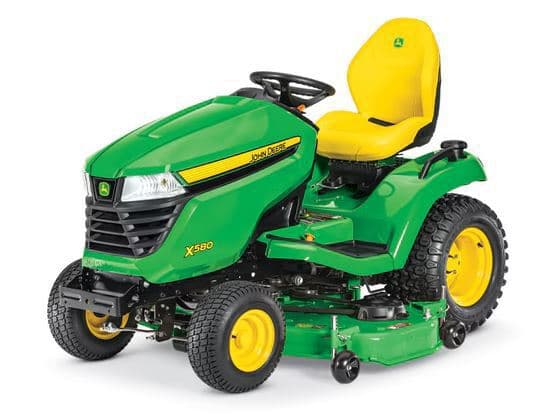

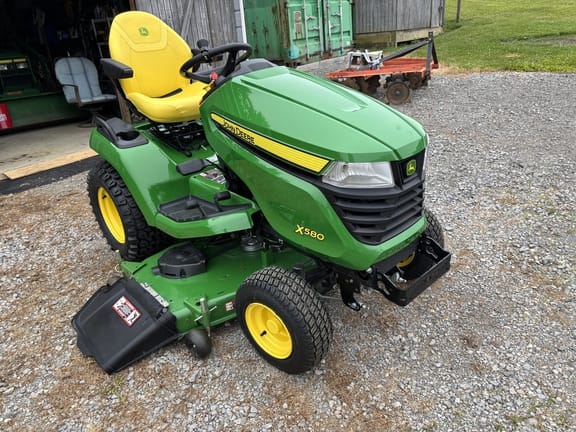

2026 John Deere X580

Description

ENGINE 24 hp* (17.9 kW) 44.3-cu in. (726-cc) displacement Air cooled, V-twin cylinder with cast-iron liners Gasoline No tools oil drain Model FR730V ELECTRICAL SYSTEM 12-V, 340-CCA battery 15-amp regulated flywheel alternator Instrument display with hourmeter and fuel gauge; optional MowerPlus Smart Connector available 12-V outlet TRANSAXLE K72 hydrostatic transmission Twin Touch™ pedals Differential lock 0-7.2 mph (0-11.6 km/h) forward speed 0-5.2 mph (0-8.4 km/h) reverse speed Cruise control CHASSIS Cast-iron front axle Replaceable metal spindle bushings 16x6.5-8 front turf tires 24x12-12 rear HDAP tires Storage under seat, covered toolbox, and cup holder Fender handles Standard front weight bracket holds up to four 42-lb (19-kg) Quik-Tatch™ weights Standard rear weight bracket holds up to four 42-lb (19-kg) Quik-Tatch™ weights STEERING Power, two-wheel steer 14-in. (36-cm) steering wheel 22-in. (56-cm) turning radius 54A: 24-in. (61-cm) uncut circle radius SEAT 21-in. (53-cm) cut-and-sewn high back with brand embroidery Six-position parallel arm scissor suspension system LIFT SYSTEM Hydraulic power mower deck and implement lift MOWER DECK 54-in. (137-cm) Accel Deep™ Mower Deck 10-gauge, 0.135-in. (3.4-mm), steel shell Wash port with hose end Electric PTO clutch Four mower deck wheels, and center front rollers Mower deck wheels rotate 90 degrees for easy mower removal *Engine horsepower and torque information for non-Deere engines are provided by the engine manufactu
