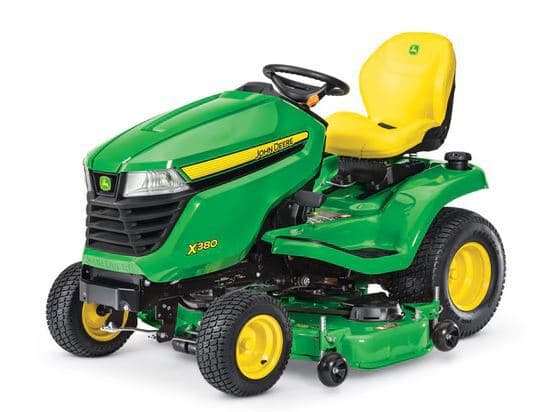

2026 John Deere X380

Description

ENGINE 23 hp* (17.2 kW) 44.3-cu in. (726-cc) displacement Air cooled, V-twin cylinder with cast-iron liners Gasoline No tools oil drain Model FR691V ELECTRICAL SYSTEM 12-V, 340-CCA battery 12-amp charging capacity Instrument display with hourmeter and fuel gauge; optional MowerPlus Smart Connector available Optional 12-V outlet TRANSAXLE K58 hydrostatic transmission Twin Touch™ pedals 0-6.2 mph (0-10 km/h) forward speed 0-3.5 mph (5.6 km/h) reverse speed Cruise control CHASSIS Cast-iron front axle 15x6.5-8 front turf tires 22x11-10 rear turf tires Storage under seat, covered toolbox, and cup holder Optional front weight bracket holds up to four 42-lb (19-kg) Quik-Tatch™ weights Standard rear weight bracket holds up to two 42-lb (19-kg) Quik-Tatch™ weights STEERING Manual, two-wheel steer 14-in. (36-cm) steering wheel 16-in. (41-cm) turning radius 48A: 21-in. (53-cm) uncut circle radius SEAT 18-in. (46-cm) cut-and-sewn high back with brand embroidery LIFT SYSTEM Foot pedal mower deck and implement lift with adjustable lift-assist spring MOWER DECK 48-in. (122-cm) Accel Deep™ Mower Deck 10-gauge, 0.135-in. (3.4-mm), steel shell Wash port with hose end Electric PTO clutch Four mower deck wheels, and center front rollers Mower deck wheels rotate 90 degrees for easy mower removal *Engine horsepower and torque information for non-Deere engines are provided by the engine manufacturer for comparison purposes only. Actual operating horsepower and torque will be less. Refer to
