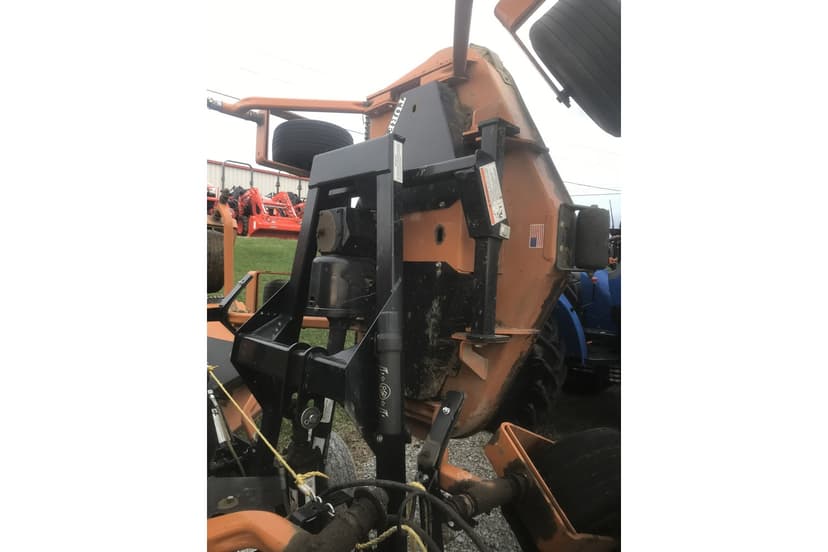

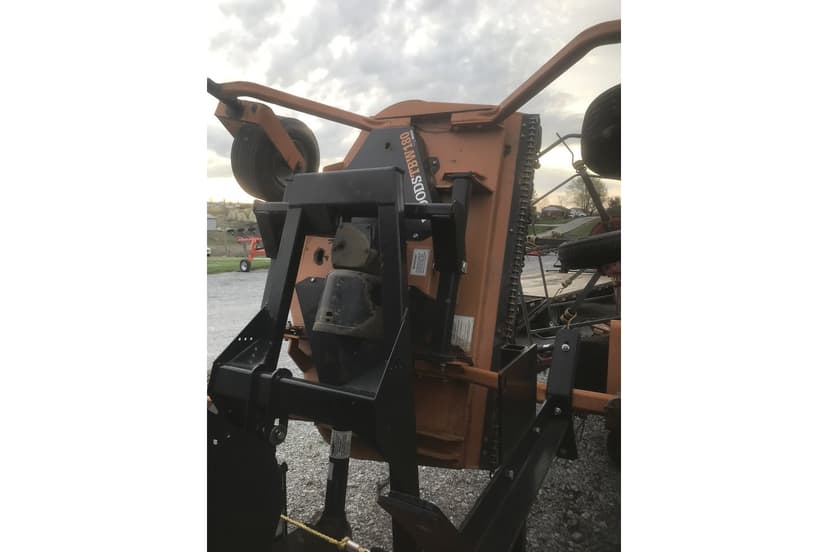

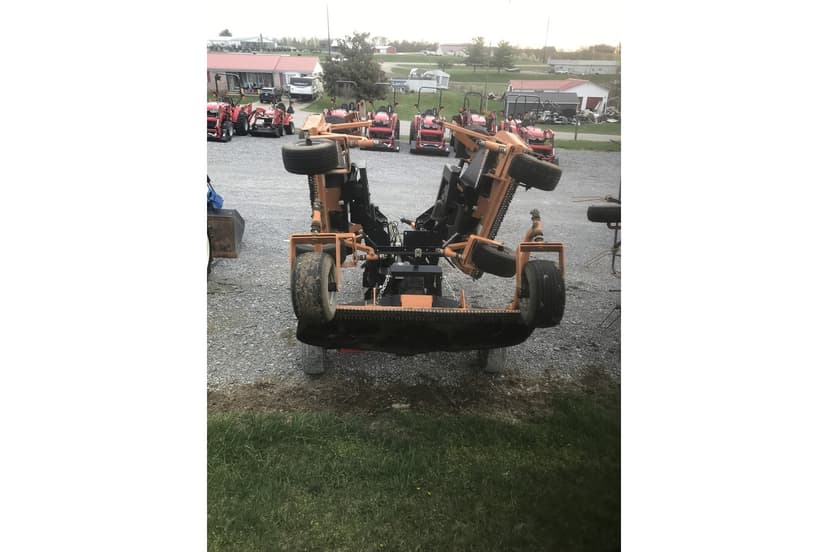

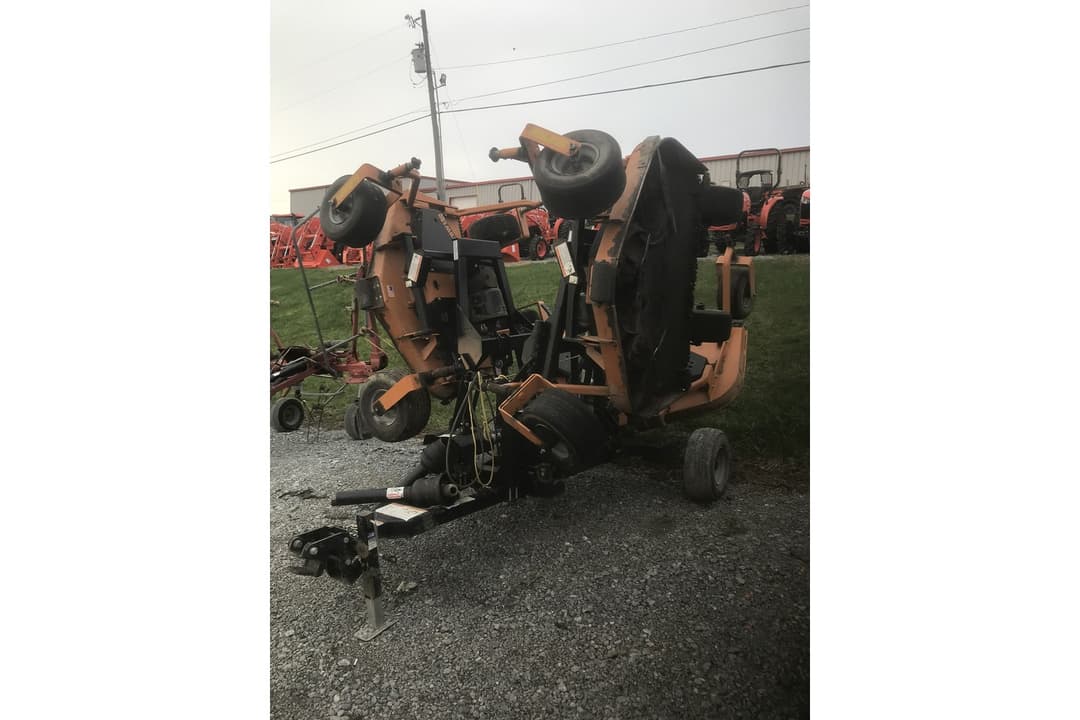

2019 Woods TBW180

Description

Specifications PTO Horsepower: 35 - 80 hp Cutting width: 180" Cutting height: 1" - 5" Wing deck cutting width: 60" Deck overlap: 6" Overall width: 182" Transport width: 100" Maximum overall length: 183" Transport length: 161" Horsepower required: 35 - 80 hp Splitter gearbox horsepower: 100 hp Deck gearbox horsepower: 75 hp Blade tip speed: 18,000 fpm Drive type: Gearbox over v-belt Input driveline: Cat 4 CV (constant velocity) Wing drivelines: Cat 3 Transport tires: (2) 20.5" X 8" - 10" Caster wheel bearings: Tapered roller bearings Caster wheels: (10) 18" x 9.5" - 8" pneumatic Deck thickness: 8 gauge Wing deck lift cylinders: 3.5" x 10", single acting Center deck lift cylinders: 3" x 8" single acting Trailer frame construction: .25" wall tubing Hitch adjustment: Floating clevis, multi-position Blade spindles bearings: Greasable tapered roller Blade dimensions: (9) .25" x 2.5" Blade spindles: (9) cast-iron Cutting height adjustment: Spacer on caster Belts: B-section, Kevlar® Belt adjustment: Spring loaded idler Chain shielding: Standard Key Features 15-foot cutting width Tractor HP range: 35-80 hp Carrier bearing on the input driveline provides support, making it easier to attach and allowing for tighter turns Superior cutting capabilities combined with contoured wing decks, to let you quickly cut large, uneven areas of turf while maintaining quality Rounded front, tapered rear deck design allows mowing close to objects without damage Round skid rod adds strength to deck skir
