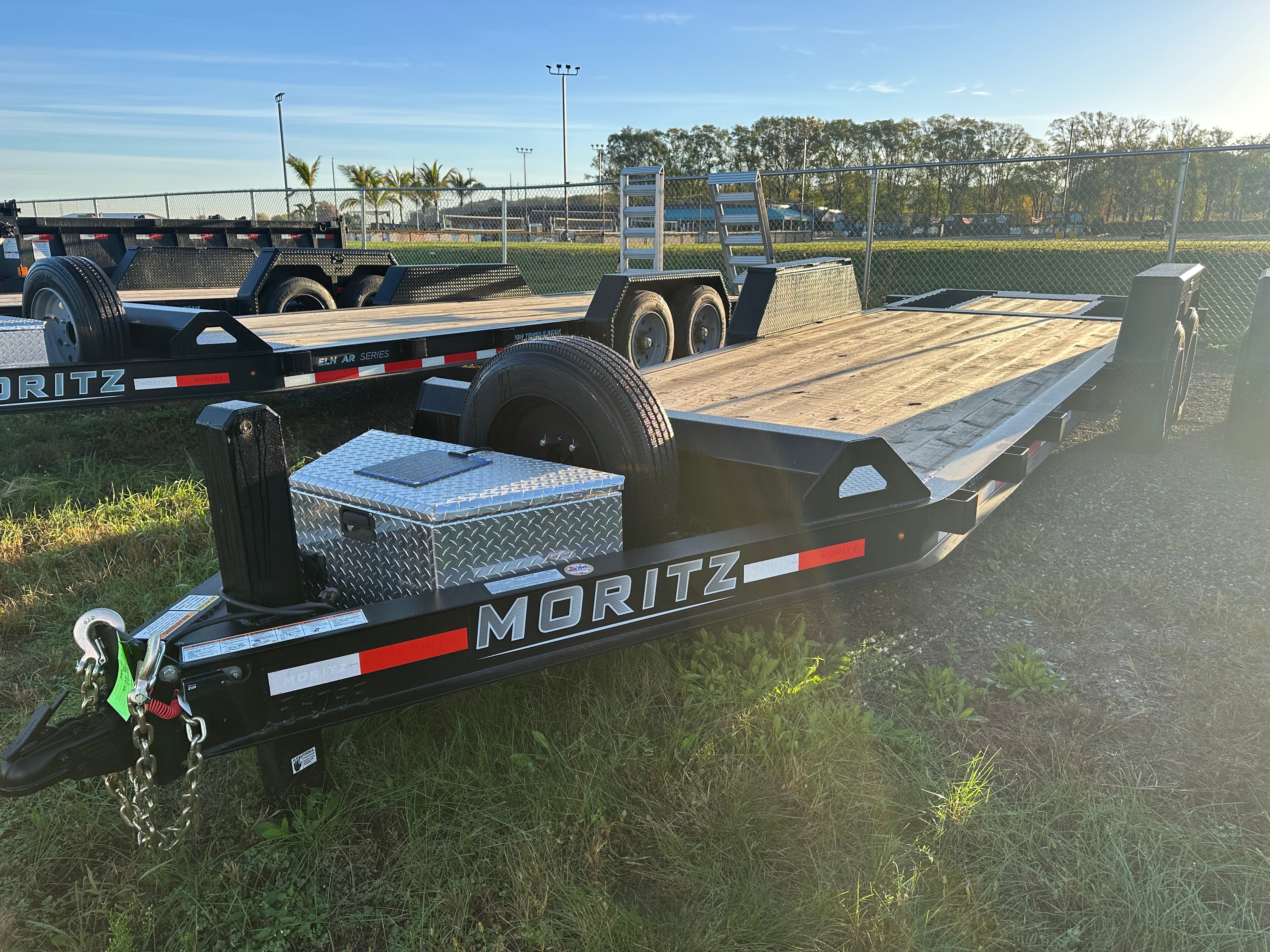

Moritz ELBH HT-22 T

Description

Trailer-22-Bumper Pull-Hyd Tail-Ele Brakes Manufacturer: Moritz Model: ELBH HT-22 Type: Low-Profile Equipment Trailer with Hydraulic Tail Configuration: 22' Bumper Pull GVWR: 16,000 lbs. Estimated Empty Weight: 4,140 lbs. Estimated Payload: 11,860 lbs. Deck Length: 22' Width Between Fenders: 81-1/2" Overall Width: Approx. 102" Deck Height: 22.5"-23.5" Hydraulic Tail Length: 66" Loading Angle: Approx. 18 degrees Frame: One-piece 8" cold-formed I-beam Frame Beam: 8" @ 15 lb./ft. Crossmembers: 3" channel on 16" centers Floor: 2" treated Yellow Pine Stake Pockets: 4" × 1/4" formed bar Toolbox: Aluminum diamond plate Fenders: 1/8" steel diamond plate Suspension: Dexter rubber-ride torsion Axles: Tandem 8,000-lb. axles Brakes: Electric brakes on all wheels Tires: 17.5", 16-ply rated Wheels: 8-bolt Spindles: Easy-Lube Hydraulic Tail: Hydraulic power tail with self-locking transport system Hydraulic System: Power-up / gravity-down Hydraulic Cylinders: Dual cylinders Hydraulic Controls: Wireless remote available Jack: 12,000-lb. spring-loaded drop-leg Coupler: 2-5/16" adjustable, 4-bolt Safety Chains: 3/8" with latch hooks Lighting: LED Wiring: Sealed wire harness Breakaway: Breakaway kit with charger Warranty: 2-year limited Available Colors: Red, Black, or Charcoal
