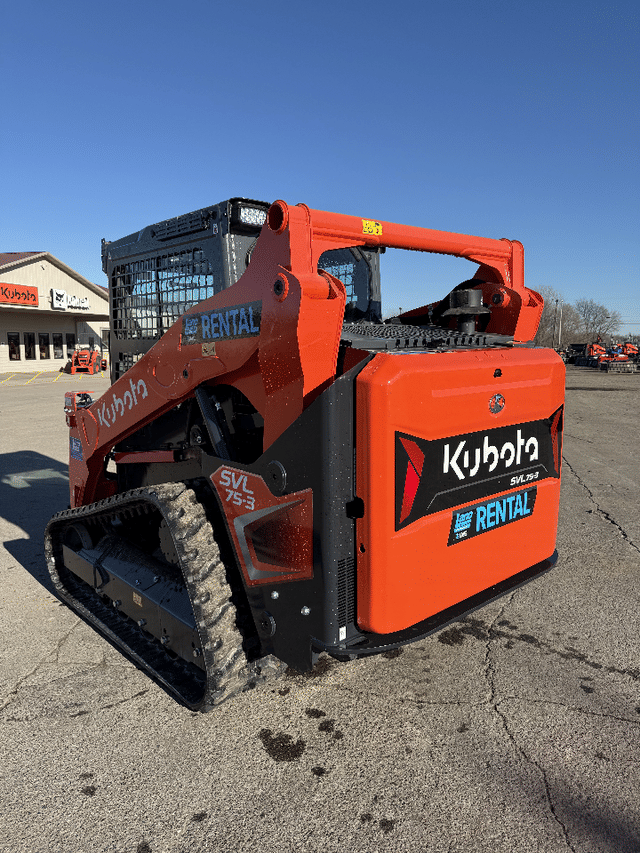

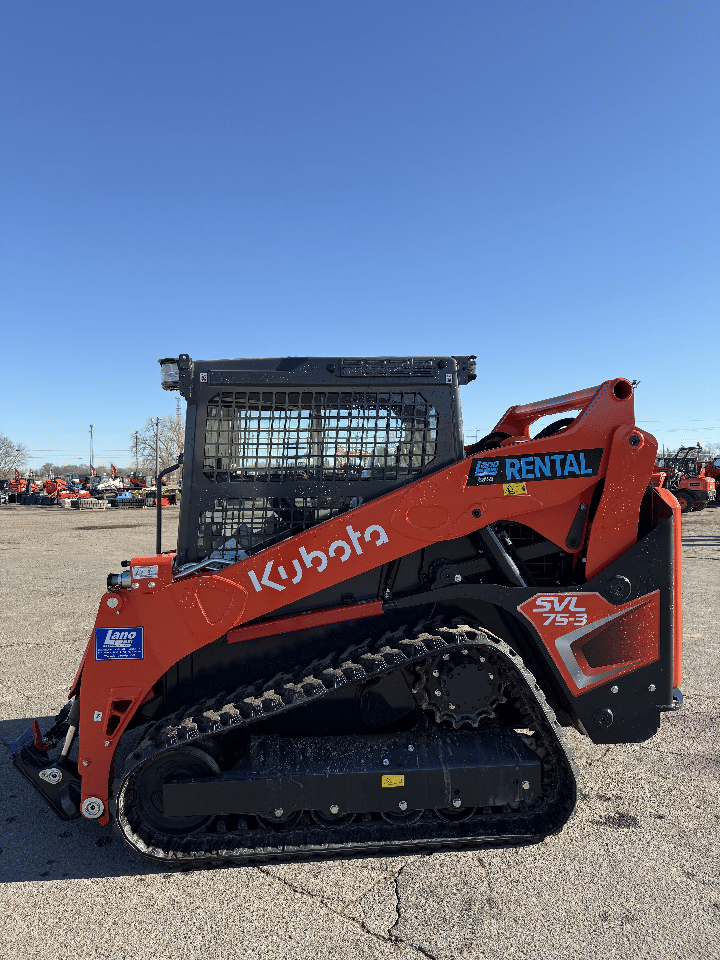

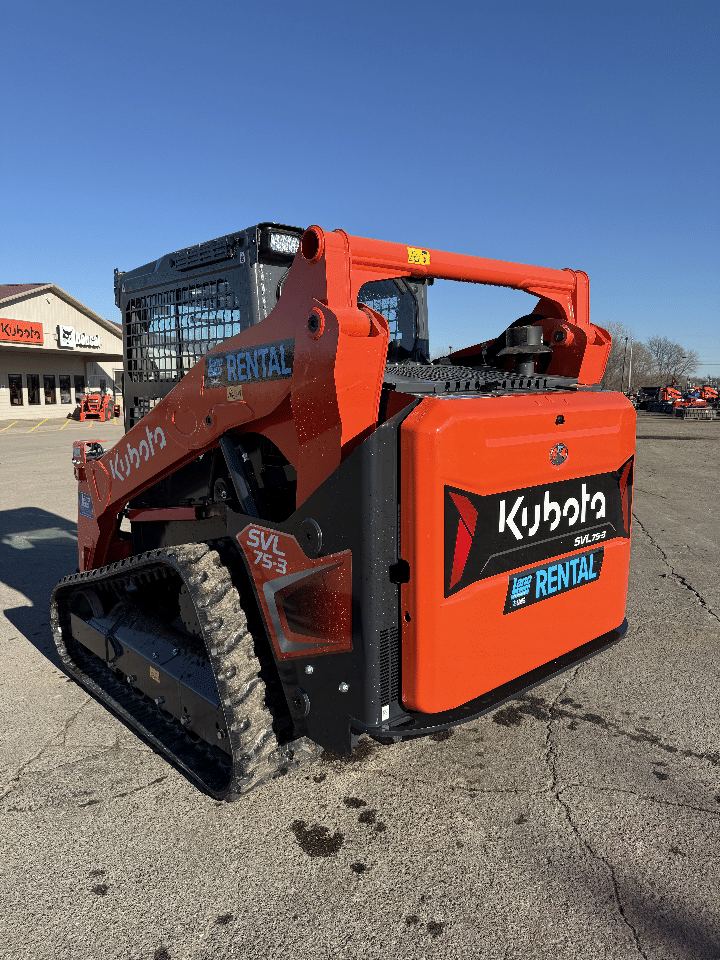

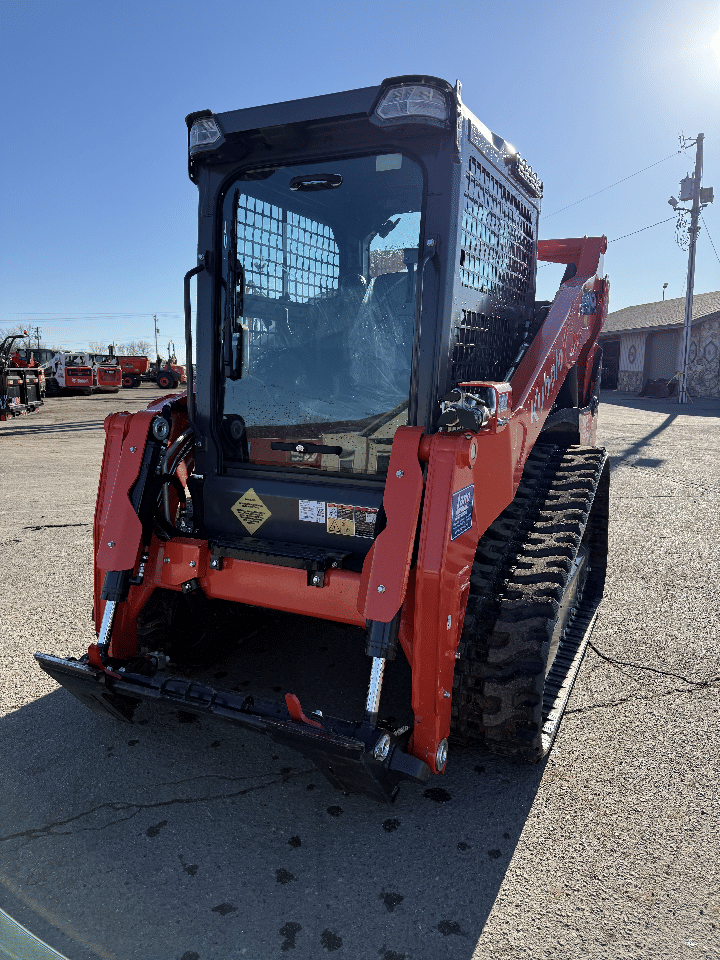

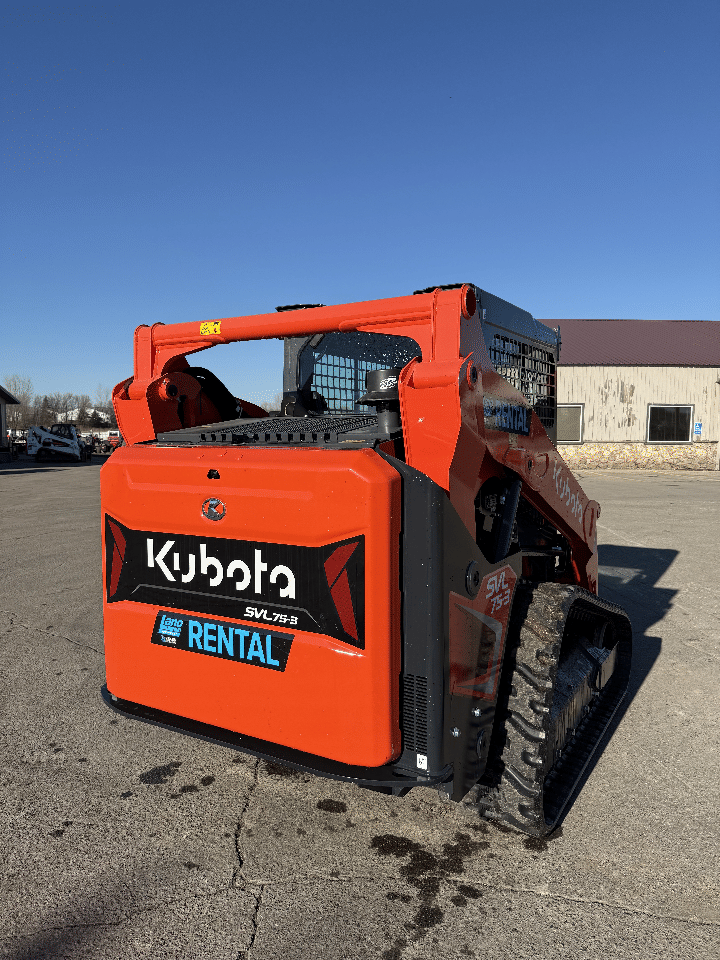

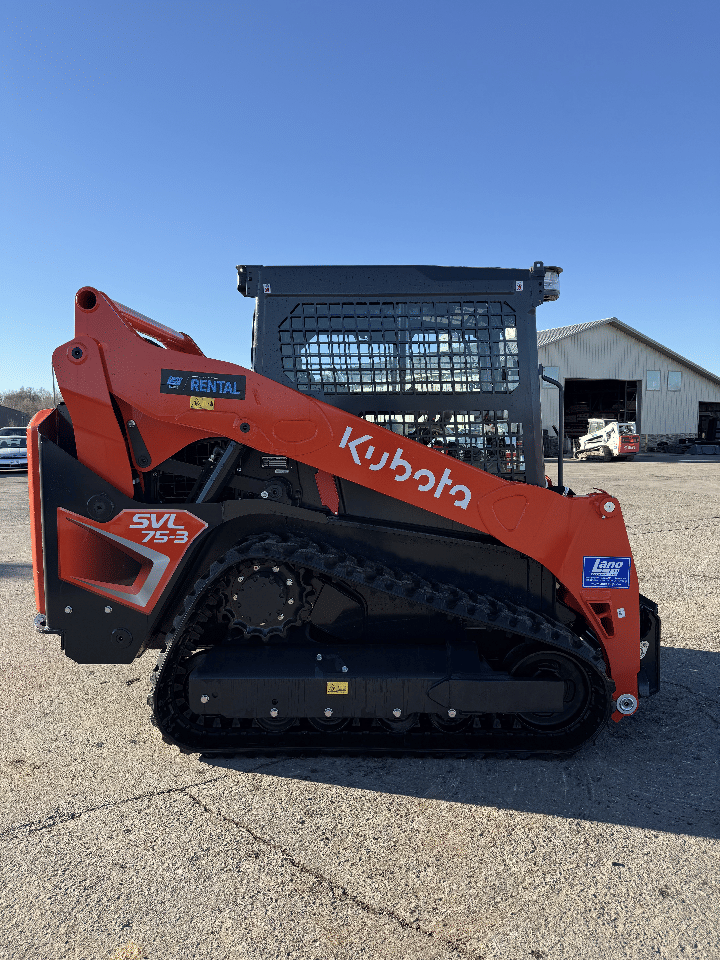

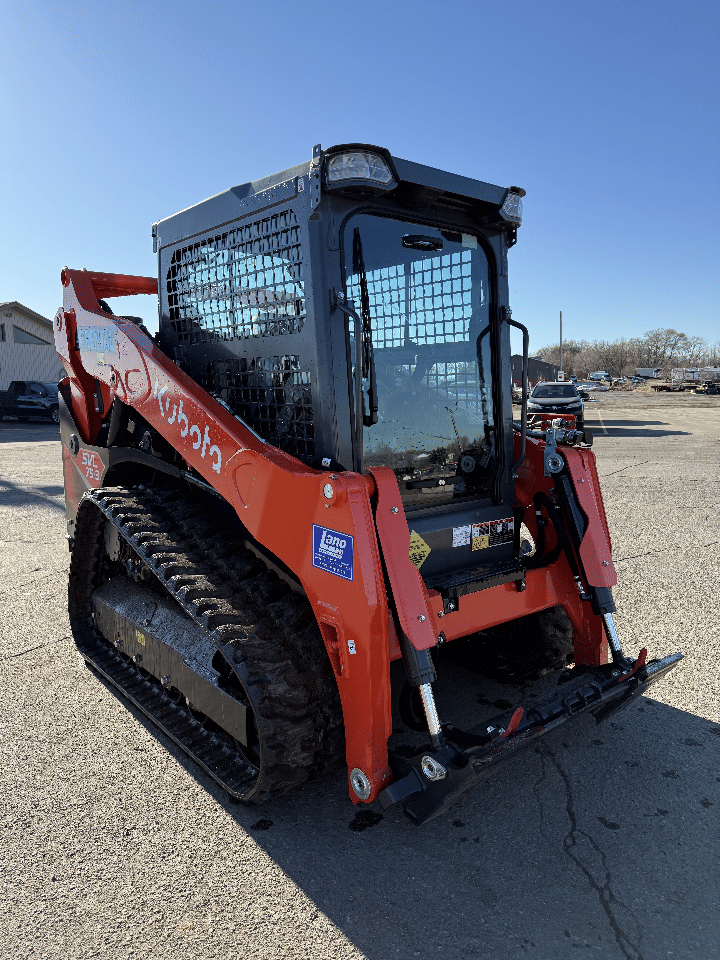

2024 Kubota SVL75-3HWCC

Description

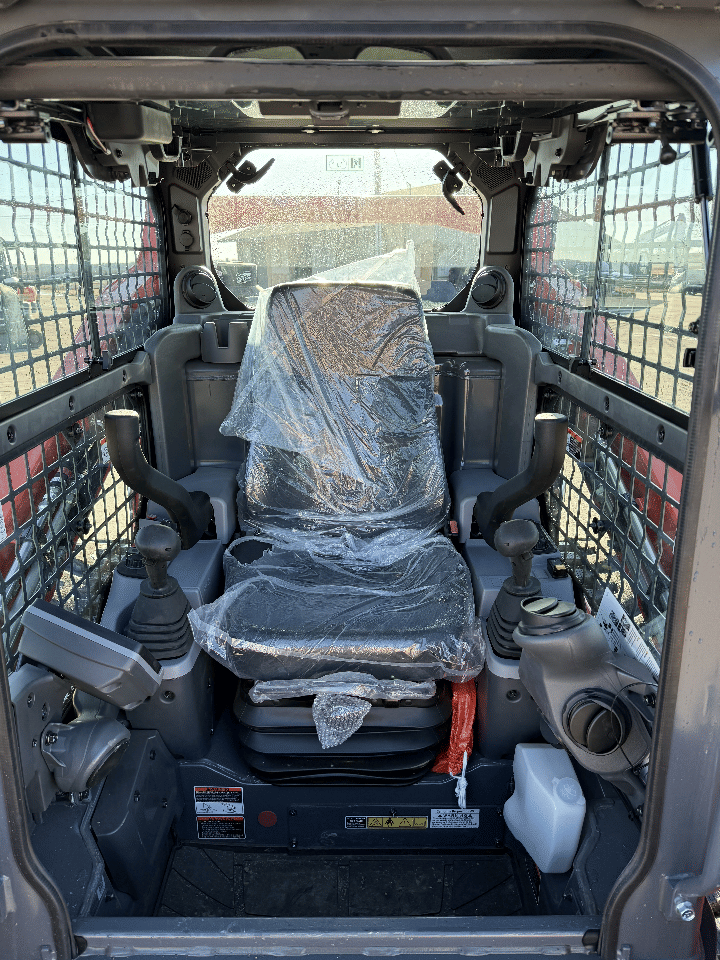

CTL-A/C Cab/Heat-Hyd QC--Cold Pkg-15 Track Engine Manufacturer: Kubota Engine Model: V3307-TE5A Turbocharged Diesel Gross Horsepower: 74.3 HP @ 2,400 RPM Net Horsepower: 73.2 HP Cylinders: 4 Displacement: 203.2 cu in (3.3 L) Rated Operating Capacity (35%): 2,490 lb Rated Operating Capacity (50%): 3,557 lb Tipping Load: 7,112 lb Bucket Breakout Force: 6,191 lbf Lift Arm Breakout Force: 4,723 lbf Auxiliary Hydraulic Flow (Standard): 19.2 GPM Auxiliary Hydraulic Flow (High-Flow): 29.8 GPM Hydraulic System Pressure: 3,185 PSI Travel Speed (Low): 5.6 mph Travel Speed (High): 8.6 mph Track Width (Standard): 12.6 in Track Width (Optional): 15.8 in Ground Pressure (Standard Tracks): 5.8 psi Ground Pressure (Wide Tracks): 4.7 psi Ground Contact Length: 56.5 in Ground Clearance: 11.7 in Operating Weight (Enclosed Cab): 9,420 lb Operating Weight (Open Cab): 9,190 lb Length (Without Bucket): 112 in Width (Standard Tracks): 65.9 in Height to Top of Cab: 81.8 in Lift Path: Vertical Hinge Pin Height: 122.7 in Reach at Max Lift: 39.6 in Cab Configuration: Enclosed Cab with Heat & A/C Controls: Pilot Joystick Controls Travel Drive: Two-Speed with Auto-Shift Camera: Rear-View Camera
