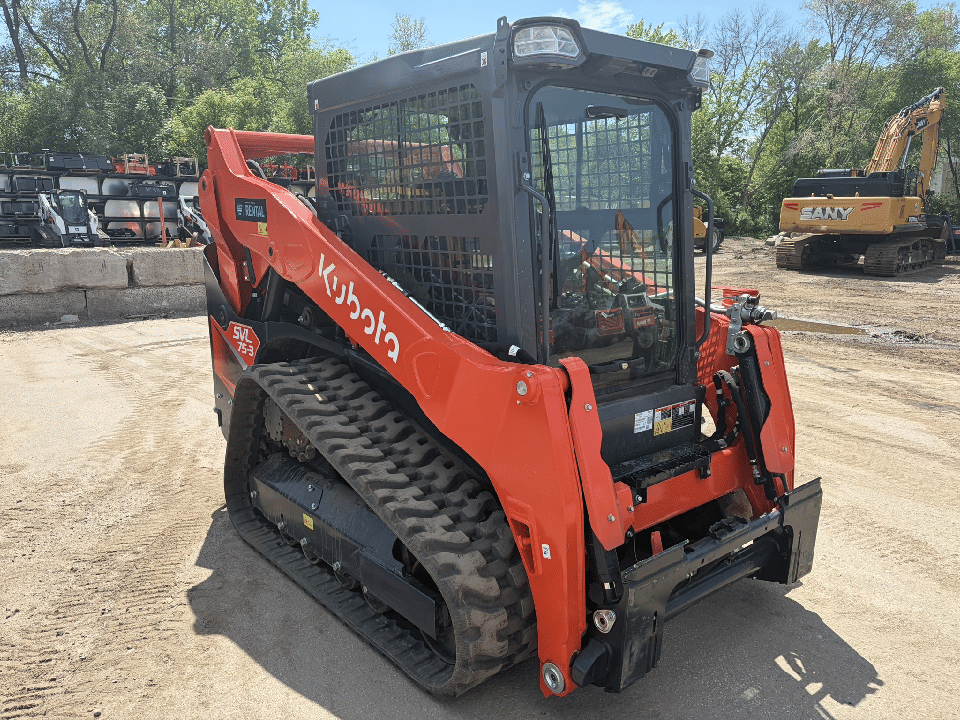

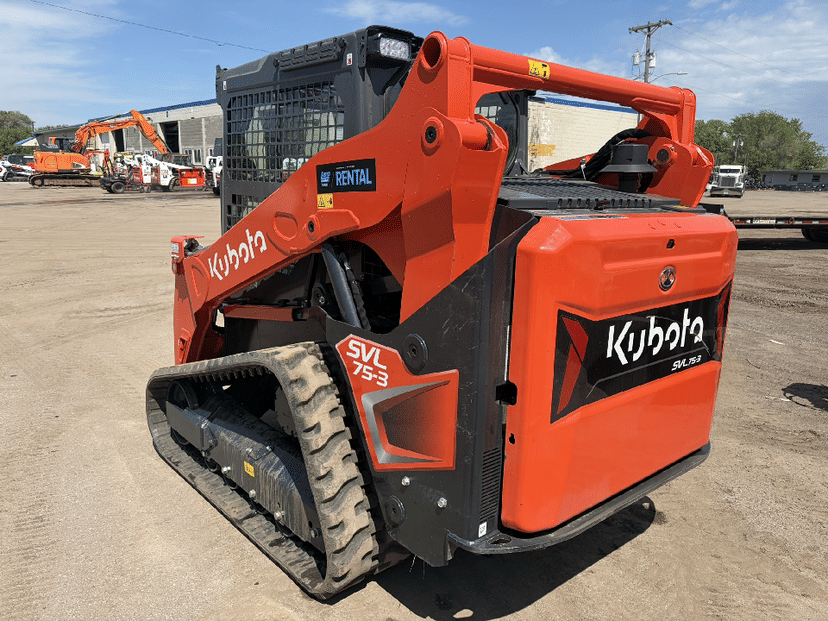

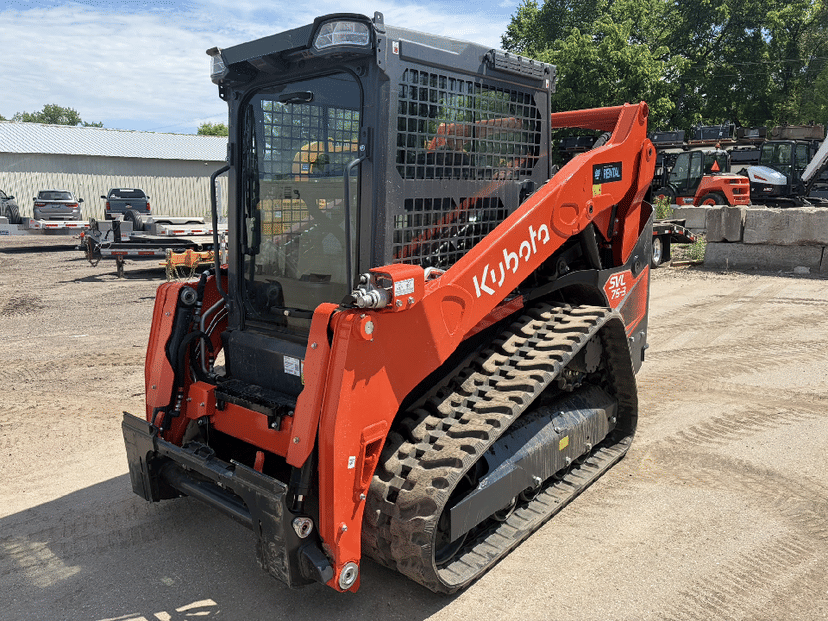

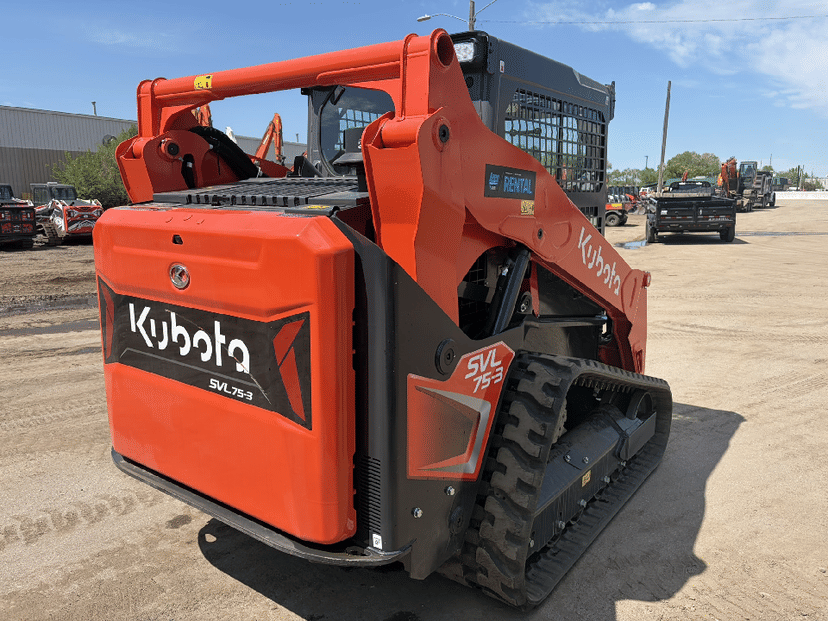

2025 Kubota SVL75-3HWCC

Description

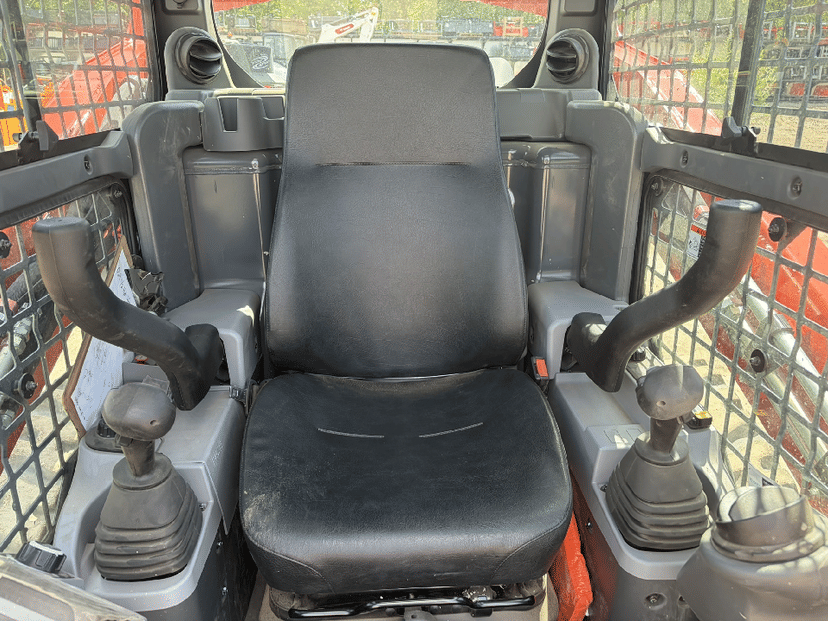

CTL-A/C Cab/Heat-Hyd QC-Cold Pkg-15" Track 2025 Kubota SVL75-3HWCC Compact Track Loader Brand: Kubota Model: SVL75-3HWCC Year: 2025 Type: Compact track loader Engine: Kubota V3307-TE5A Engine: 4-cylinder, turbocharged diesel Gross Horsepower: 71.6 HP @ 2,400 RPM Net Horsepower: 70.5 HP Displacement: 203.2 cu. in. (3,331 cc) Rated Operating Capacity: 2,490 lbs. @ 35% tipping load Rated Operating Capacity: 3,557 lbs. @ 50% tipping load Tipping Load: 7,112 lbs. Bucket Breakout Force: 6,191 lbs. Lift Arm Breakout Force: 4,723 lbs. Lift Arm Path: Vertical Operating Weight: Approximately 9,420 lbs. with closed cab Track Width: 12.6" standard / 15.8" wide Track Ground Contact Length: 56.5" Ground Clearance: 11.7" Travel Speed - Low: 5.6 MPH Travel Speed - High: 8.6 MPH Traction Force: 9,678 lbs. Auxiliary Hydraulic Flow: 19.2 GPM standard / 29.8 GPM high flow Auxiliary Hydraulic Pressure: 3,185 PSI Fuel Tank Capacity: 25 gallons Hydraulic System Capacity: 12.2 gallons Hydraulic Tank Capacity: 4.3 gallons Overall Length with Bucket: 142.1" Overall Length without Bucket: 112" Overall Height: 81.8" Overall Width: 65.9" standard track / 69.1" wide track Width with Bucket: 68" Hinge Pin Height: 122.7" Ground Pressure: 5.8-5.9 PSI standard tracks / 4.7-4.8 PSI wide tracks Operator Station: Closed cab Cab Features: Spacious operator area with sliding front door Controls: Advanced multi-function operation Rear-View Camera: Standard, with 176 degrees rearward visibility Display: 7" touchscre
