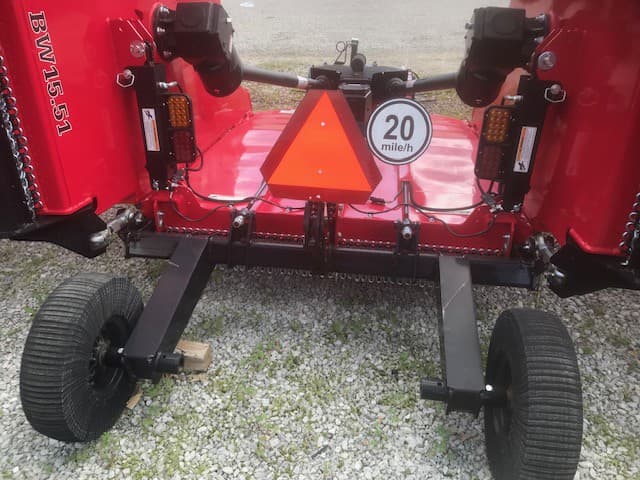

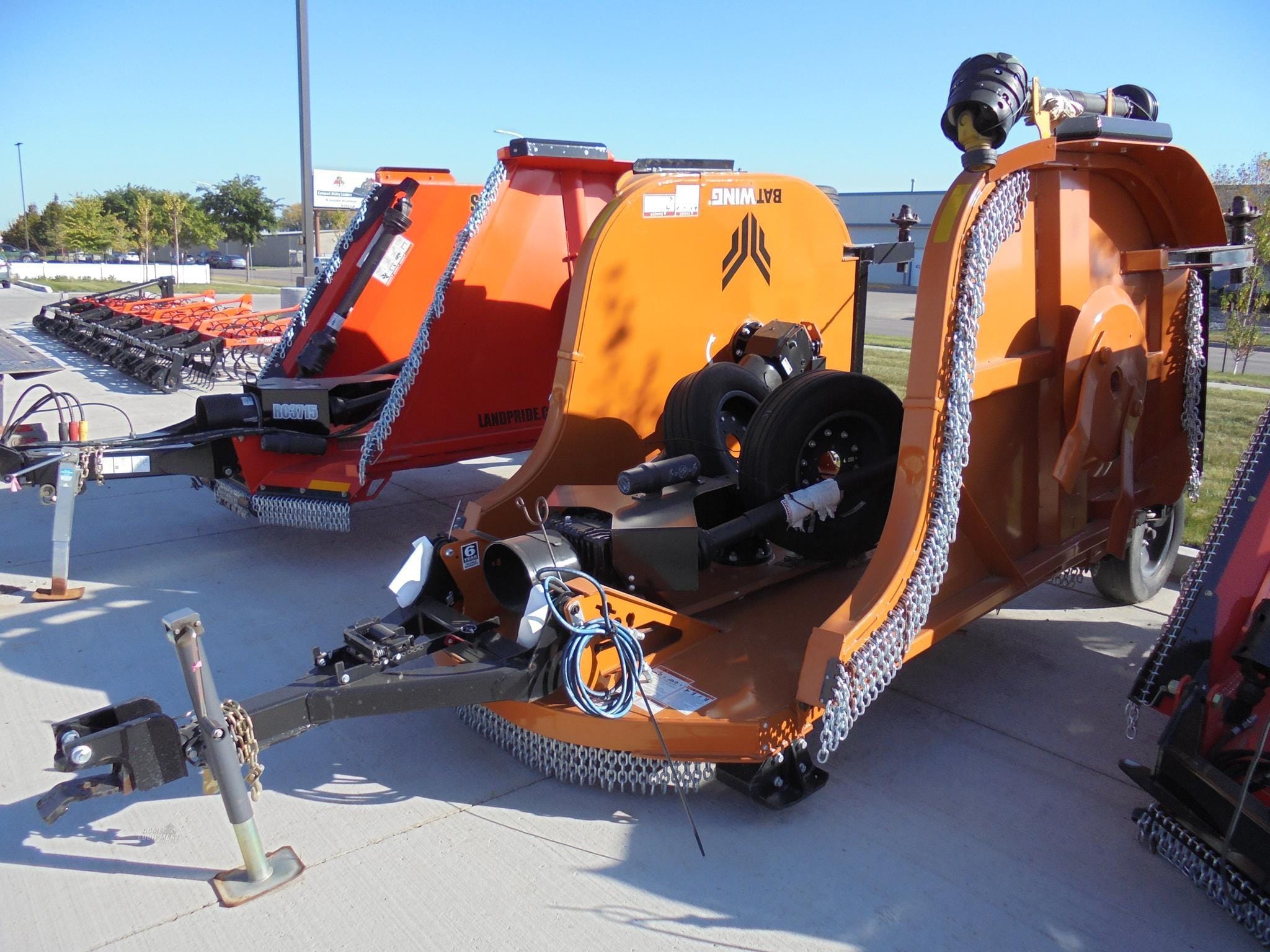

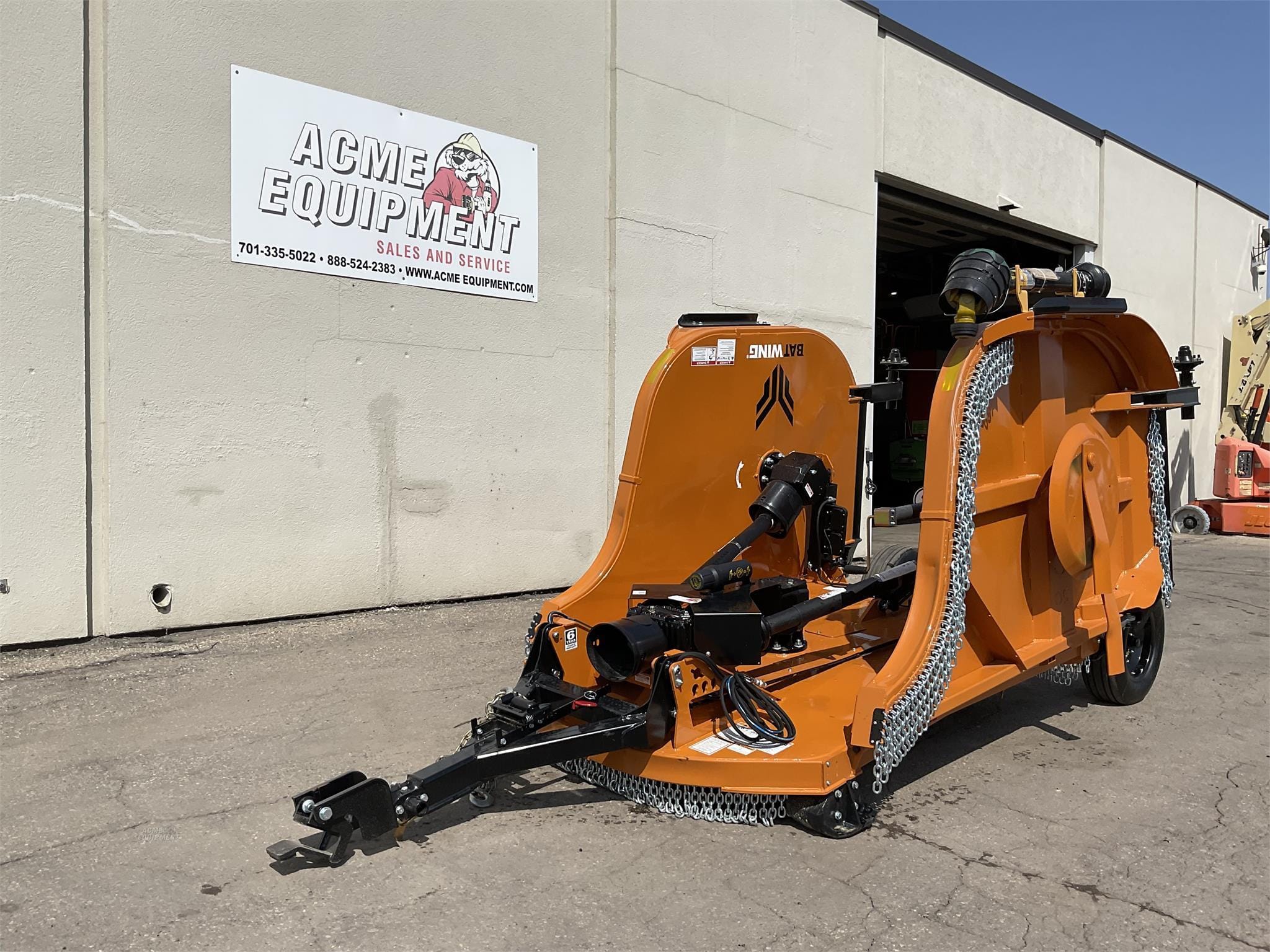

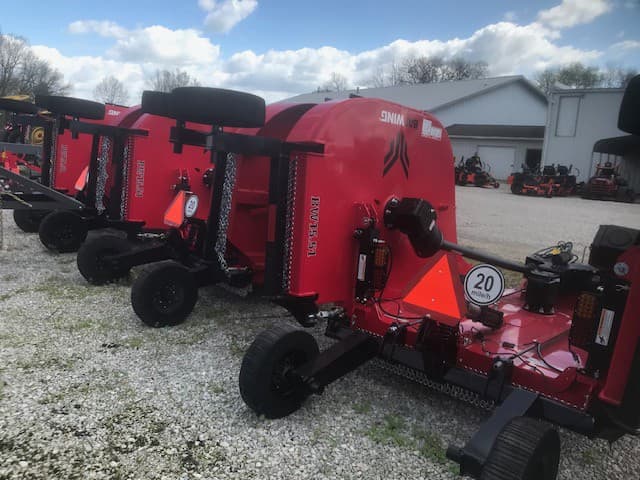

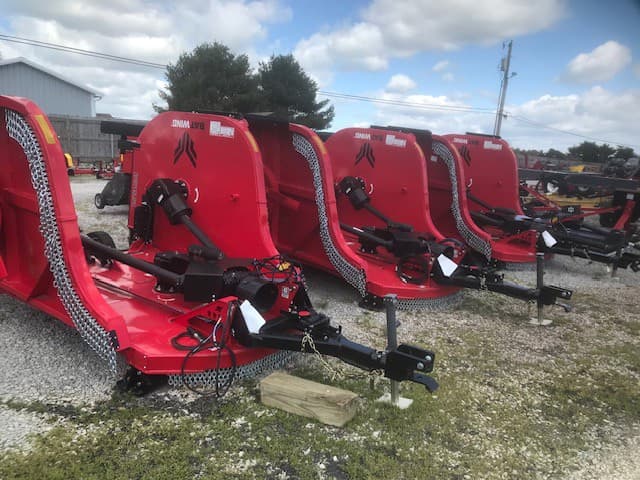

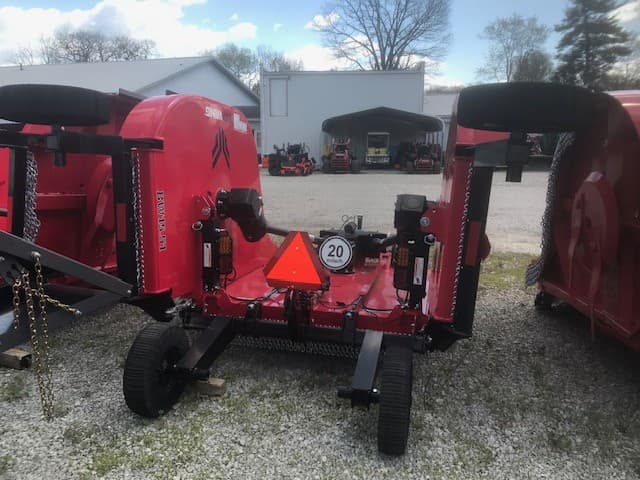

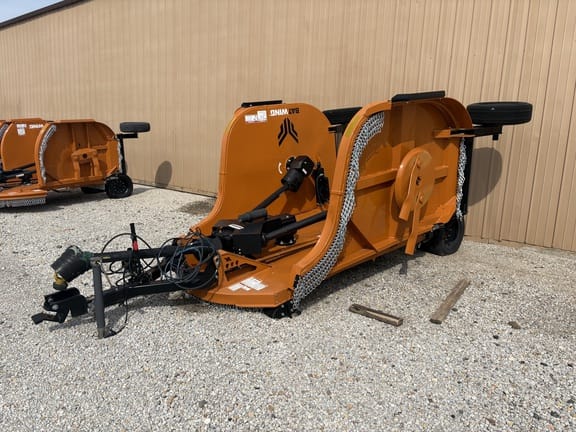

2024 Woods BW15.51

Description

Specifications Tractor PTO HP: 45-200 HP Hitch Type: Swivel clevis Cutting Height: 2 to 15 in. Cutting Capacity Diameter: 3 in. Cutting Width: 180 in. Blade Tip Speed (fpm): 15,000 at 540 rpm; 16,000 at 1,000 rpm Weight: 4,340lb. Deck Thickness: .135 (10 ga) in. Side Skirt Thickness: 0.25 in. Side Skirt Depth: 13 in. Transport Width: 96 in. Wing Flex Up/Down: 90 deg. up, 22 deg. down Driveline Rating: CAT 6 CV, CAT 4 wing Splitter/Wing Gearbox Rating: 210 HP / 200 HP *Gearbox horsepower ratings listed are based on field testing. Output Shaft Diameter: 2 in. Tongue Weight: 1,200lb. Wheel Options: 15 in. rims; 21 in. laminated; 25 in. severe-duty Ag; or 29 in. used aircraft Gearbox Warranty (yrs): 10 Options: Double row chain shielding; dual wheels; LED lights Suspension: Single spring on center wheel yoke Blade Overlap: 6 in. Blade Dimensions: .5 x 4 in. Cutting Area Shielding: Standard chain shielding Features Ideal for cutting tall grasses and saplings up to 3 in. in diameter Woods Exclusive SmartLift™ System does the heavy lifting for you by holding the weight of the driveline on your BW15 as you connect and disconnect to the tractor. Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact New gearbox seal technology reduces leaks and downtime A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine A 10-year gearbox warranty includes labor and seals under the Woods Cut
