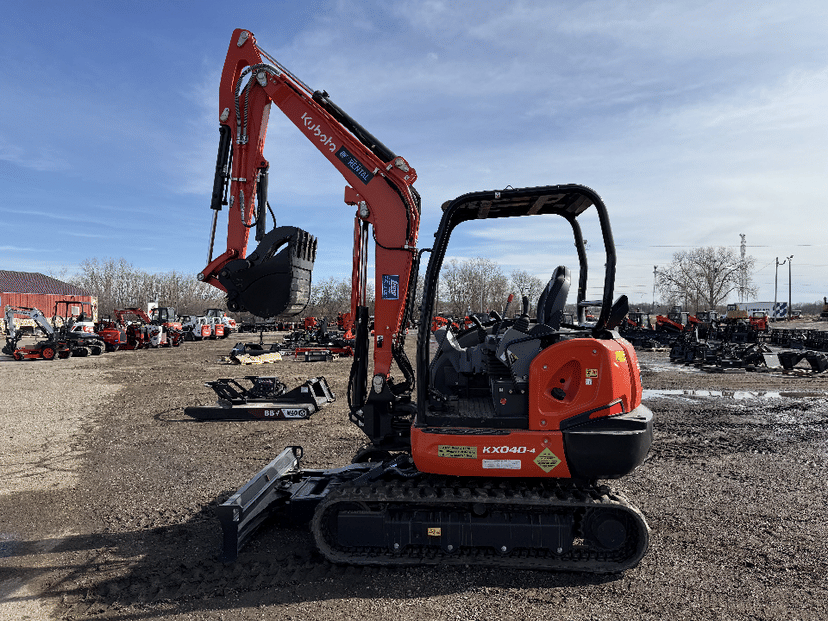

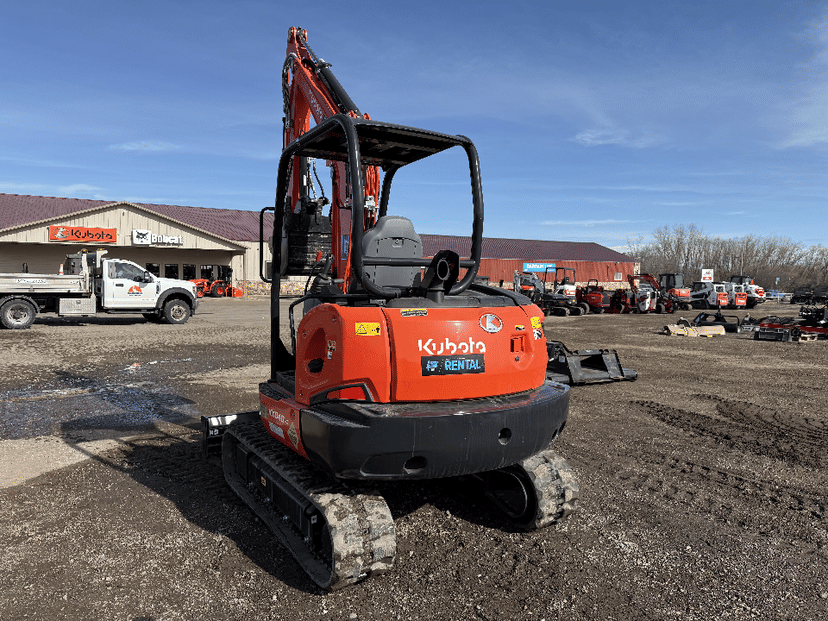

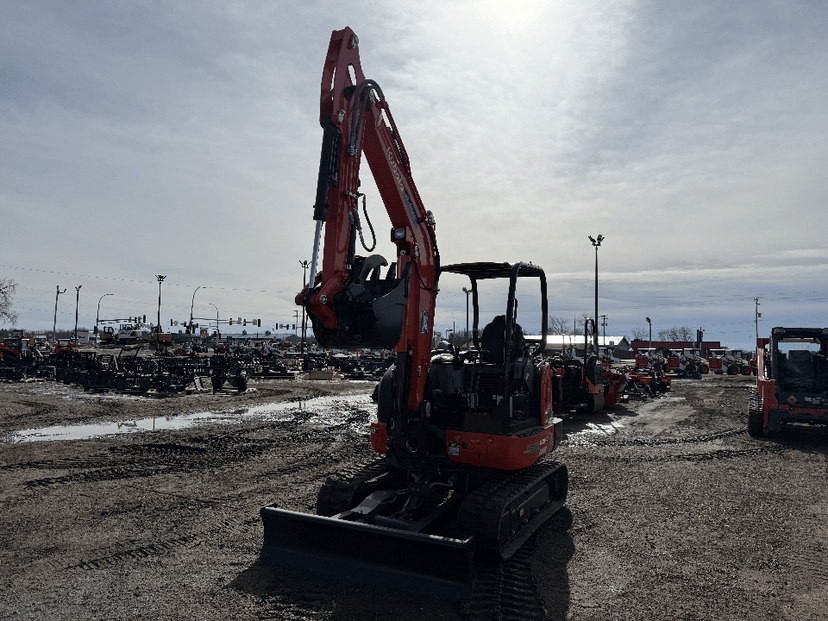

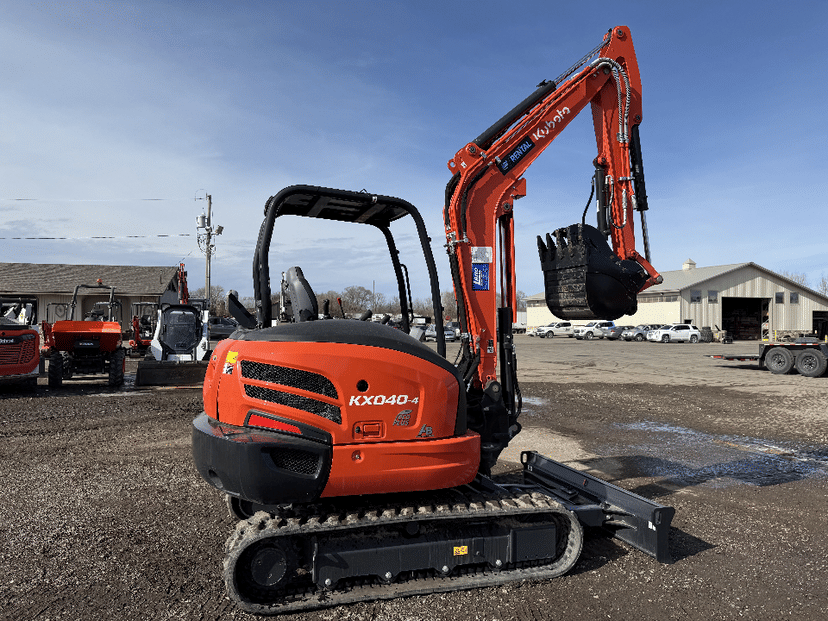

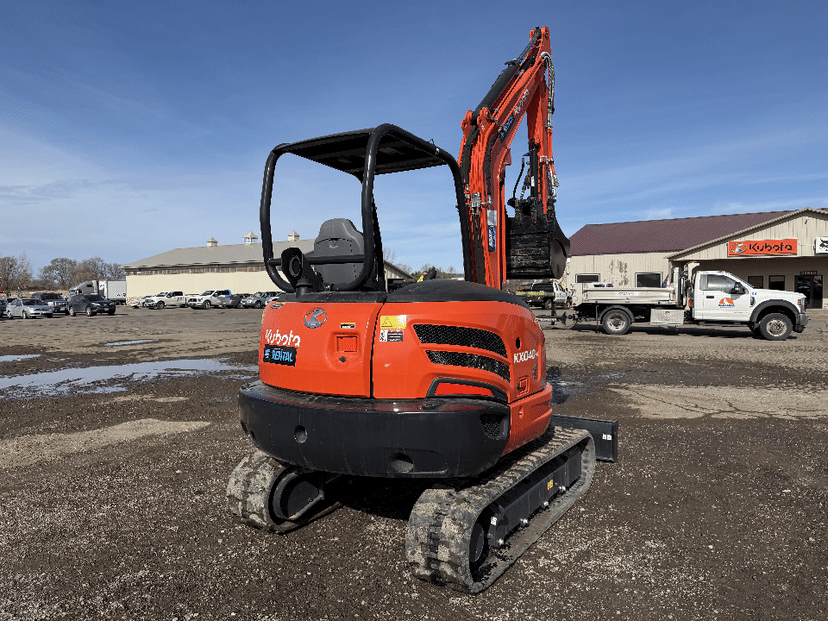

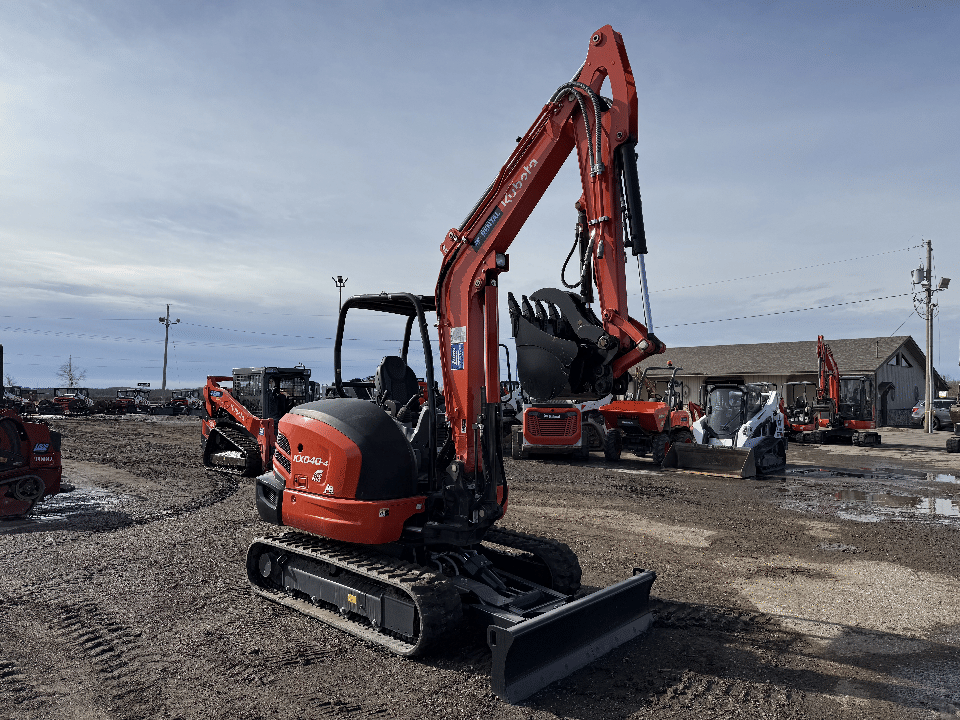

2023 Kubota KX040-4R1AP

Description

Mini Excavator-Rops-Angle Blade-Rubber Tracks Engine: Kubota D1803-CR-TE4 / Tier-4 diesel, 3-cylinder Gross Power: 40.4 hp Net Power: ~ 38.9 hp Operating Weight: ~ 9,195 lbs Maximum Digging Depth: 11′ 2.7″ (≈ 3.43 m) Maximum Vertical Wall Digging Depth: ~ 7′ 4.8″ (≈ 2.25 m) Maximum Dig Radius (at ground level): ~ 18′ 2″ (≈ 5.5 m) Maximum Dumping Height: ~ 12′ 9.5″ (≈ 3.89 m) Bucket Breakout Force: 9,535 lbs Arm (Dipper) Breakout Force: 4,112 lbs Auxiliary Hydraulics Flow: 17.2 GPM (aux 1) / 9.8 GPM (aux 2) (when configured with auxiliary hydraulic circuit) Hydraulic System Reservoir / Total System Capacity: ~ 11.1 gal / ~ 19.6 gal Travel Speed: ~ 3.1 mph (on rubber tracks) Ground Clearance: 12.99 in (330 mm) Overall Width: ~ 5′ 6.9″ (≈ 1700 mm) (standard track width) Overall Height (top of cab / ROPS): ~ 8′ 1.8″ (≈ 2485 mm) Design & Performance Features Compact Track Excavator Design: Rubber-track undercarriage and compact footprint for maneuverability in tight spaces and low-impact ground travel. Strong Performance for Size: Sufficient horsepower and breakout forces to handle digging, trenching, back-filling, and material handling tasks typical of 4-ton class excavators. Hydraulic Versatility: Auxiliary hydraulic flow allows use of attachments (e.g., thumbs, augers, breakers), increasing machine utility. Durable Engine & Hydraulics: Kubota D-series diesel with proven reliability; hydraulic circuit supports consistent performance under load. Good Digging & Dump Reach: Excavat
