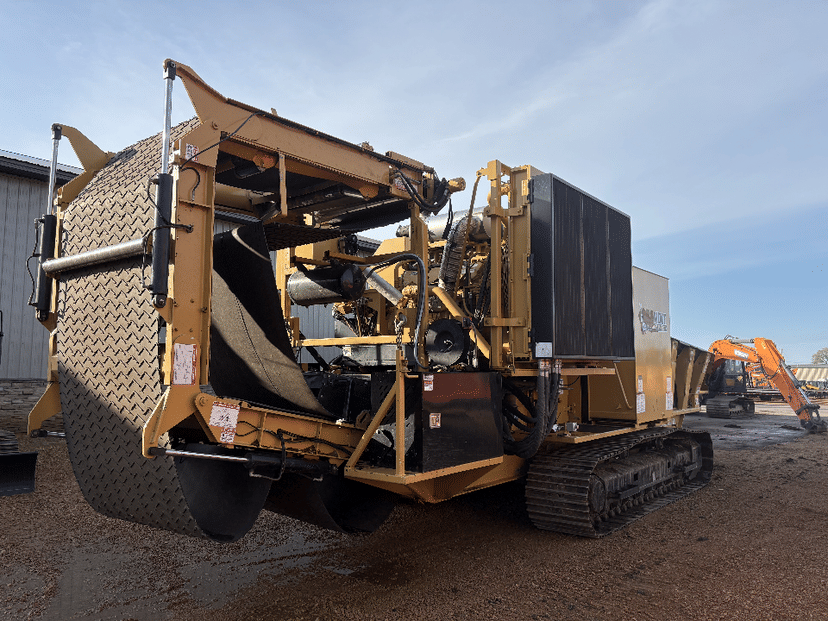

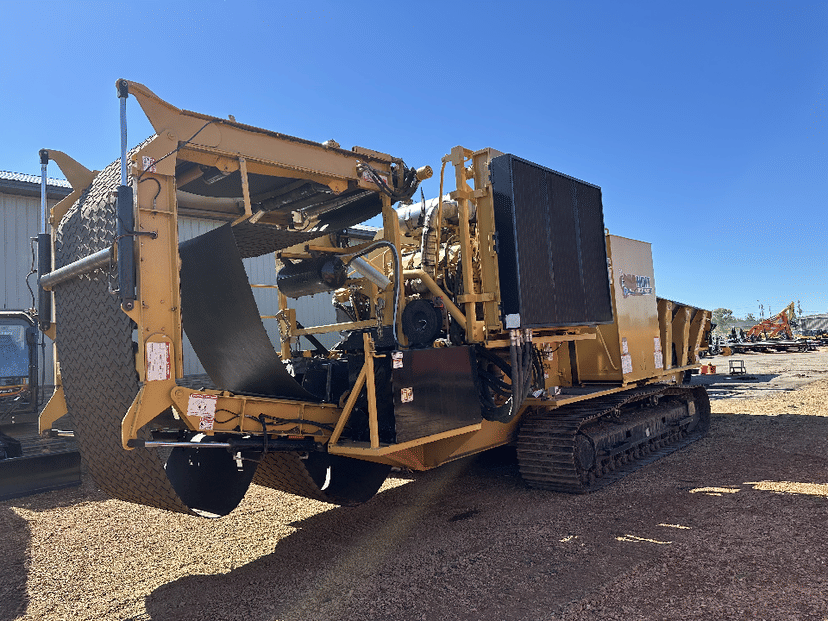

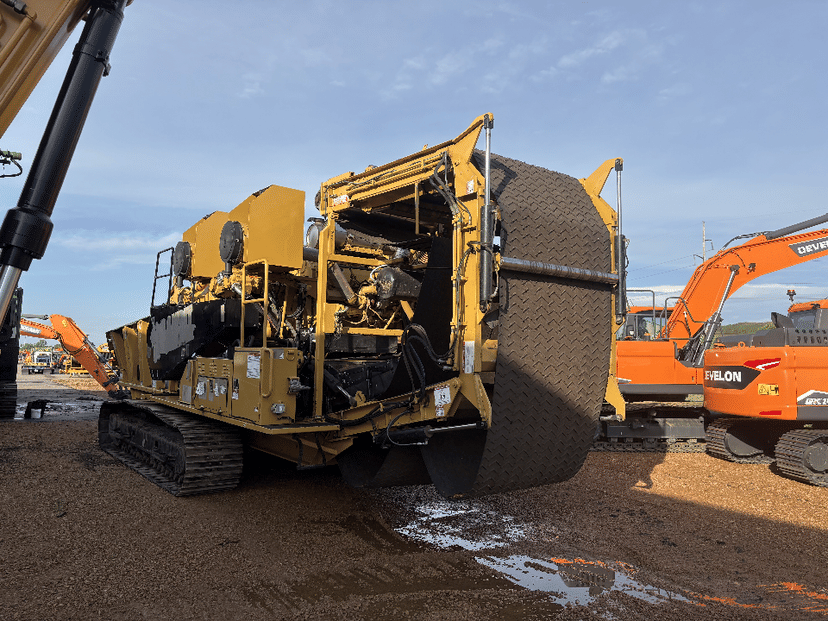

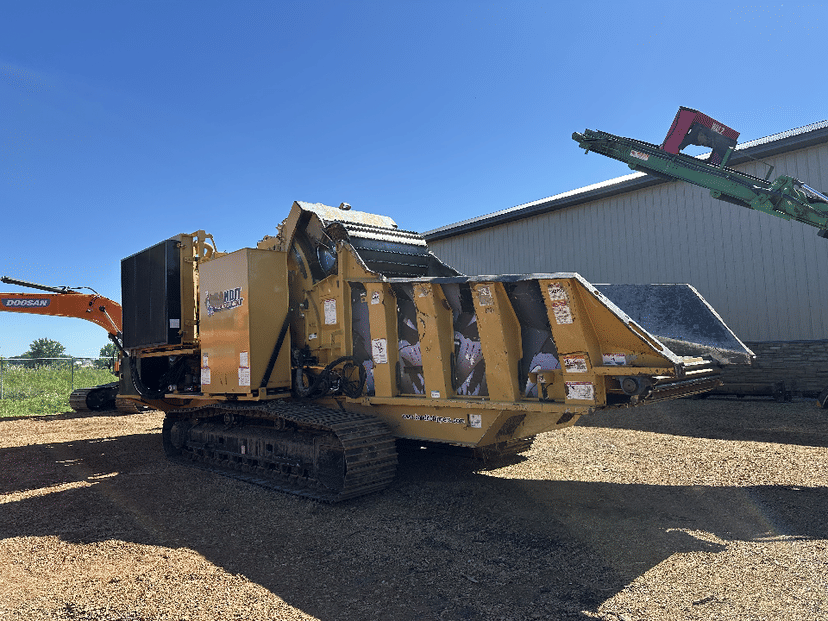

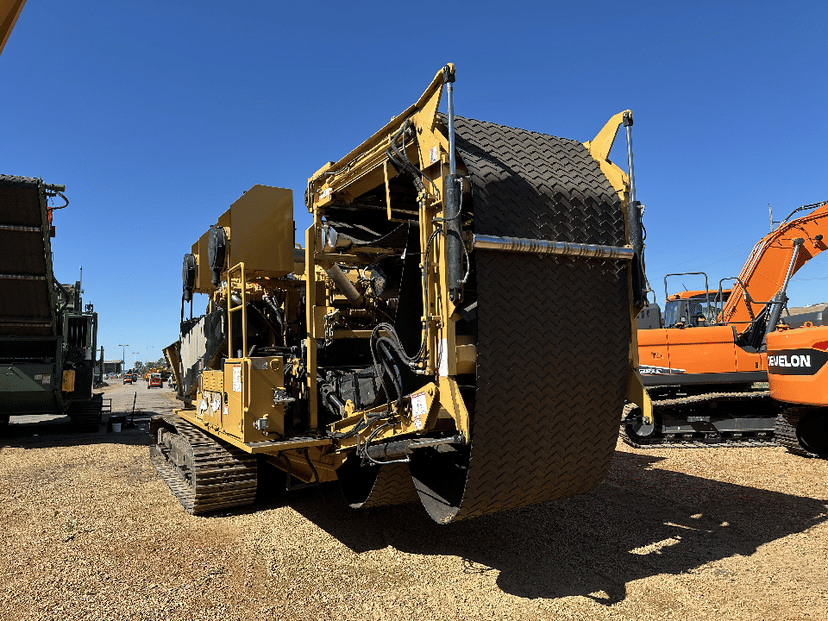

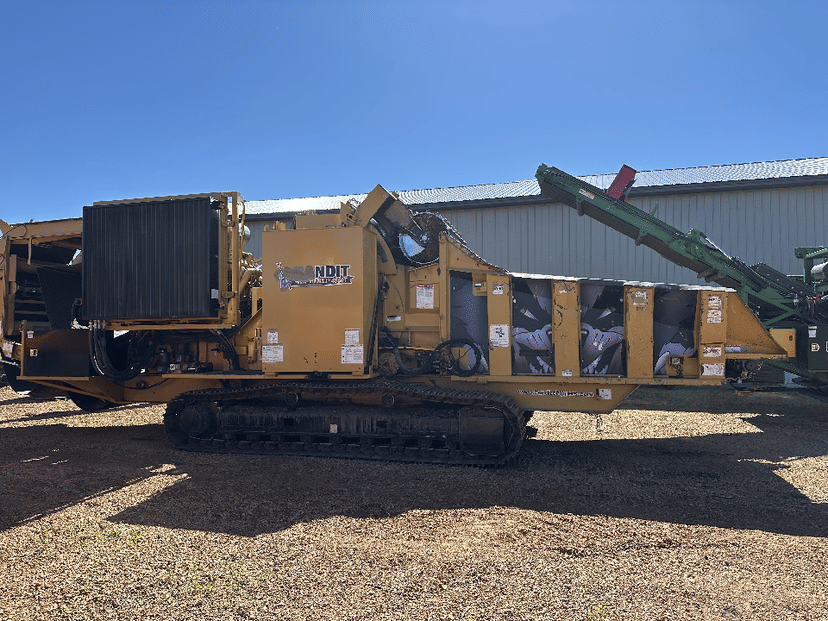

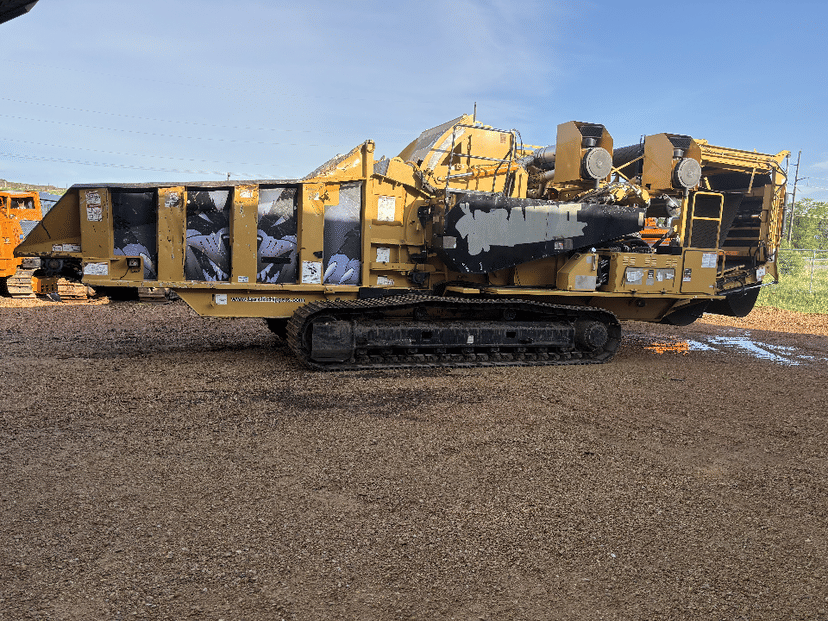

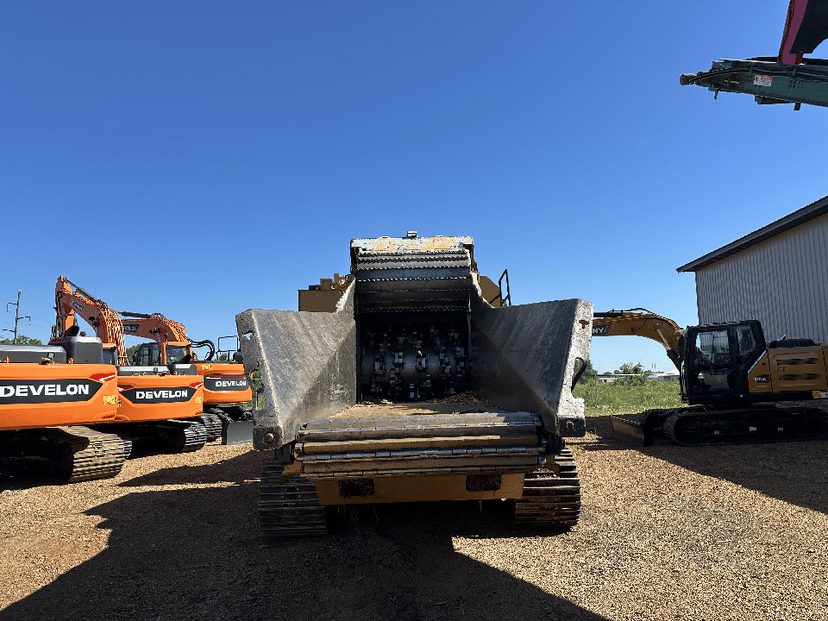

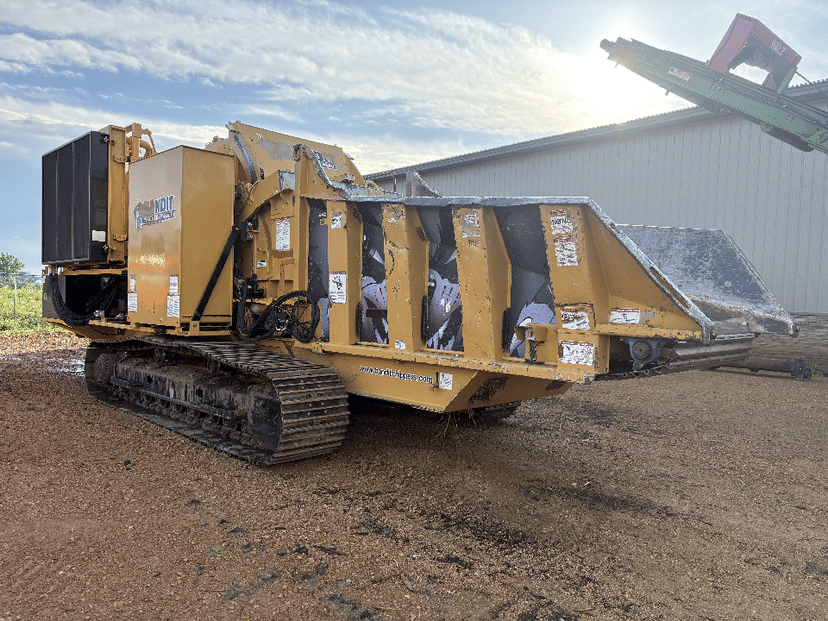

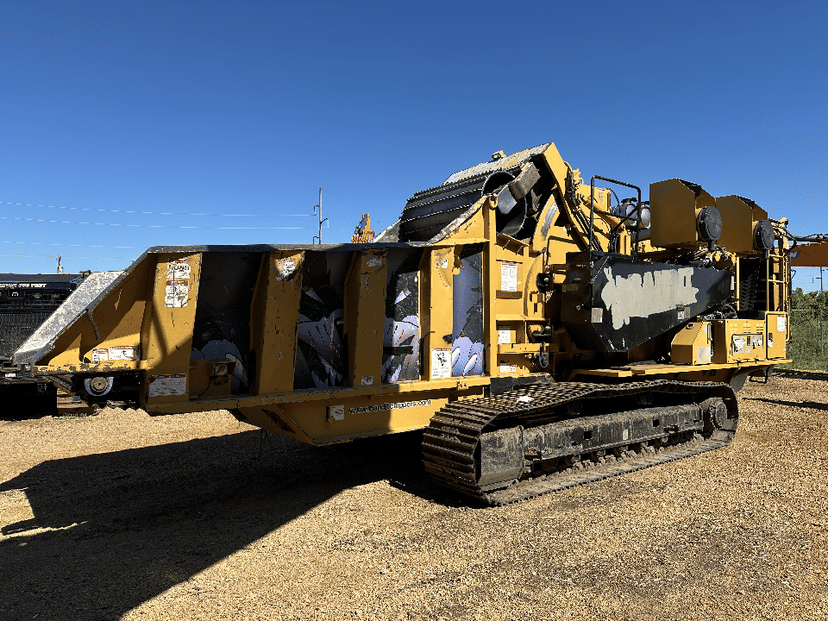

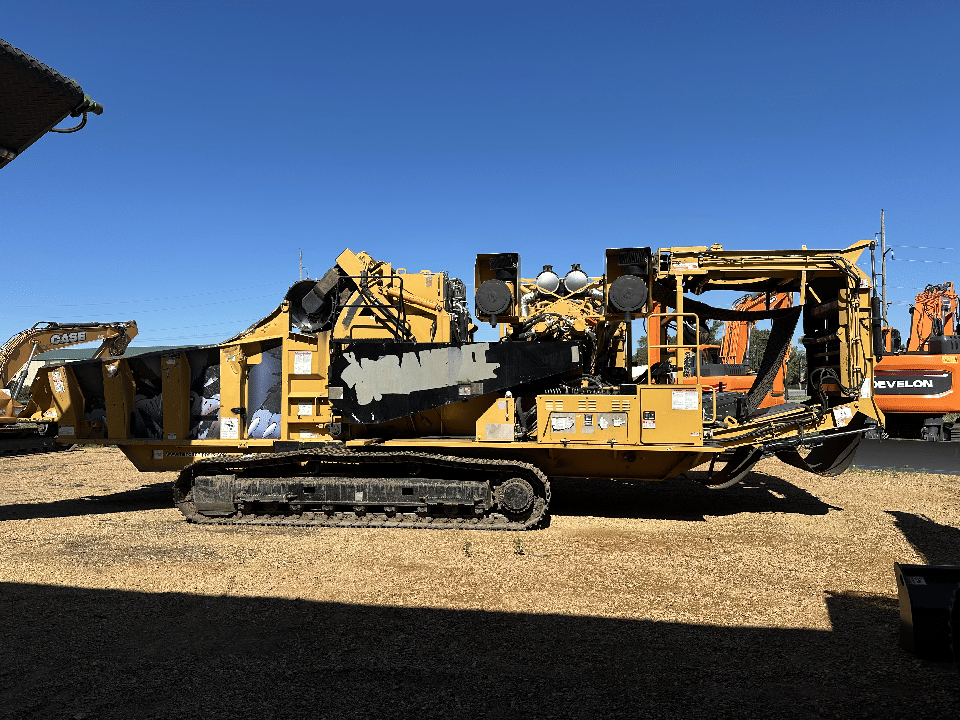

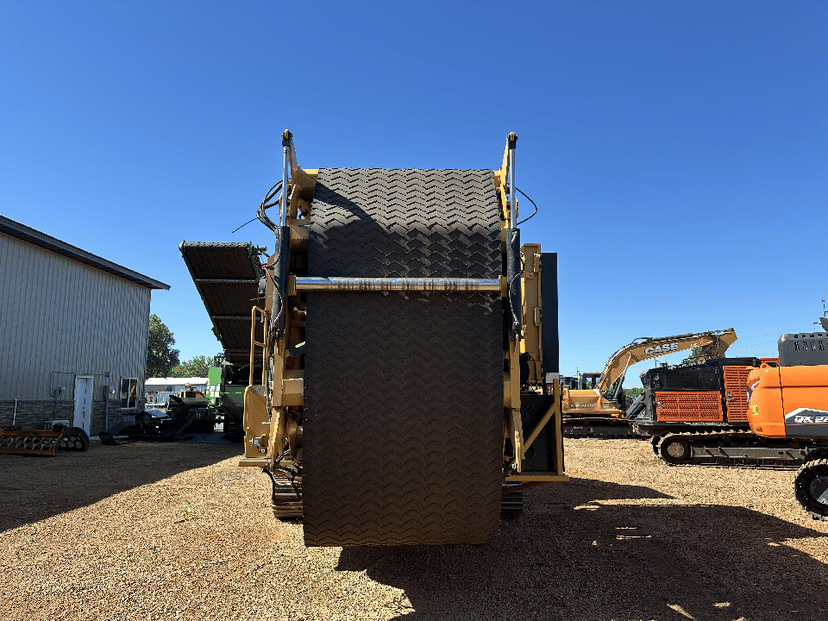

2020 Bandit 4680XP

Description

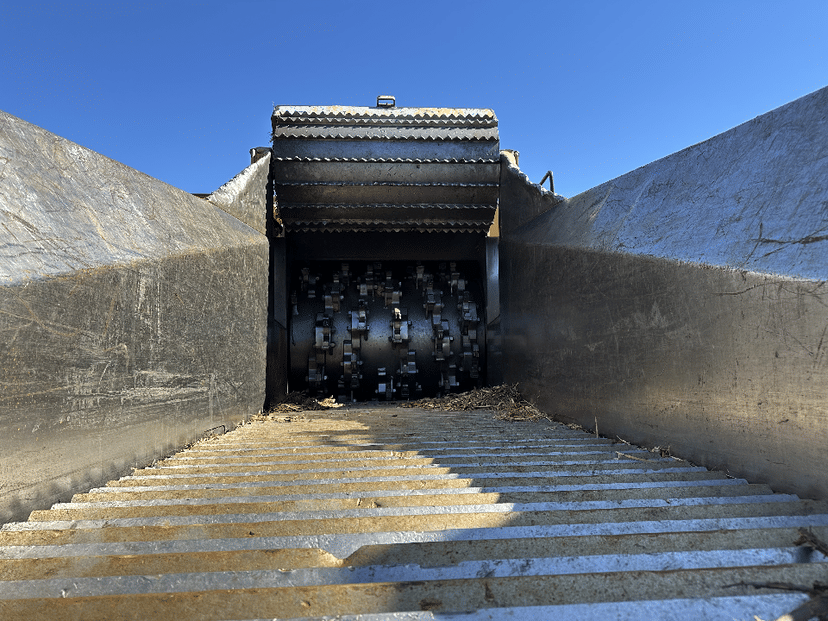

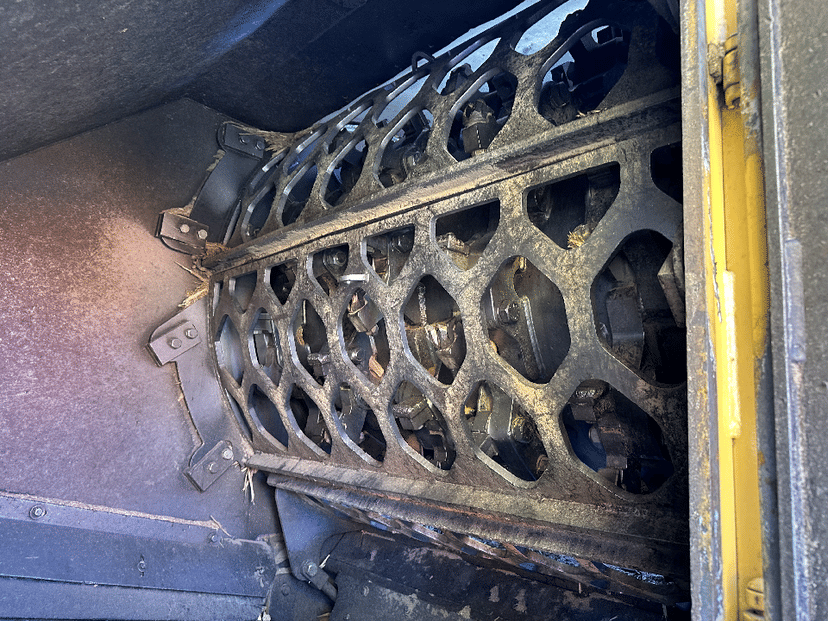

Grinder-Horizontal Feed-Track-45"x60"-1200 hp Cat 2020 Bandit 4680XP Horizontal Grinder Specs Model Information Model: 4680XP Track Manufacturer: Bandit Industries Type: Horizontal Grinder Year: 2020 Configuration: Track Mounted, 45" x 60" Mill Opening, 1,200 HP Cat Engine Series: Beast Horizontal Grinder Line Engine Engine Manufacturer: Caterpillar Engine Model: Cat C32 Gross Horsepower: 1,200 HP Fuel Type: Diesel Tier 4 Final emissions available Heavy-duty cooling package with reversing fan system Grinding System Grinding Capacity: 45 in diameter material Mill Opening: 45 in x 60 in Ctermill Diameter: Approximately 60 in Ctermill Width: 63 in Number of Teeth: 48 Designed for high-volume wood waste processing Processes logs, stumps, brush, pallets, and construction debris Production Capacity Production Rate: Approximately 500-800 cubic yards per hour Can process trees and logs nearly 4 ft in diameter High-volume mulch and biomass production capability Dimensions Length: Approximately 41 ft (492 in) Width: Approximately 11 ft 8 in (140 in) Height: Approximately 12 ft 8 in (152 in) Mill Opening: 45 in x 60 in Weight Operating Weight: Approximately 95,000-98,500 lb Heavy-duty steel construction for demanding grinding applications Fuel & Hydraulic Capacity Fuel Tank Capacity: 400 gallons Hydraulic Tank Capacity: 200 gallons Designed for extended run times between refueling Infeed System Infeed Conveyor Length: 16 ft 3 in Infeed Width: 60 in Heavy-duty steel slat conveyor WDH-120
