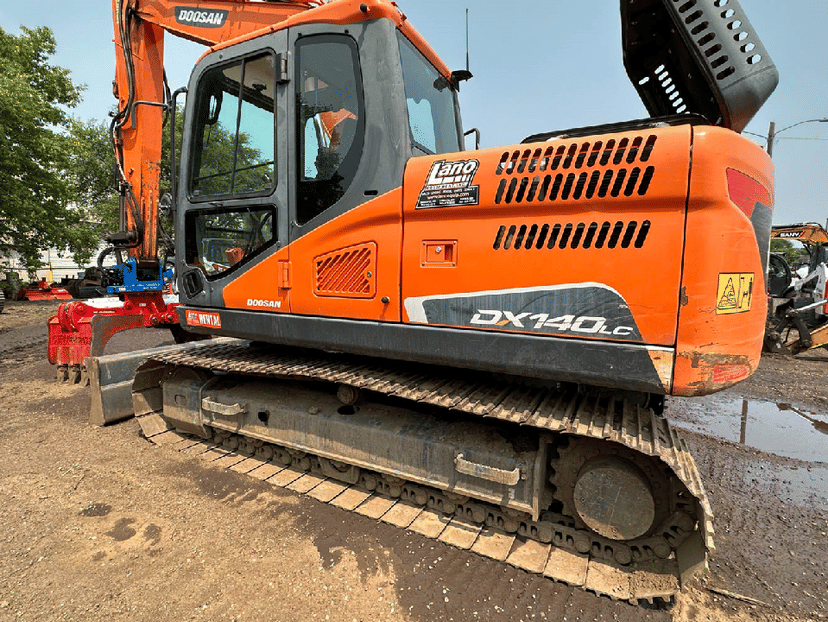

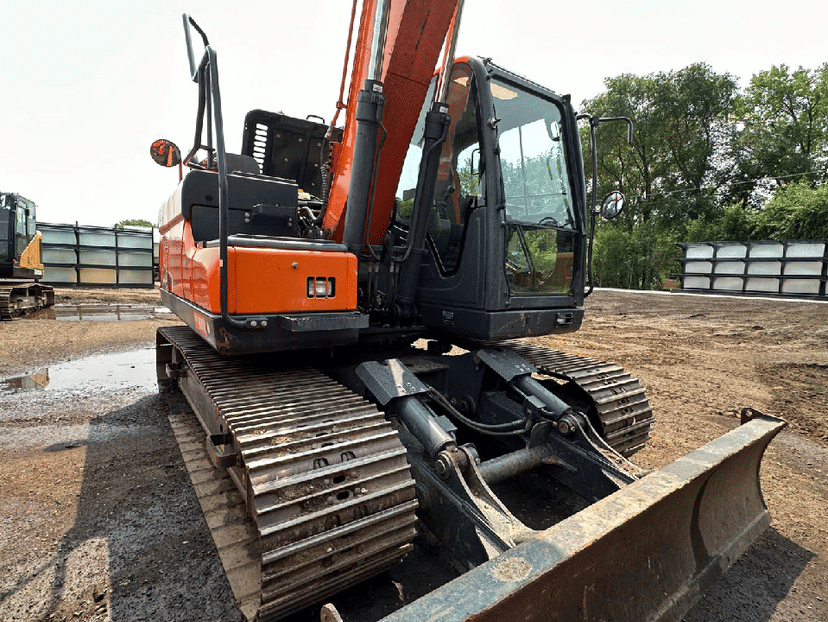

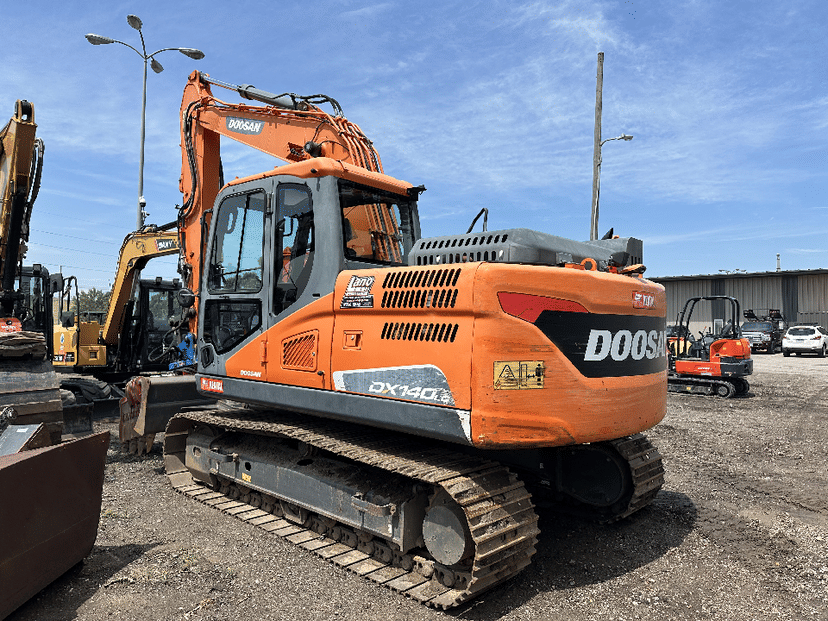

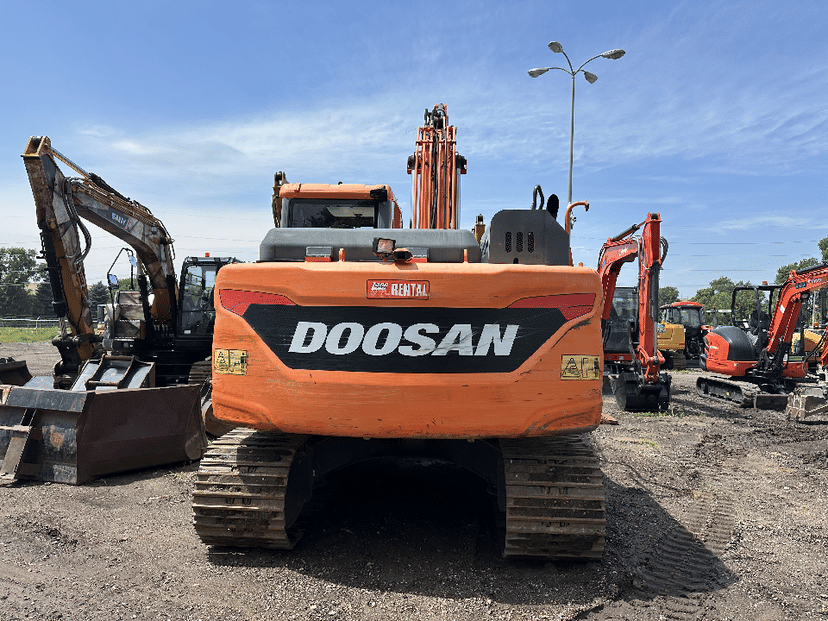

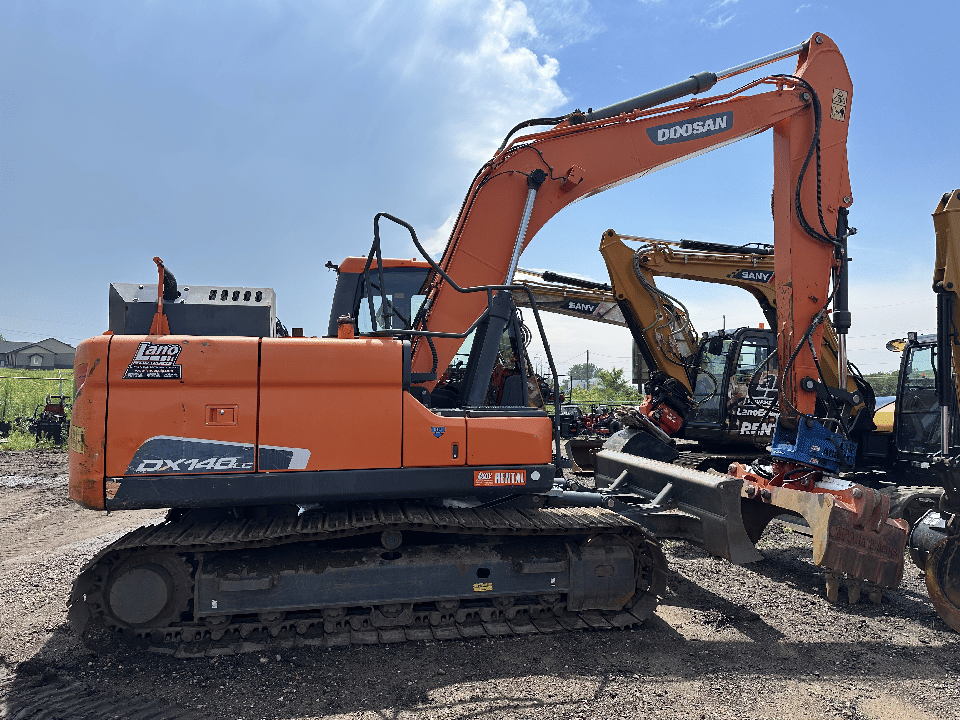

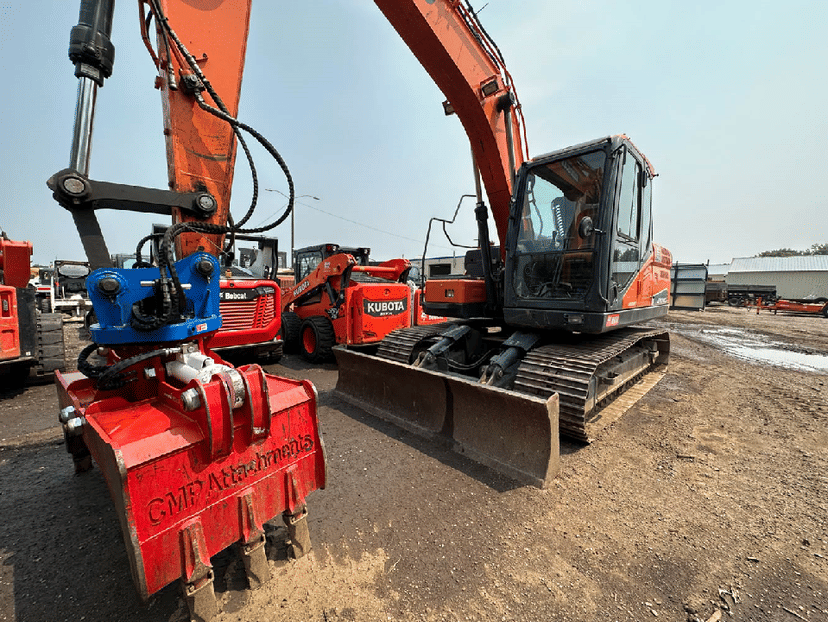

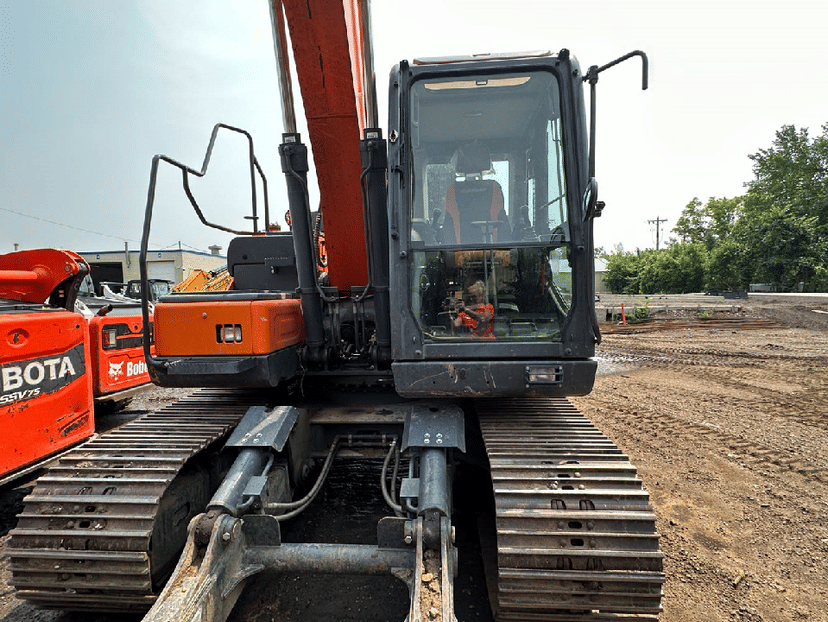

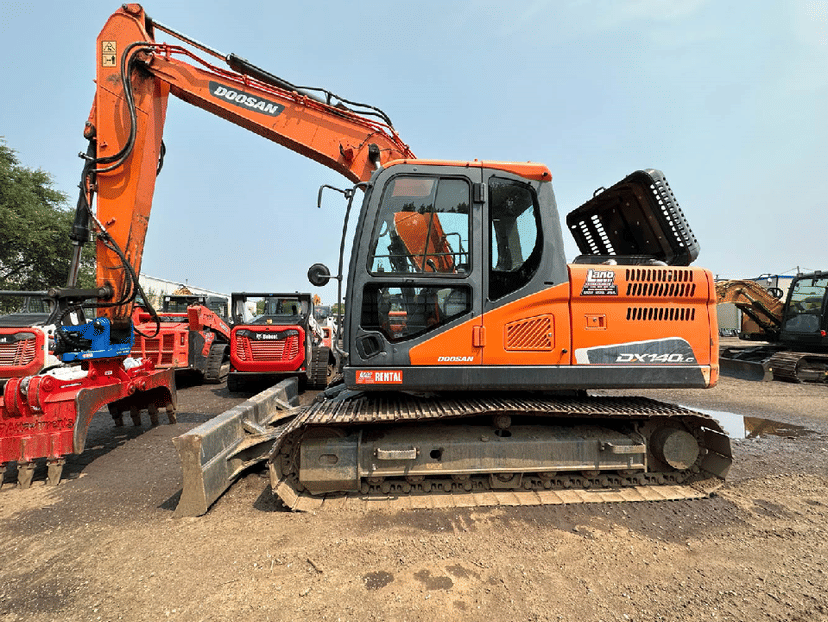

2017 Doosan DX140LC-5

Description

DOOSAN EXCAVATOR,CAB,A/C,BLADE,US40,PE3C Boom/Stick Option (Hex) 1 Shipping Length Of Unit 25.07ft in Shipping Height Of Unit 10.06ft in Max Loading Height 21.13ft in Max Vertical Wall Digging Depth 15.38ft in Max Digging Depth 20.13ft in Boom/Stick Option (Hex) 1 Boom 15\'1\"(4600 mm)/Arm 9\'10\"(3000mm) Max Digging Height 28.7ft in Max Digging Reach 28.4ft in Min Digging Reach 0.74ft in Minimum Swing Radius 103.35in Dimensions Tail Swing Radius 7.24ft in Counterweight Clearance 2.94ft in Track Shoe Width 1.97ft in Undercarriage Width 8.34ft in Undercarriage Number Of Bottom Rollers Per Side 7 Number Of Shoes Per Side 46 Number Of Top Rollers Per Side 1 Specifications Speeds High 3mph Low 1.8mph Electrical System Alternator 24 v, 85 amp Starter 24V Battery 12V, 100AH Engine Starter 6hp Number Of Cylinders 4 Engine Make Perkins Engine Model 1204F Net Power 113hp Gross Power 115hp Air Cleaner Double Elements Power Measured @ 2000rpm Max Torque 1301.1lb ft Displacement 268.6cu in Torque Measured @ 1400rpm Bore 4.2in Stroke 5in Operational Def Tank Capacity 5gal Operating Weight 32783lb Fuel Capacity 70gal Cooling System Fluid Capacity 6.6gal Hydraulic System Fluid Capacity 45gal Final Drive Fluid Capacity - Each 0.6gal Engine Oil Capacity 2.1gal Swing Drive Fluid Capacity 0.8gal Hydraulic System Relief Valve Pressure 5.4psi Hydraulic Tank 39.7gal Performance Travel-Normal Mode 4694psi Travel-Power Mode 4978psi Swing - Normal Mode 4694psi Swing-Power Mode 4978psi Traction Force
