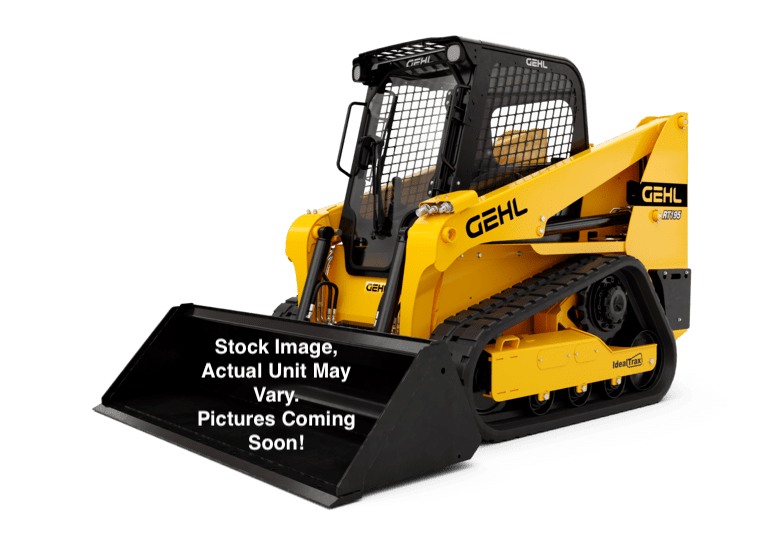

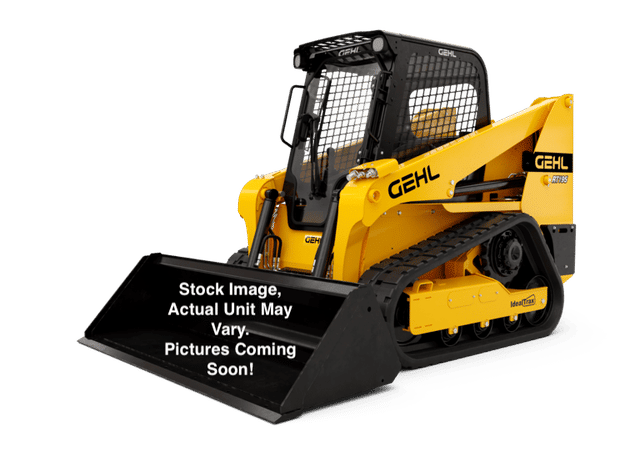

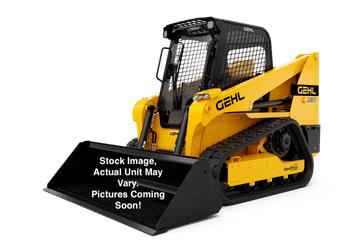

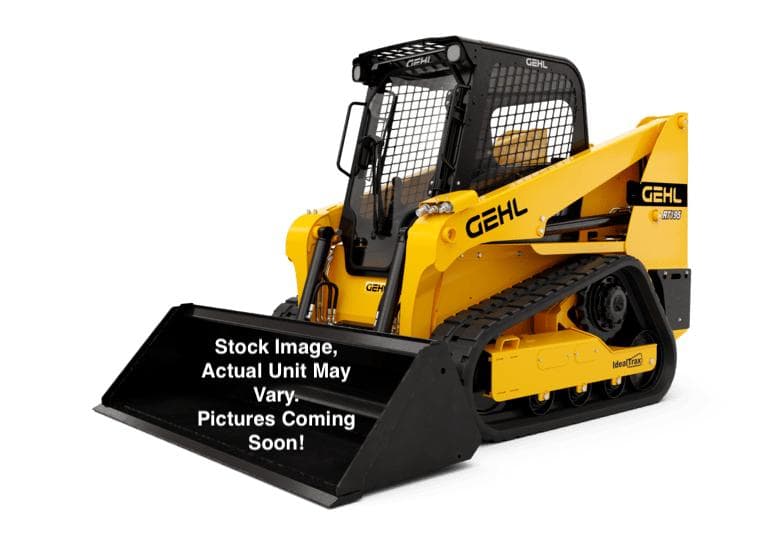

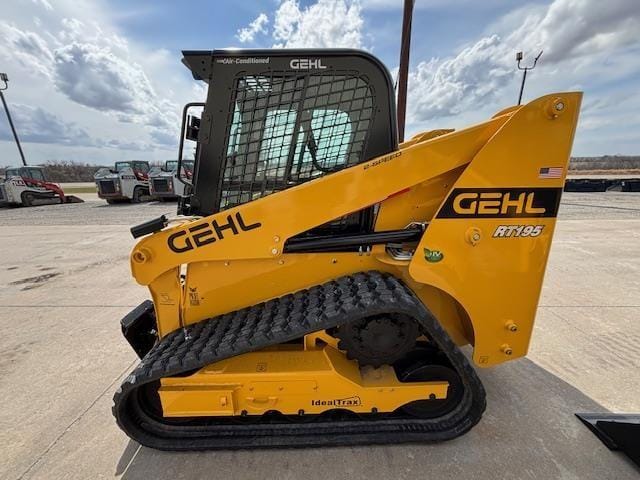

2025 Gehl RT195

Description

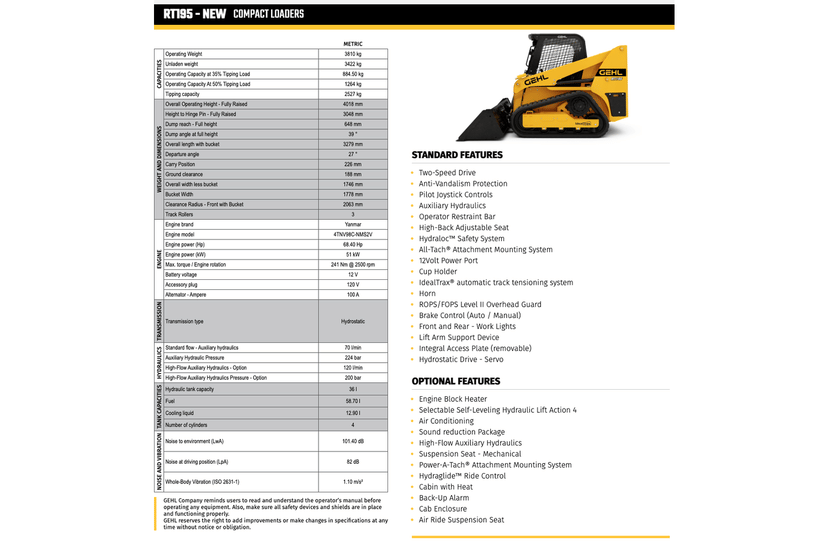

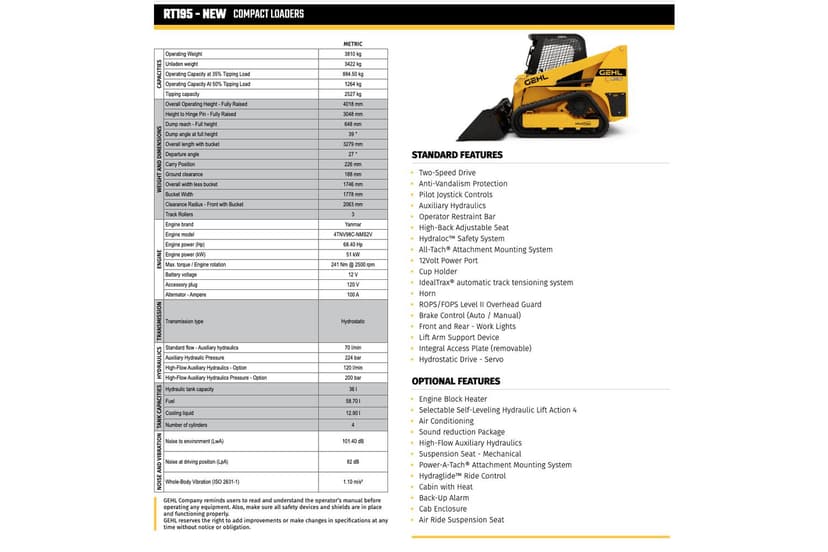

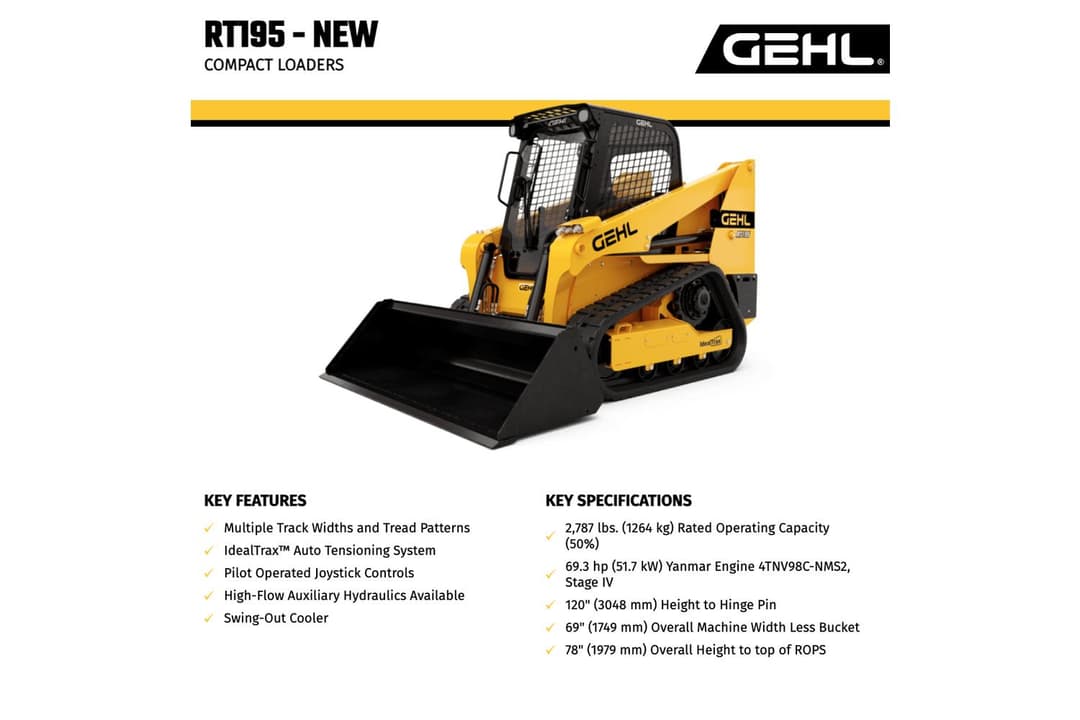

RT195 COMPACT LOADERS Capacities Operating Weight: 8150 lb. Unladen weight: 7544 lb. Operating Capacity at 35% Tipping Load: 1950 lb. Operating Capacity At 50% Tipping Load: 2787 lb. Operating capacity at 35% tipping load with counterweight: 2050 lb. Tipping capacity: 5571 lb. Weight and dimensions Overall Operating Height - Fully Raised: 158 in. Height to Hinge Pin - Fully Raised: 120 in. Dump reach - Full height: 26 in. Dump angle at full height: 39 deg. Overall Height to top of ROPS: 78 in. Overall length with bucket: 129 in. Departure angle: 27 deg. Ground clearance: 7 in. Overall width less bucket: 69 in. Bucket Width: 70 in. Clearance Radius - Front with Bucket: 81 in. Clearance Circle - Rear: 59 in. Engine Engine brand: Yanmar Engine model: 4TNV98C-NMS2V Gross Power: 51.70 kW Net Power: 51 kW Max. torque / Engine rotation: 178 ft./lb. @ 2500 RPM I.C. Engine power rating - Power: 68.40 HP / 51 kW Battery voltage: 12 V Accessory plug: 120 V Alternator - Ampere: 100 A Hydraulics Standard flow - Auxiliary hydraulics: 19 US gpm Auxiliary Hydraulic Pressure: 5511 PSI High-Flow Auxiliary Hydraulics - Option: 30 US gpm High-Flow Auxiliary Hydraulics Pressure - Option: 6092 PSI Noise and vibration Noise to environment (LwA): 101.40 dB Noise at driving position (LpA): 82 dB Whole-Body Vibration (ISO 2631-1): 4 ft/s² Transmission Transmission type: Hydrostatic Tank capacities Hydraulic oil tank capacity: 10 US gal. Fuel tank: 16 US gal. Coolant system capacity: 3 US gal. Displ
