2025 Kubota SVL75-3HWCC

Description

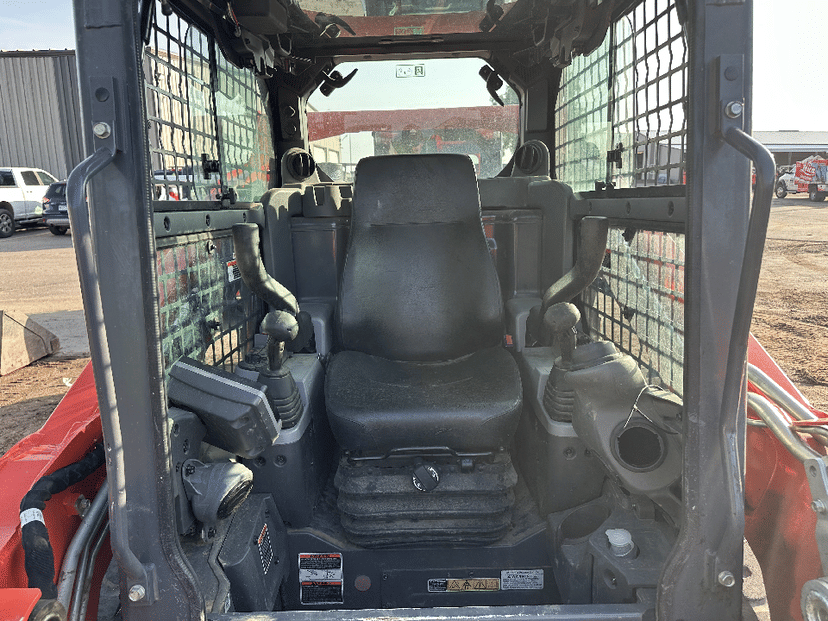

CTL-A/C Cab/Heat-Hyd QC-Cold Pk-15 Track 2025 Kubota SVL75-3HWCC Compact Track Loader – A/C Cab – Heat – Hydraulic Quick Coupler – Cold Package – 15" Tracks Specs General Category: Compact Track Loader Model: Kubota SVL75-3HWCC Lift Style: Vertical lift path Operator Station: Enclosed cab with heat & air conditioning Controls: Hydraulic pilot controls with adjustable response settings Attachment Coupler: Hydraulic quick coupler Track Configuration: 15.8" wide tracks for improved flotation and reduced ground pressure Cold Weather Package: Designed for improved operation in low-temperature conditions Emissions: Tier 4 Final diesel engine Engine Engine Model: Kubota V3307-TE5A Diesel Horsepower: 74.3 HP gross Net Horsepower: 73.2 HP Displacement: 203.2 cu. in. (3.331 L) Cylinders: 4 Aspiration: Turbocharged Fuel System: Direct injection diesel Loader Performance Rated Operating Capacity (50% Tipping Load): 3,557 lbs. Rated Operating Capacity (35% Tipping Load): 2,490 lbs. Tipping Load: 7,112 lbs. Bucket Breakout Force: 6,191 lbs. Lift Arm Breakout Force: 4,723 lbs. Lift Arm Design: Vertical lift path for increased reach and truck loading performance Maximum Hinge Pin Height: 122.7 in. Hydraulic System Auxiliary Hydraulic Flow (Standard): 19.2 GPM Auxiliary Hydraulic Flow (High Flow): 29.8 GPM Auxiliary Hydraulic Pressure: 3,185 PSI Hydraulic Quick Coupler: Allows attachment changes from the operator station High-Flow Capability: Supports demanding attachments including mulchers,
