2025 Dutchman 360I-4

Description

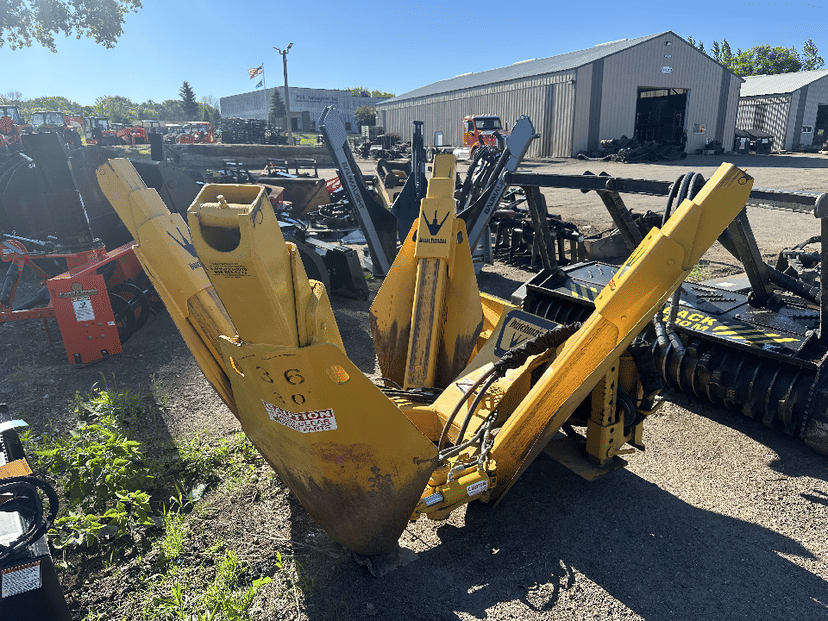

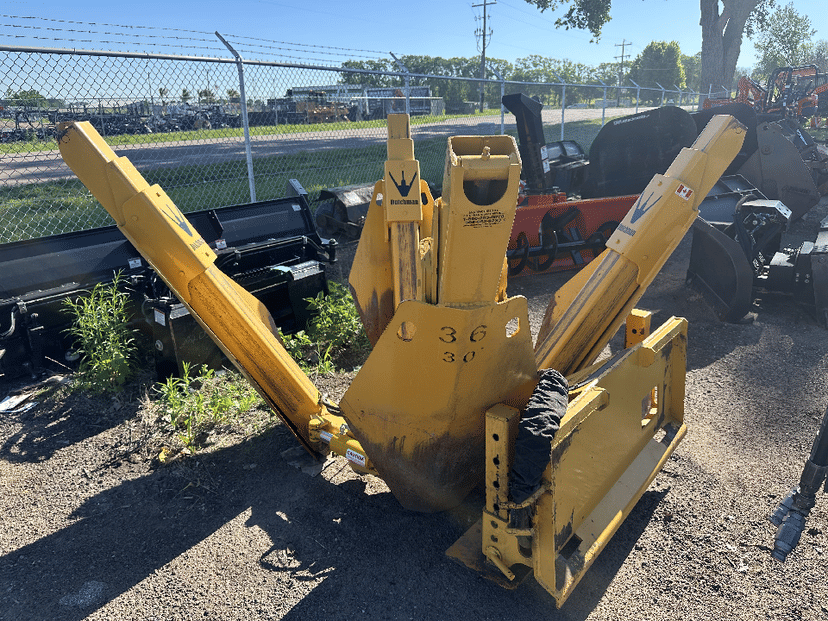

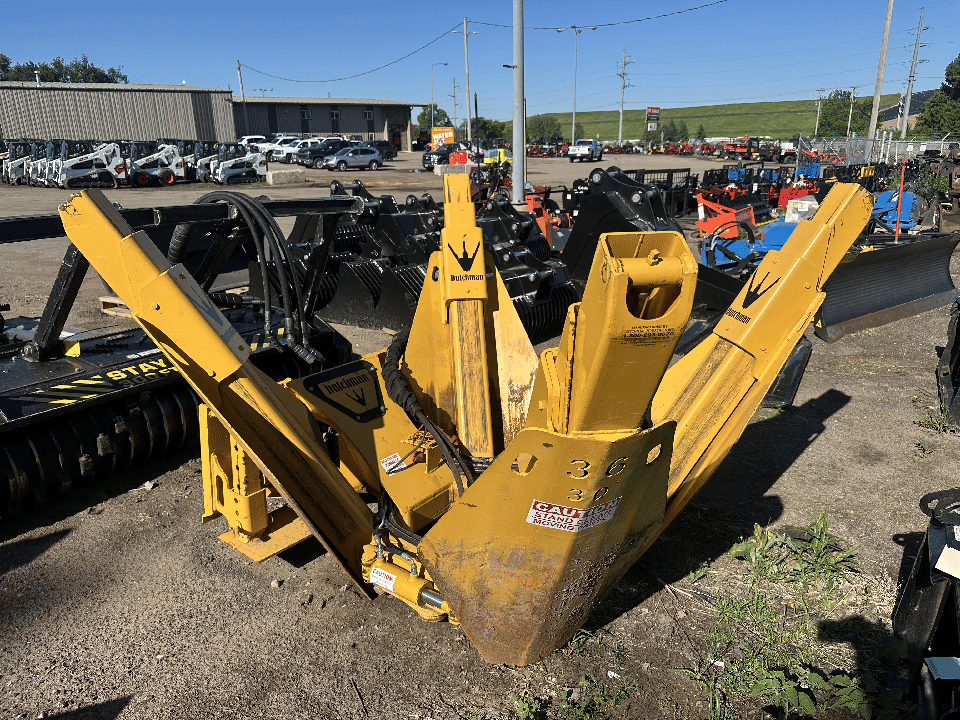

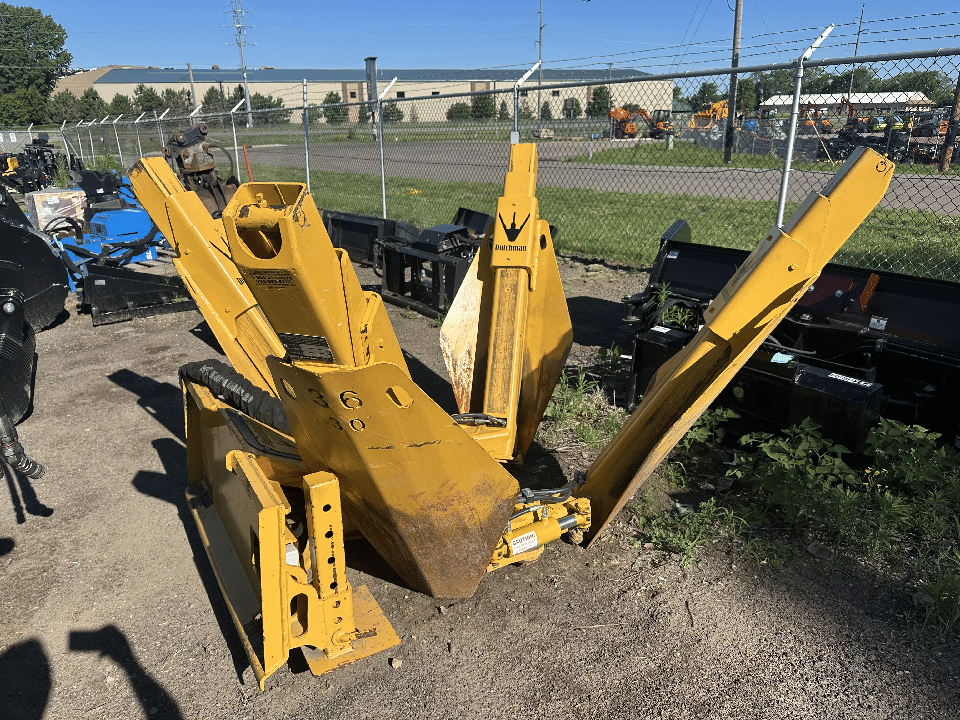

360I-4 Tree Spade-Br38-7 Valve-30 Degree-CB/PG 2025 Dutchman 360I-4 Tree Spade Specs Model Information Model: 360I-4 Manufacturer: Dutchman Industries Type: 4-Blade Tree Spade Year: 2025 Configuration: 30 degrees Coned Root Ball Design Control Package: BR38-7 Valve Package Mount Style: CB/PG (Compact Loader Mount Configuration) Frame Style: Inside Frame, 4-Blade Design Tree & Root Ball Capacity Nominal Root Ball Diameter: 36 in Adjustable Digging Diameter: Approximately 38" down to 24" Maximum Trunk Diameter: Approximately 4-5 in Ideal for shade trees up to approximately 3.5" caliper Suitable for conifer trees up to approximately 10 ft tall Root Ball Specifications Root Ball Diameter Range: 38"-24" Lower Root Ball Diameter: Approximately 7-9 in Root Ball Depth: Approximately 25.5 in Root Ball Volume: Approximately 12.5 cu ft Designed to produce an optimum fill in a 36" basket Dimensions Overall Length: Approximately 107.5 in Working Width (Closed): Approximately 67.6 in Working Width (Open): Approximately 74.5 in Working Height (Blades Up): Approximately 72 in Open Gate Clearance: Approximately 24.5 in Compact inside-frame design for maneuverability in nurseries and landscaping applications Weight Machine Weight: Approximately 1,800 lb Root Ball Capacity: Approximately 1,100 lb Designed for mid-size skid steers and compact track loaders Blade System Four-blade configuration 30-degree coned blade design Nearly closed root ball bottom for maximum soil retention Excellent penetr
