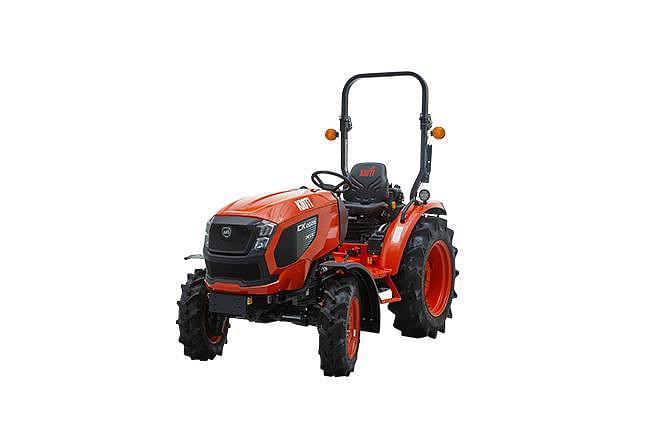

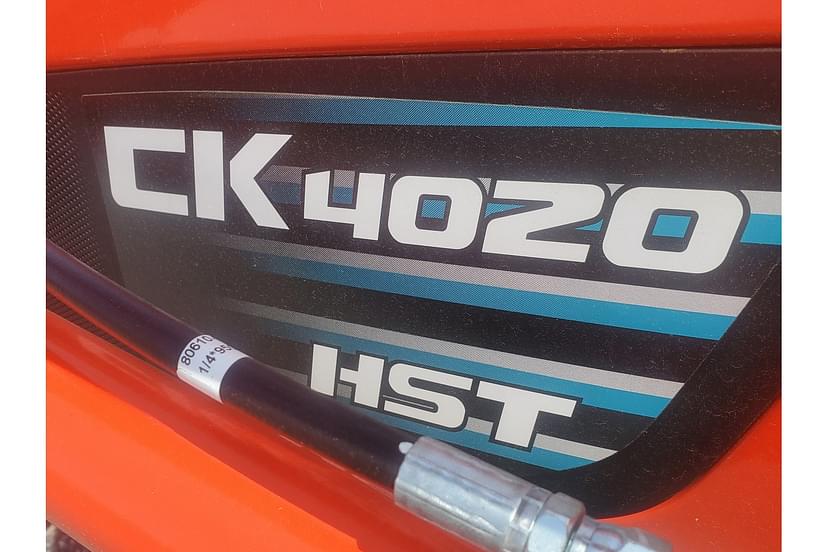

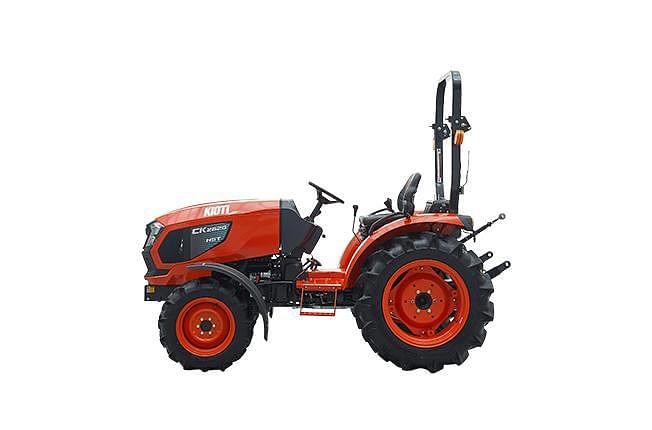

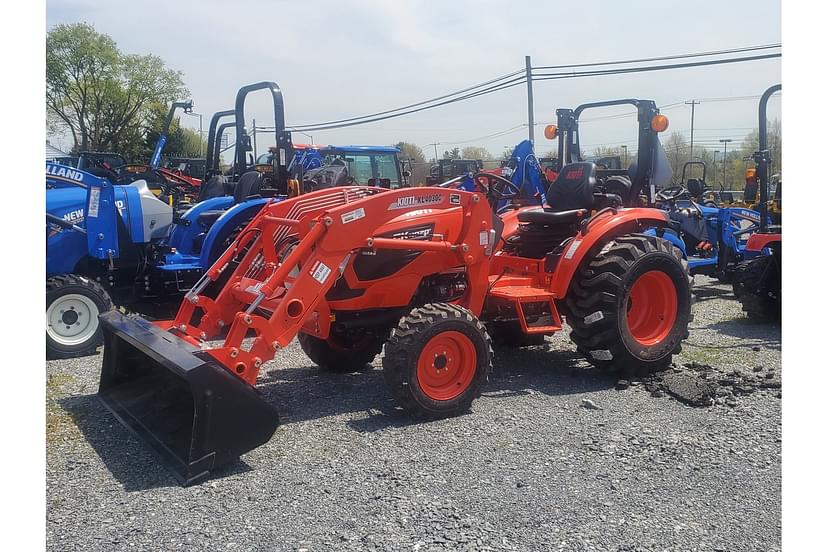

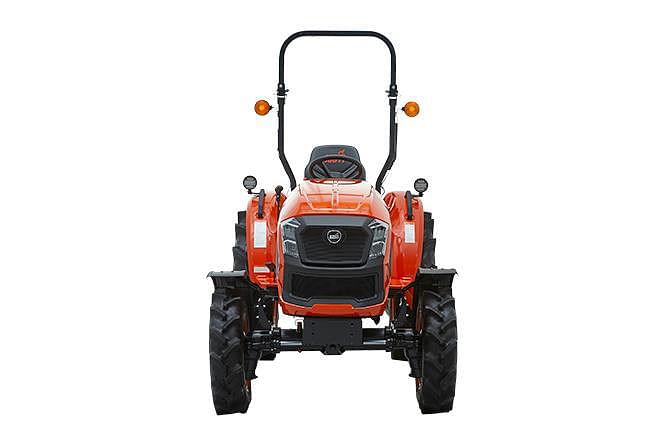

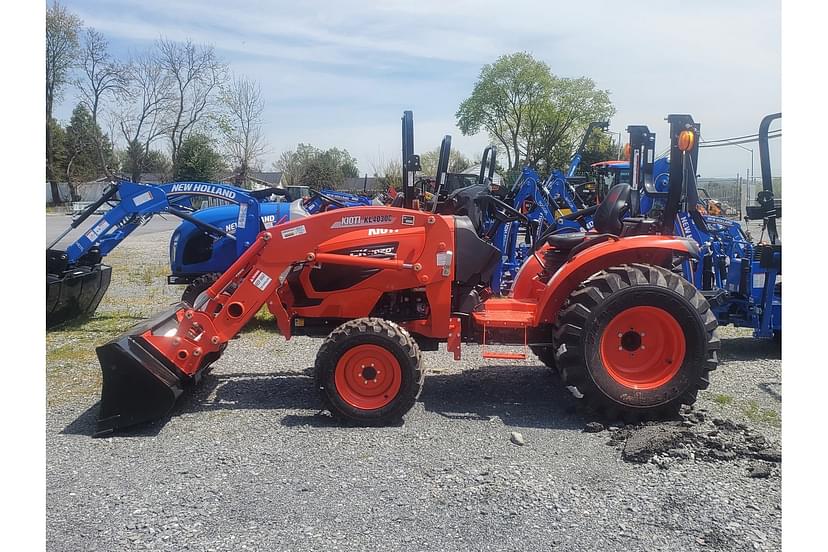

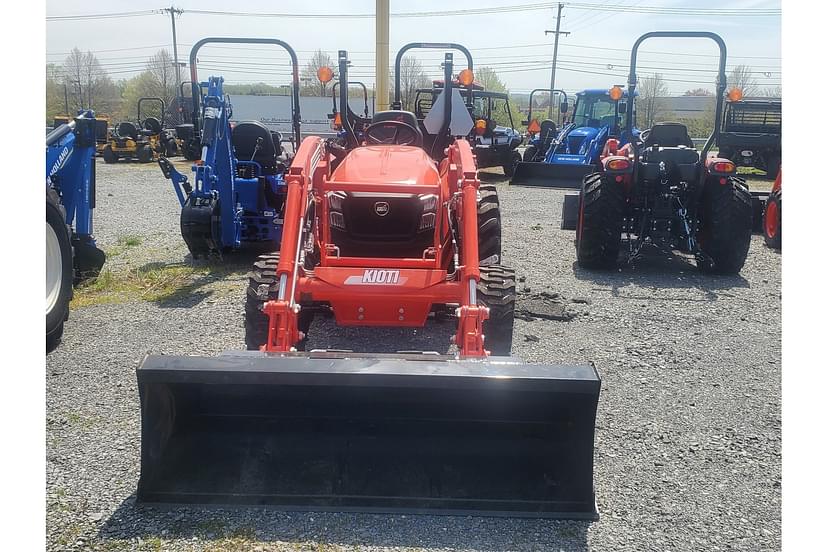

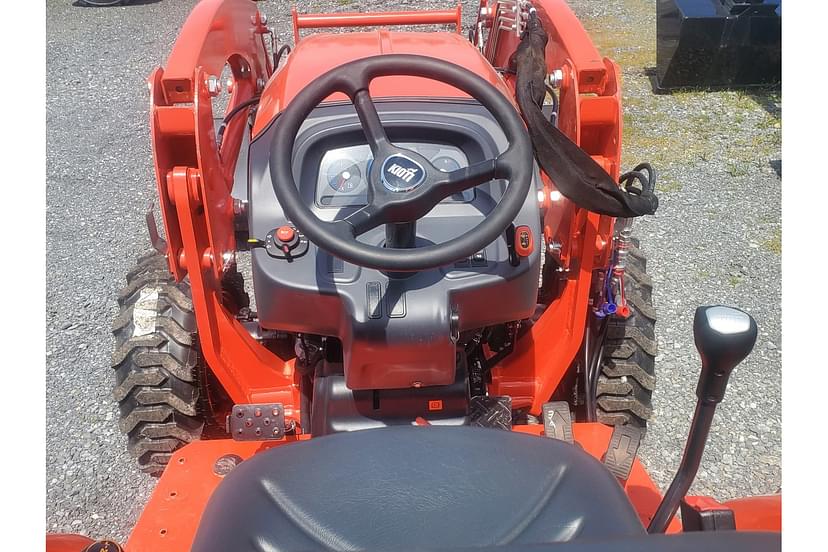

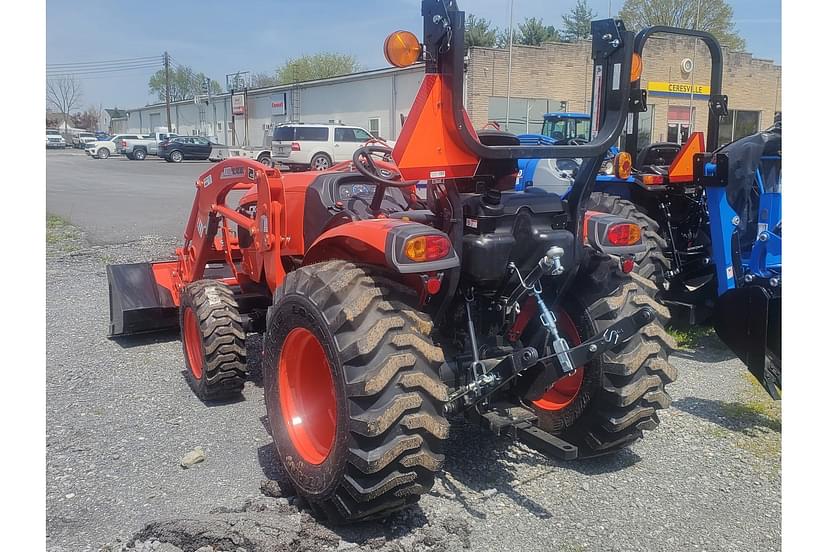

2024 Kioti CK4020 HST

Description

Main Features Engine Gross Power: 39.6 HP PTO Type: Live Transmission Type: Hydrostatic Shuttle: Dry Single Stage Features High Capacity Hydraulic Pump Power Steering Deluxe Seat Rear PTO Single Lever Joystick Foldable ROPS Simple Maintenance Center Marker High Ground Clearance Illuminated Dashboard 3-Point Control Lever HST Transmission with Twin HST Pedals Transmission Transmission Type: HST Main Gear: Manual No. of Travel Speeds - Forward / Reverse: Infinite, 3 Range Min. Travel Speed of Forward w/ Ag @ Engine rated speed: .94 mph (1.52 km/h) Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 14.85 mph (23.91 km/h) Power Take-Off PTO Type Trans: Live PTO Power: 33.3 HP Rear PTO Speeds (1st): 540 rpm Mid PTO Speeds: 2,000 rpm (Optional) Brakes and Clutch Brakes: Wet Multi Disc Clutch: Dry Single Stage Dimensions w/ AG Tire Length w/ 3-point hitch: 120.9 in. (3,070 mm) Width: 54.5 in. (1,385 mm) Height from Top of ROPS: 92.91 in. (2,520 mm) Wheelbase: 65.7 in. (1,670 mm) Ground Clearance: 13.4 in. (340 mm) Front Tread Ag Tires - Min: 48.2 in (1,225 mm) Rear Tread Ag Tires - Min: 47.6 in. (1,210 mm) Min. Turning Radius w/ Brake: 107.48 in. (2,730 mm) Hydraulics Total Pump Flow: 11.7 gpm (44.4 L/min) 3-Point Hitch Standard Category: Category 1 Lift Capacity, 24 in. aft of hitch: 1,631 lbs. (740 kg) Control Type: Position Weight Weight w/ Ag Tires w/ROPS: 2,734 lbs. (1,240 kg) Standard Equipment Rear PTO Wet Multi Disc Brakes Joystick Valve Drawbar Headlights Parking Brak
