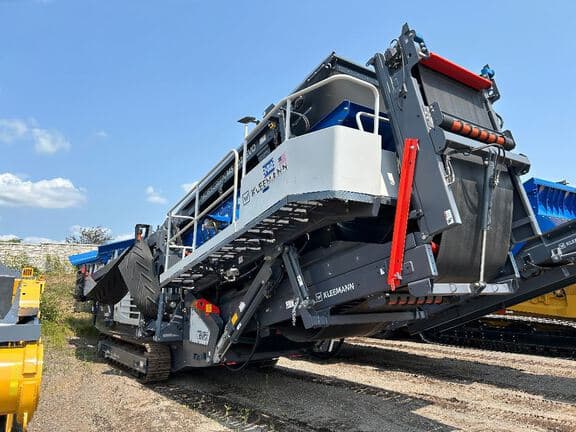

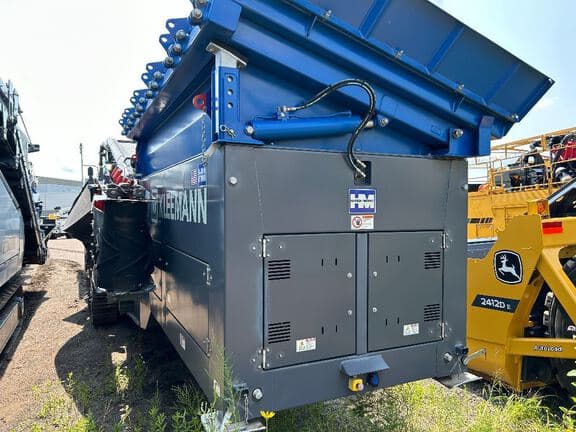

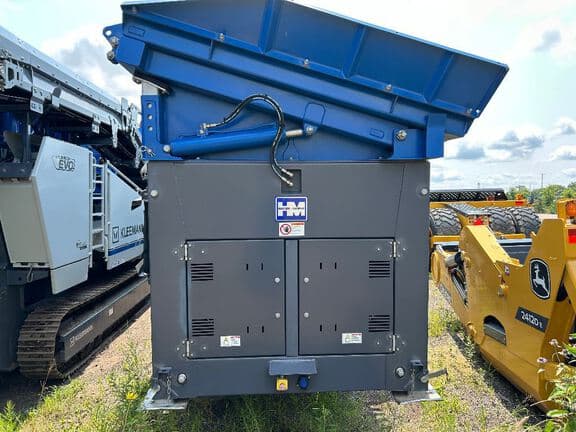

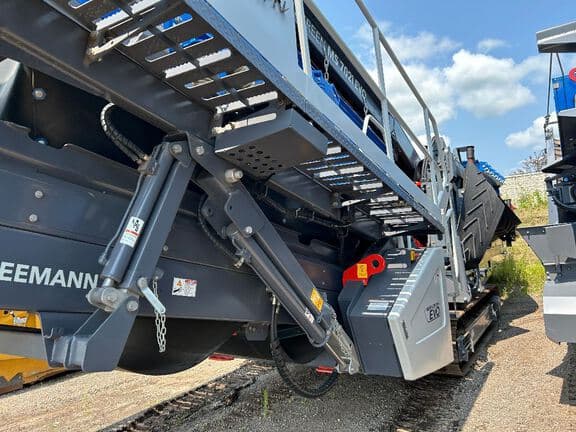

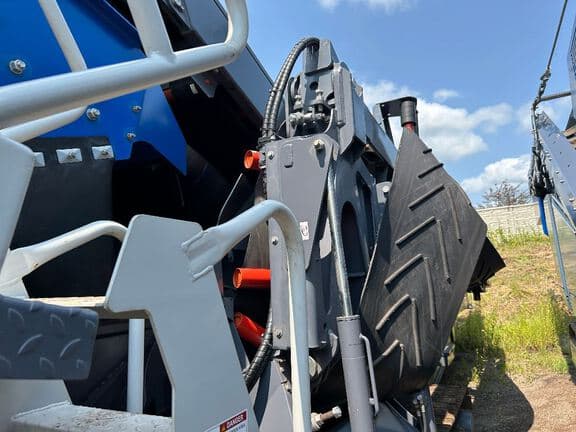

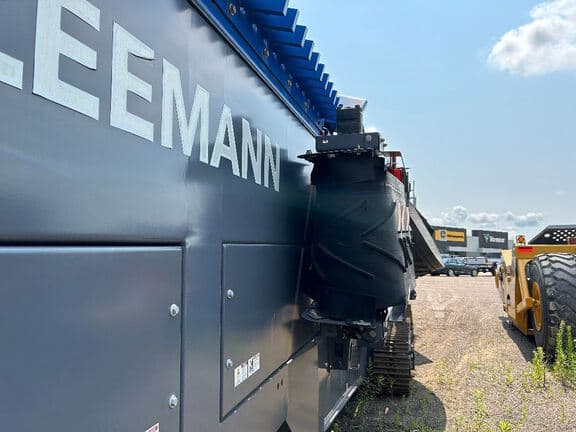

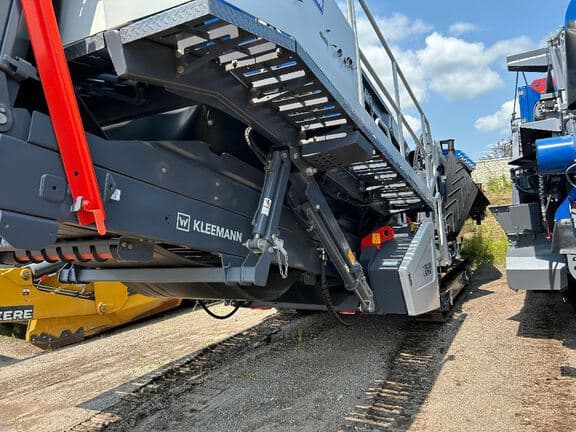

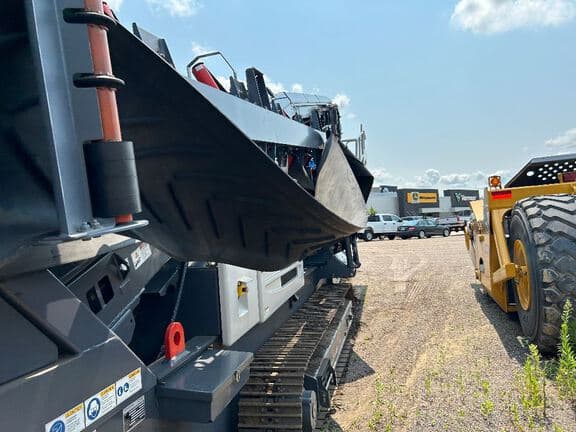

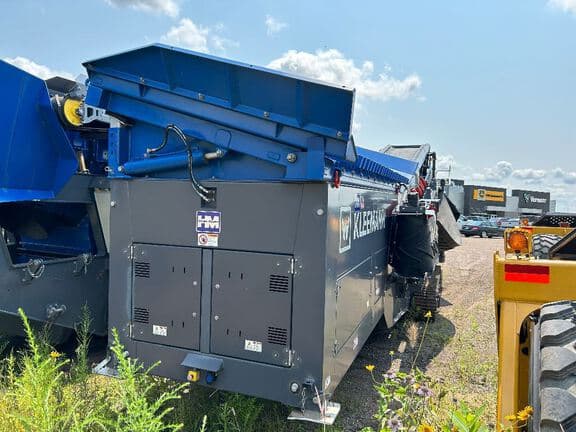

2022 Kleemann MSC702IEVO

Description

MOBISCREEN MS 702 - HOPPER UNIT 8M3 - FOLDING GRID MED GAP SETTING 100MM - WITHOUT VIBRATING COVER - FEEDING CONVEYOR BELT CONVEYOR, SMOOTH - SIDE DISCHARGE CONVEYOR, OVERFLOW FROM TOP DECK - WITHOUT EXTERNAL POWER SUPPLY - WITOS FLEETVIEW TELEMATICS - HOPPER DOSING FLAP - MATERIAL BRAKE, FEEDING CONVEYOR - MATERIAL BRAKE, SCREEN - Power supply unit Deutz (TIER 4F) - Factory Features - TYPE: Mobile Screening Plant - SCREEN TYPE: Double-Deck Classifying Screen - DRIVE SYSTEM: Diesel-Hydraulic - ENGINE: John Deere Tier 4 Final - ENGINE POWER: 98 HP - MAX PRODUCTION: 386 TPH - MAX FEED SIZE: 7 in x 4 in x 3 in - HOPPER CAPACITY: 10.5 yd³ - FEED HEIGHT: 11 ft 9 in - HOPPER DISCHARGE CONVEYOR: 48 in x 11 ft 6 in - FEED CONVEYOR: 48 in x 33 ft 10 in - SCREEN BOX SIZE: 5 ft 1 in x 14 ft 9 in - SCREENING AREA: 75 ft² - FINE GRAIN CONVEYOR: 48 in x 21 ft 8 in - FINE GRAIN DISCHARGE HEIGHT: 10 ft 10 in to 14 ft 9 in - MEDIUM GRAIN CONVEYOR: 26 in x 33 ft 6 in - MEDIUM GRAIN DISCHARGE HEIGHT: 16 ft 5 in - OVERSIZE CONVEYOR: 26 in x 33 ft 6 in - OVERSIZE DISCHARGE HEIGHT: 16 ft 5 in - TRANSPORT LENGTH: 54 ft 3 in - TRANSPORT WIDTH: 9 ft 10 in - TRANSPORT HEIGHT: 11 ft 2 in - OPERATING WEIGHT: 71,400 lb - MAX CONFIGURATION WEIGHT: 81,900 lb - TRACK UNDERCARRIAGE - APPLICATIONS: Aggregate, Quarry, Topsoil, Sand & Gravel, Recycling, Contract Crushing - Specifications and features are based on general factory information and may not reflect the exact machine being offered. Please contact RDO
