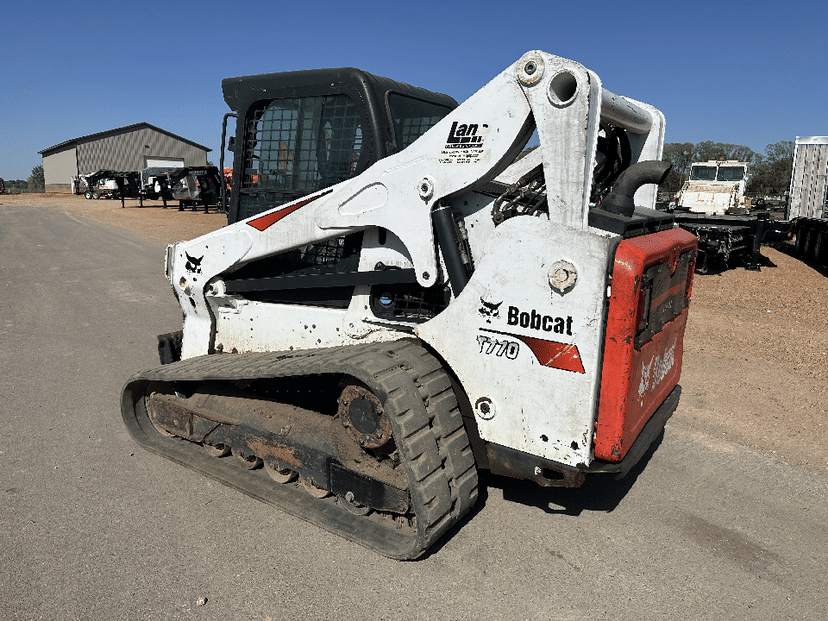

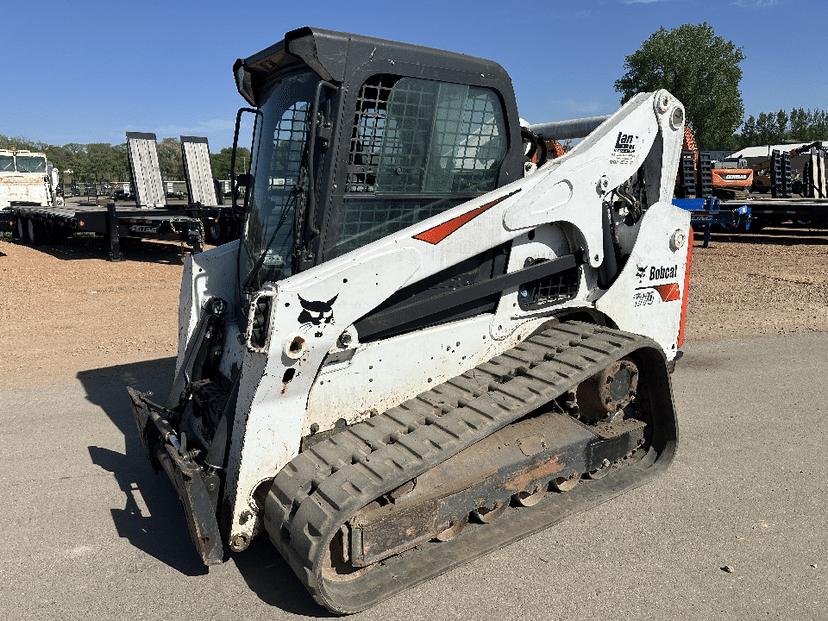

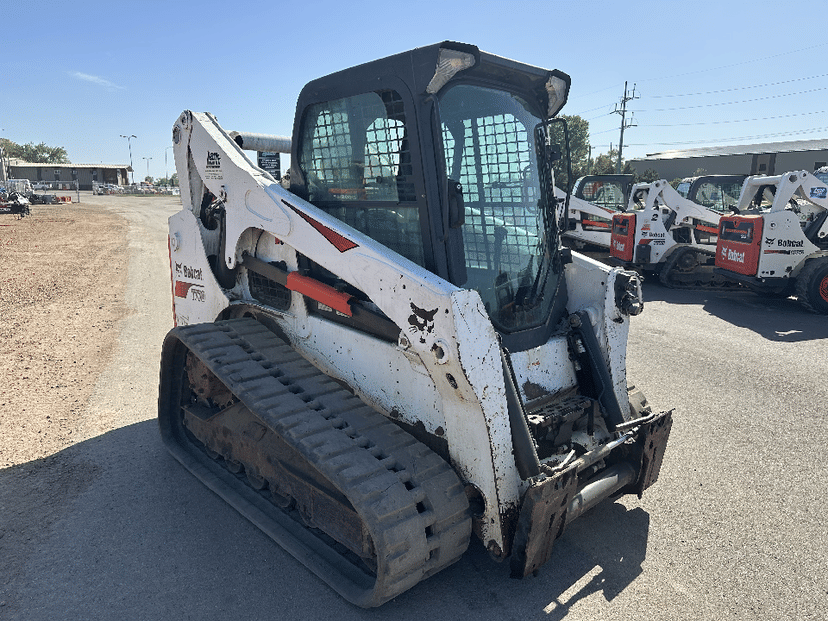

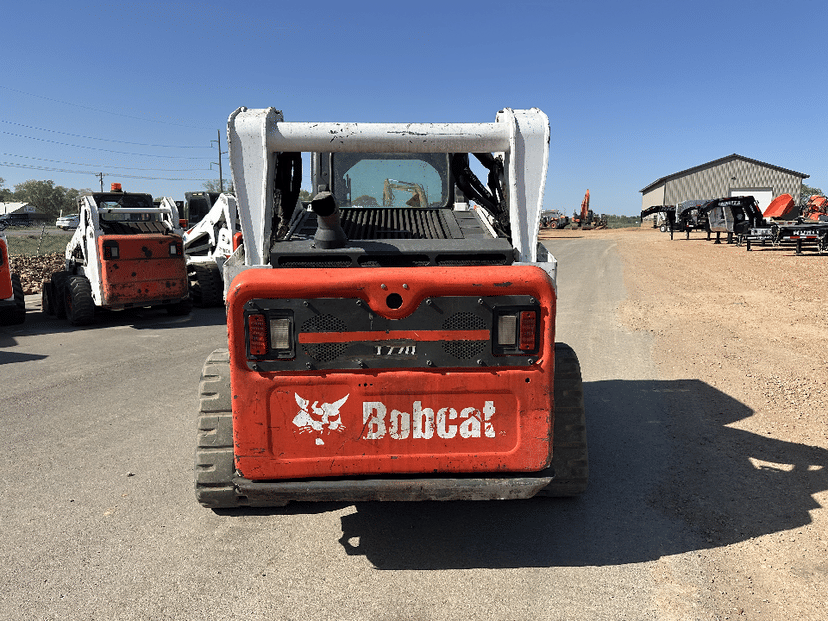

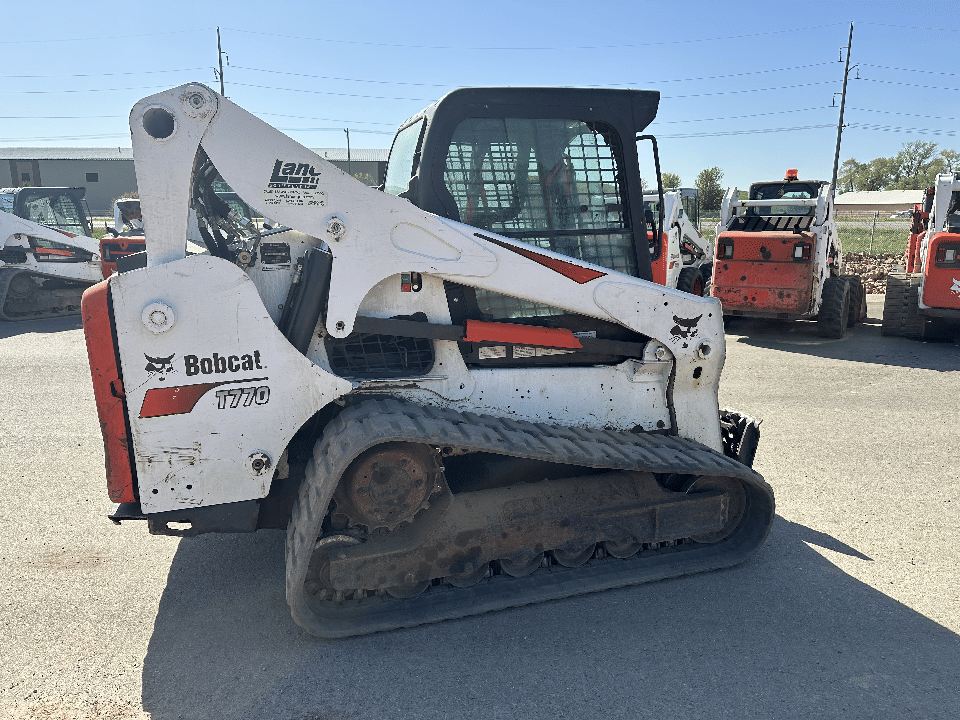

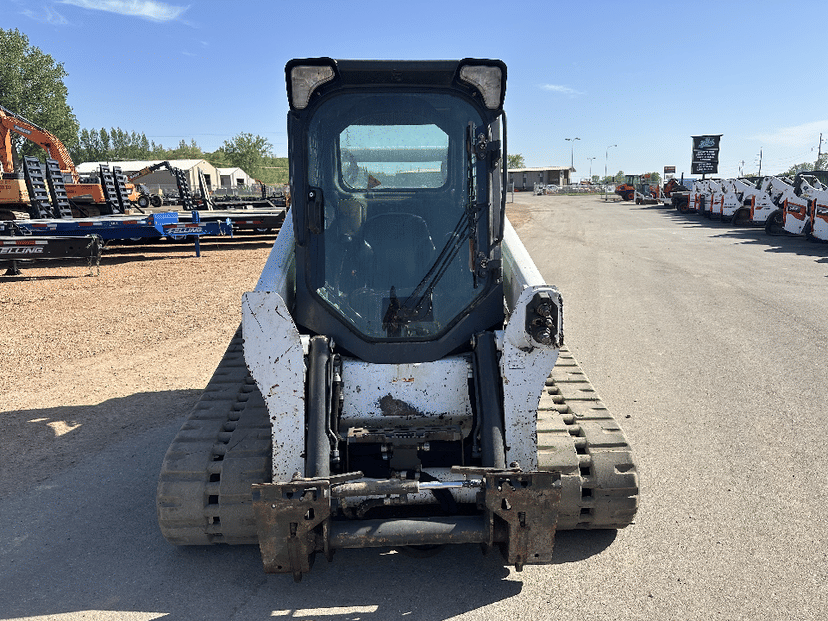

2017 Bobcat T770

Description

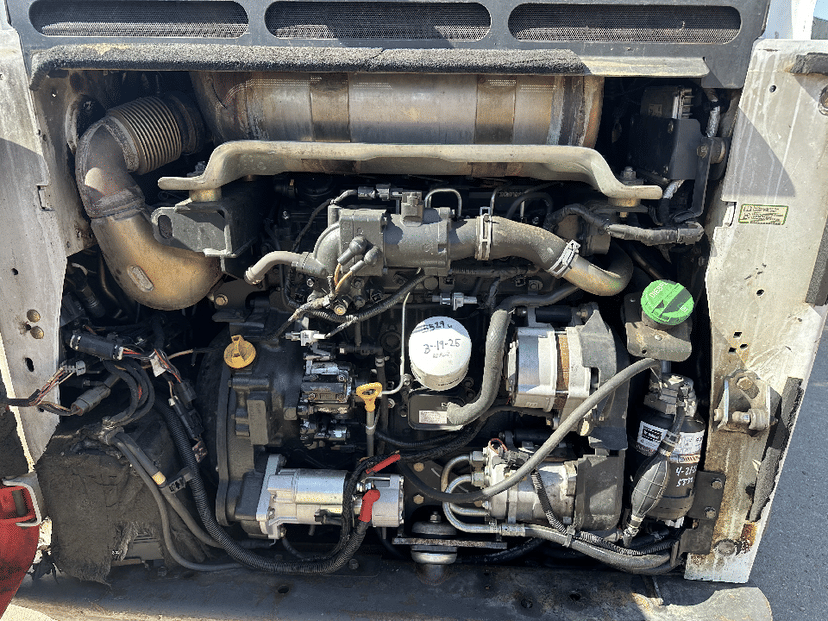

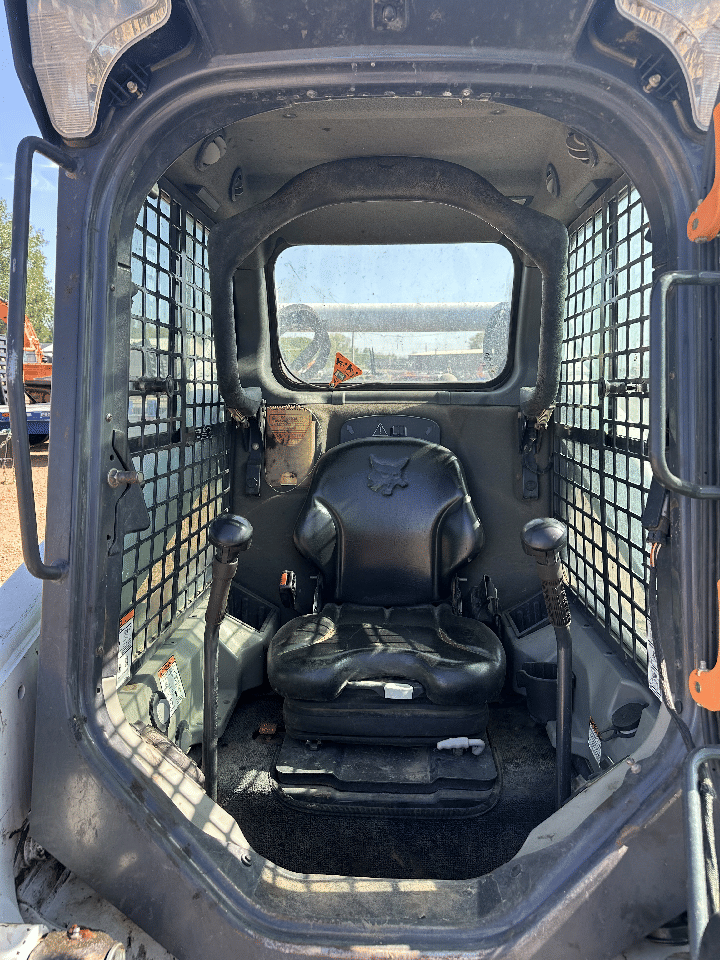

CTL-A71 Pkg-Air Ride Seat-Radio-18 Tracks-Bucket Model: Bobcat T770 Type: Compact Track Loader Engine Manufacturer: Bobcat Engine Type: Turbocharged Diesel Gross Horsepower: Approx. 92 hp Rated Operating Capacity (35%): Approx. 3,475 lb Rated Operating Capacity (50%): Approx. 4,960 lb Tipping Load: Approx. 9,929 lb Operating Weight: Approx. 10,300-10,515 lb Ground Pressure: Approx. 4.2 psi Auxiliary Hydraulic Flow (Standard): Approx. 23.0 gpm Auxiliary Hydraulic Flow (High Flow): Approx. 36.6 gpm System Relief Pressure: Approx. 3,500 psi Travel Speed (Standard): Approx. 6.6 mph Travel Speed (Two-Speed): Up to approx. 10.7 mph Fuel Type: Diesel Fuel Tank Capacity: Approx. 44 gal Overall Width (with bucket): Approx. 78-80 in Overall Height (cab): Approx. 81.3 in Overall Length (with bucket): Approx. 141.6 in Overall Length (without attachment): Approx. 114.3 in Hinge Pin Height: Approx. 132 in Reach at Max Height: Approx. 33.6 in Track Width: Approx. 17.7 in Length of Track on Ground: Approx. 63.7 in
