2017 John Deere 1023E

Description

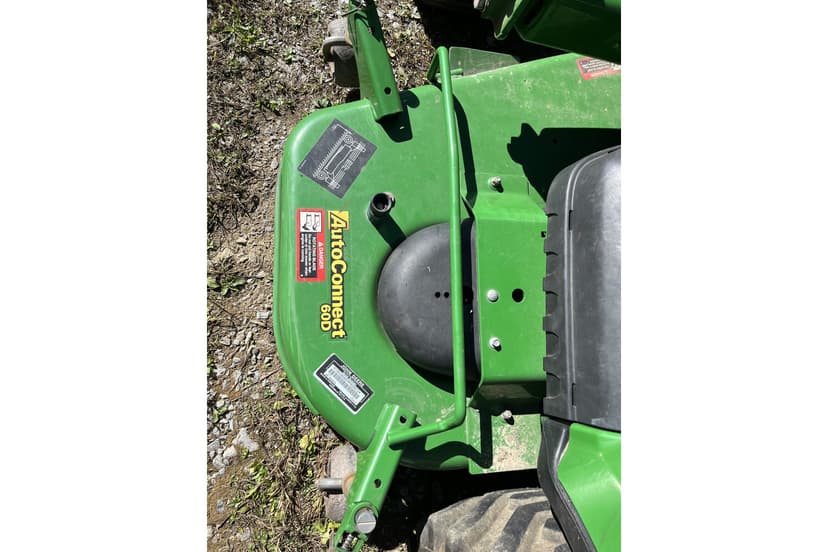

Meet the most capable sub-compact tractors on the market: the John Deere 1 Family. With up to 25 available horsepower, AutoConnect™ decks, iMatch™ compatibility, not to mention hundreds of implement and attachment options… even the hardest chore on your list doesn’t stand a chance. Features Powerful Final Tier 4-compliant diesel engine New, easy-lift hood with dual gas-charged lift struts Auto-Connect™ mid-mower deck can be installed or removed in less than 5 minutes Easy-to-operate two speed hydrostatic transmission Engine Family: EYDXL0.99NS2 FYDXL0.99NS2 GYDXL0.99NS2 Manufacturer: Yanmar Engine model: 3TNM74F-NCJT Engine power (gross): 16.5 kW/22.4 hp Power take-off (PTO) power: 10.8 kW/14.5 hp Rated engine speed: 3200 rpm Type: Diesel Injection pump type: Indirect Injection Aspiration: Natural Emissions compliance: Final Tier 4 Cylinders/displacement: 3 / 0.993 L3 / 60.6 cu in. Number of cylinders: Three Cylinder liners: Cast-In-Block Bore and stroke: 74x77 mm/2.91 x 3.03 in. Compression ratio: 23.5:1 Lubrication: Pressurized Cooling system: Water pump Air cleaner: Dual element Engine torque at rated speed: 49.2 Nm/36.3 lb-ft Fuel tank capacity: 21.2 L/5.6 U.S. gal. Electrical Battery size: 500 CCA Alternator (12-V): 40 amp Starter size: 1.2 kW/1.6 hp Fuel System Type: Indirect Injection Fuel consumption: 5.3 L/hr/1.4 U.S. gal./hr Transmission Standard transmission; forward/reverse: Hydrostatic - 2 range Left-hand reverser: No Final drive: Bull Gear Brakes: Wet disc (left
