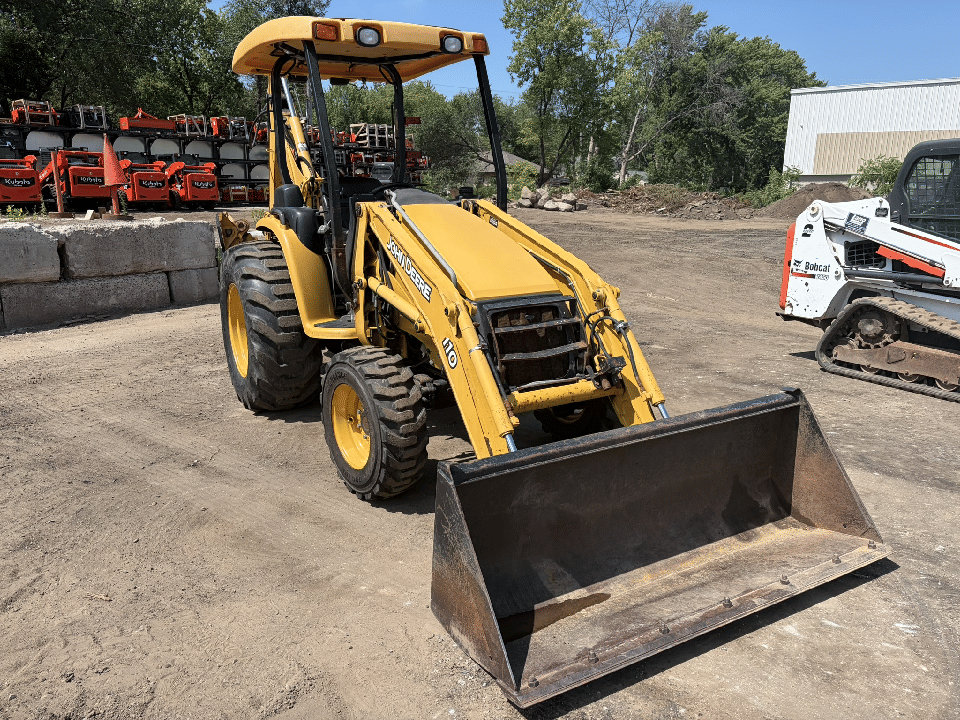

2008 John Deere 110

Description

Tractor- 4WD- Loader-Backhoe-Rops 2008 John Deere 110 TLB Tractor - 4WD - Loader - Backhoe - ROPS Specs General Category: Tractor Loader Backhoe (TLB) Year: 2008 Model: 110 TLB Drive: 4WD (Mechanical Front-Wheel Drive) ROPS: Four-post ROPS Power Steering: Hydrostatic power steering Brakes: Wet disc brakes Primary Applications: Excavating, trenching, loading, grading, landscaping, utility work, and property maintenance. Engine Engine: Yanmar 4TNV88 diesel Engine Type: 4-cylinder, liquid-cooled Displacement: 2.2 L (133.6 cu. in.) Gross Horsepower: 43 HP Net Horsepower: 41 HP Rated Engine Speed: 2,600 RPM Fuel Tank Capacity: 15.3 gal. Transmission & Hydraulics Transmission: Hydrostatic Ranges: 3-range infinite forward and reverse Hydraulic System: Open-center Hydraulic Pressure: 3,000 PSI Total Hydraulic Flow: 23.6 GPM Loader Hydraulic Flow: 12.2 GPM Backhoe Hydraulic Flow: 16.3 GPM Loader Performance Loader Lift Capacity (Pivot Pin): 2,727 lbs. Lift Capacity (Full Height): 2,042 lbs. Maximum Lift Height (Pivot Pin): 114.8 in. (9.6 ft.) Breakout Force: 3,965 lbs. Maximum Dump Angle: 45 degrees Backhoe Performance Maximum Digging Depth: 121 in. (10.1 ft.) Bucket Digging Force: Up to 5,400 lbs. Maximum Reach from Swing Pivot: Approximately 14 ft. Stabilizers: Independent hydraulic stabilizers Boom Swing: Hydraulic swing system for efficient trenching. Dimensions Operating Weight: Approximately 7,600 lbs. Wheelbase: 71.5 in. Overall Length: 296 in. Overall Width: 86 in. Height (ROP
