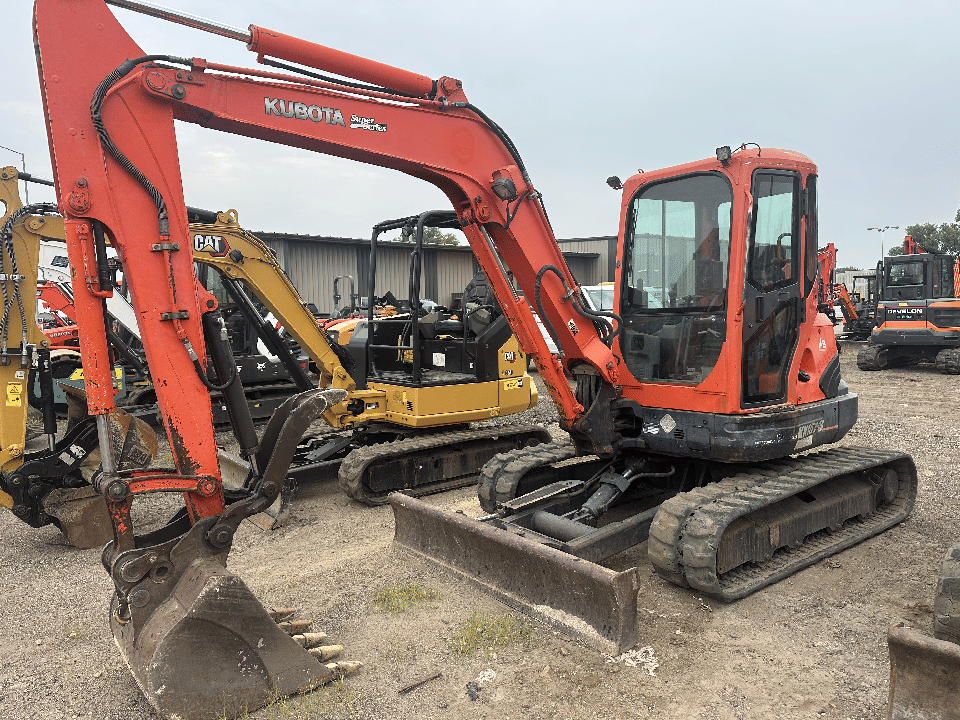

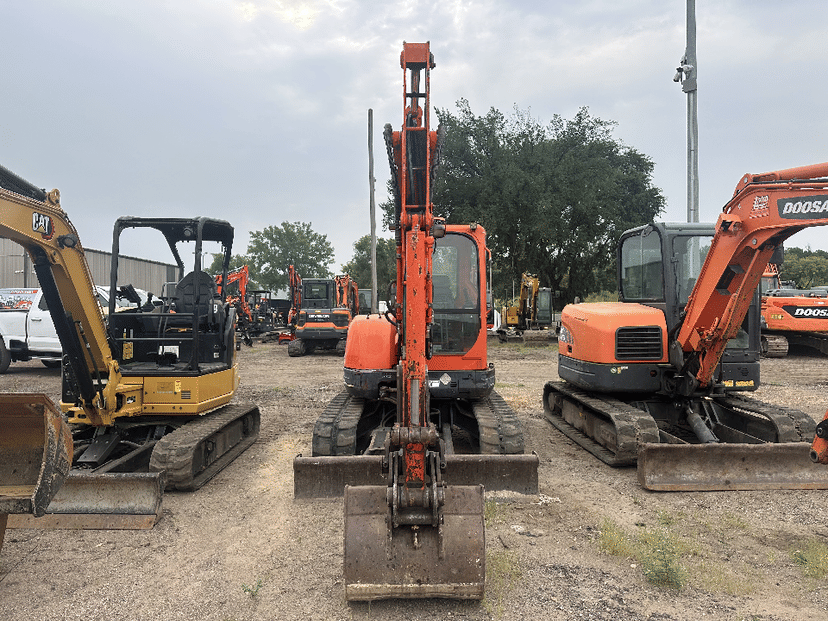

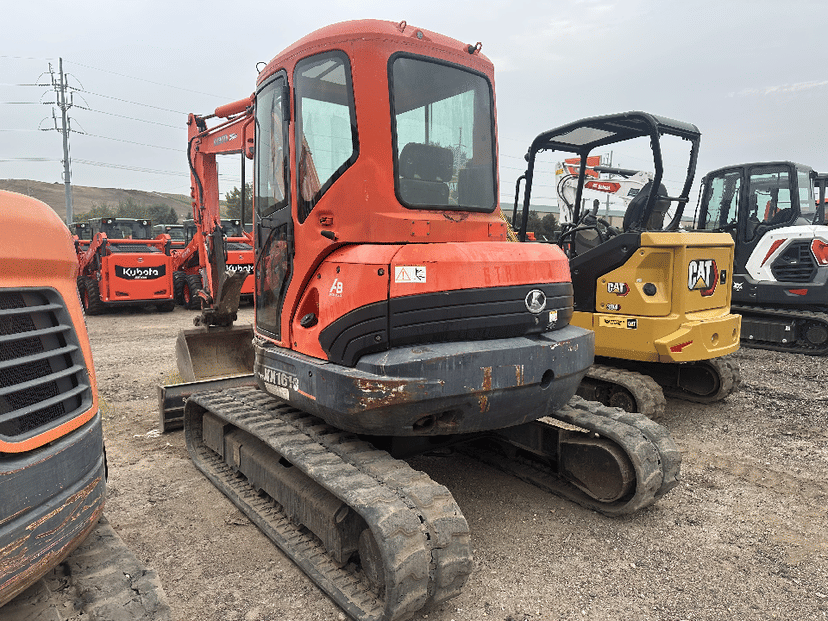

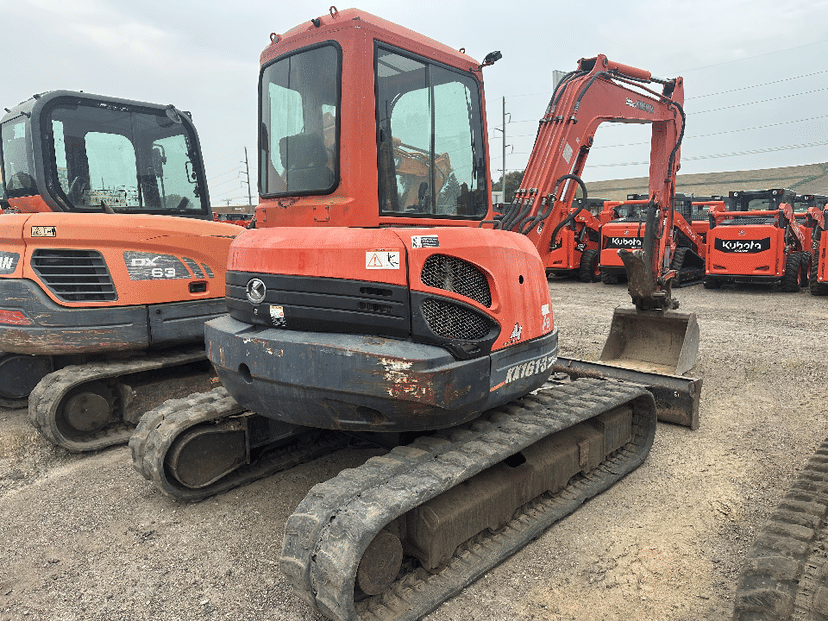

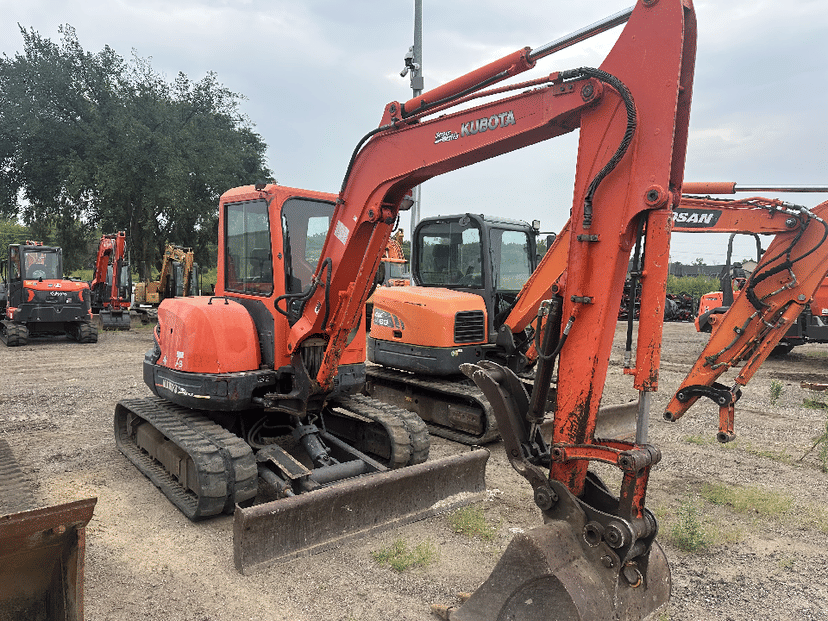

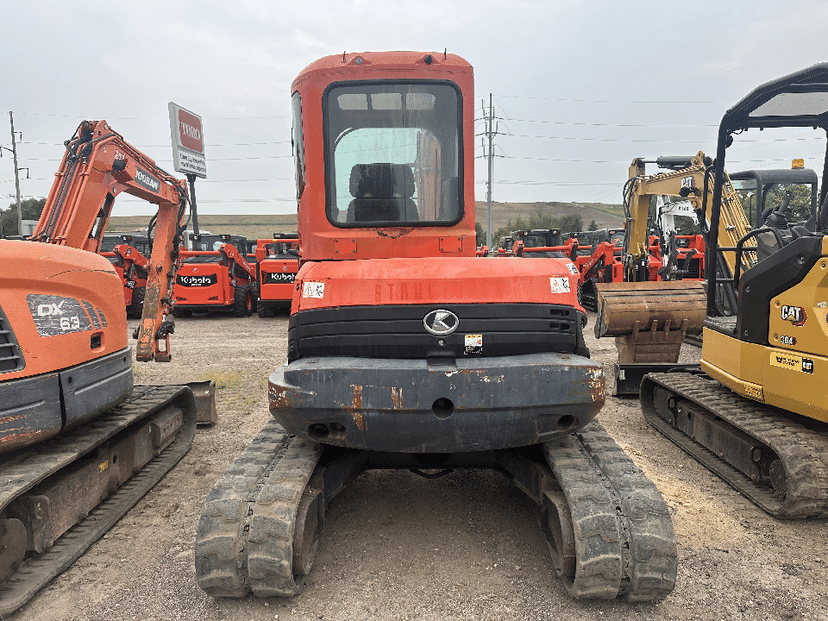

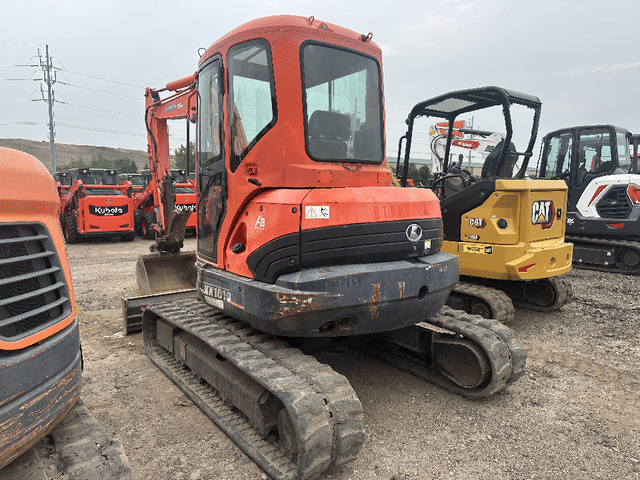

2005 Kubota KX1613R4AS

Description

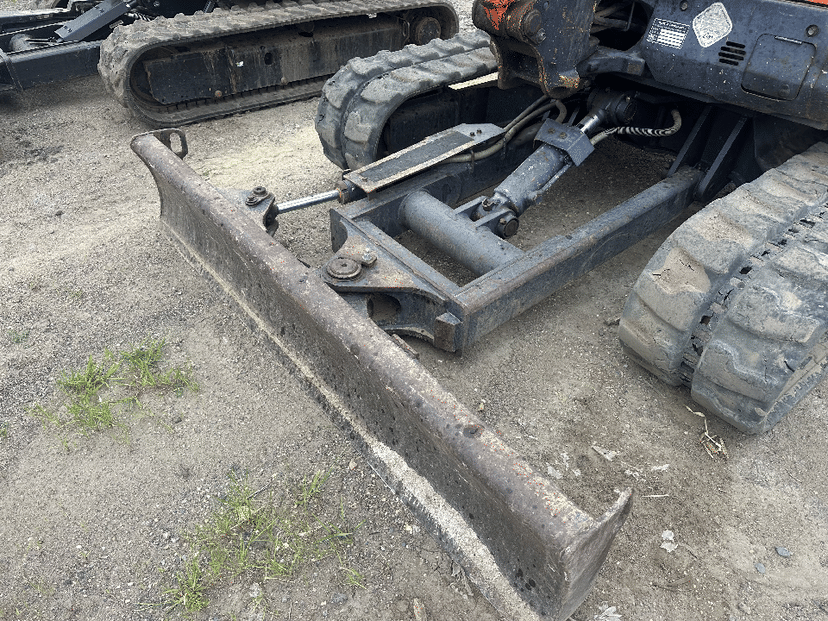

KUBOTA EXCAVATOR W/CAB,ANGLE BLADE,ROPS 2005 Kubota KX161-3R4AS Excavator - Cab, Angle Blade, ROPS Brand: Kubota Model: KX161-3R4AS Year: 2005 Type: Compact excavator Engine: Kubota V2403-M-E3 Engine Type: 4-cylinder, liquid-cooled diesel Gross Horsepower: 46 HP Net Horsepower: 43.8 HP Displacement: 148.5 cu. in. (2.434 L) Operating Weight: Approximately 11,700-12,100 lbs., depending on cab/track configuration Operator Station: Enclosed cab ROPS/FOPS: ROPS/FOPS certified Tracks: Rubber tracks Track Shoe Width: 15.7" Overall Width: 77.2" Overall Length: Approximately 218.1" Overall Height: Approximately 100" Ground Clearance: 12.6" Maximum Digging Depth: Approximately 12' 6" Maximum Digging Reach: Approximately 20' 7" Maximum Dump Height: Approximately 13' 8" Bucket Breakout Force: Approximately 8,770 lbs. Arm Breakout Force: Approximately 4,970 lbs. Hydraulic Pump Capacity: 31.4 GPM total Auxiliary Hydraulic Flow: Approximately 19.8 GPM Hydraulic Pressure: Approximately 3,410 PSI Travel Speed - Low: 1.6 MPH Travel Speed - High: 2.9 MPH Swing Speed: 9.3 RPM Boom Swing: 80 degrees left / 50 degrees right Fuel Capacity: 18.5 gal. Hydraulic Oil Capacity: 12.2 gal. reservoir / 19.8 gal. system Blade: Hydraulic angle blade Blade Width: 77.2" Blade Angle: Approximately 25 degrees left/right Blade Height: Approximately 15.4" Blade Float: Yes Application: Excavating, trenching, grading, backfilling, landscaping and utility work Cab Features: Enclosed operator cab for improved comfort
