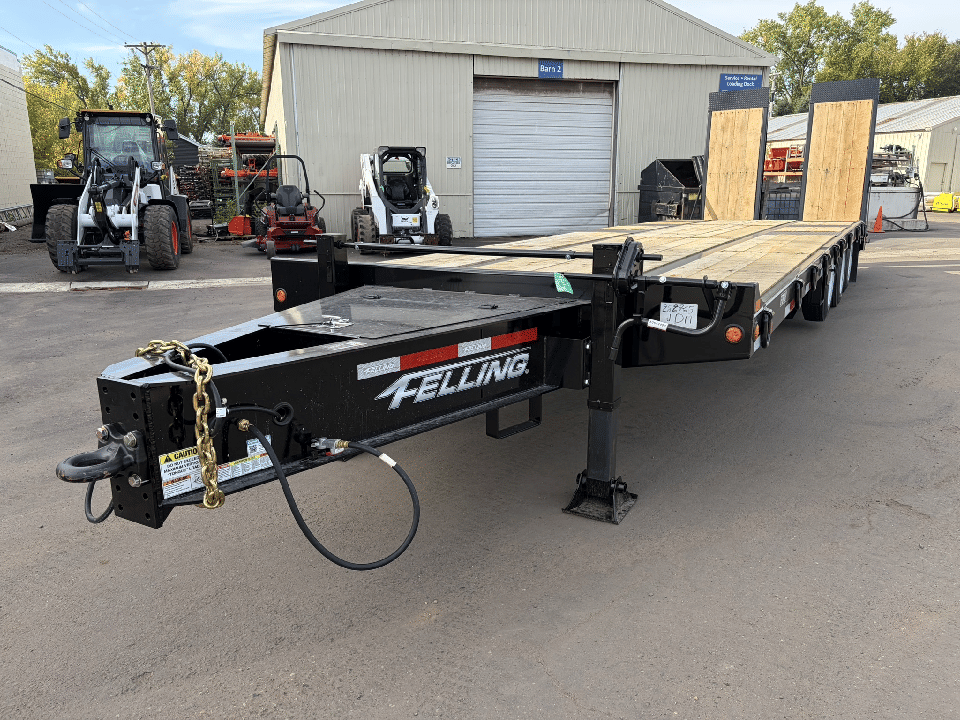

2026 Felling FT50-3LP

Description

Trailer-D/O-26+6-Dbl Incline-Lift Ax-Air Ramp S/C Manufacturer: Felling Trailers Model: FT50-3 LP Year: 2026 Type: Deck-Over Low-Profile Equipment Trailer Main Deck Length: 26' Beavertail: 6' double-incline, self-cleaning Overall Deck Length: 32' Overall Width: 102" Decking: White Oak / Apitong GVWR: 61,210 lbs. Rated Capacity: 50,000 lbs. Approx. Trailer Weight: 11,200-12,500 lbs. Approx. Payload Capacity: Up to 50,000 lbs. Main Frame: Engineered, fabricated high-tensile Grade 80 steel Crossmembers: Grade 80 Jr. I-beams Crossmember Spacing: Approx. 16" centers Side Rails: Heavy-duty channel Deck Height: Approx. 33" loaded / 35" unloaded Beavertail: 6' double-incline, self-cleaning Rear Ramps: Air-operated self-cleaning ramps Ramp Width: 45" Ramp Length: 11' bi-fold Ramp Configuration: 7.5' + 3.5' sections Ramp Surface: Self-cleaning steel Ramp Load Angle: Approx. 9.5 degrees Tie-Downs: 1" straight D-rings Axles: (3) 25,000-lb. oil-bath axles Suspension: Heavy-duty air ride Axle Spread: 55" Lift Axle: Air-lift first axle Brakes: Air brakes with ABS 2S/1M Parking Brakes: All axles Tires: 235/75R17.5 Load Range J Wheels: 17.5" × 6.75", 8-bolt aluminum Alcoa Dura-Brite Hitch: Adjustable 3" lunette eye/pintle Hitch Rating: 66,000 lbs. Landing Gear: Twin 140,000-lb. 2-speed Landing Gear Lift Capacity: 39,000 lbs. Electrical: 7-pole semi Lighting: LED Peterson Wiring: Sealed harness Safety Chains: Heavy-duty Grade 80 Toolbox: Large lockable hitch A-frame toolbox Steps: Heavy-duty s
