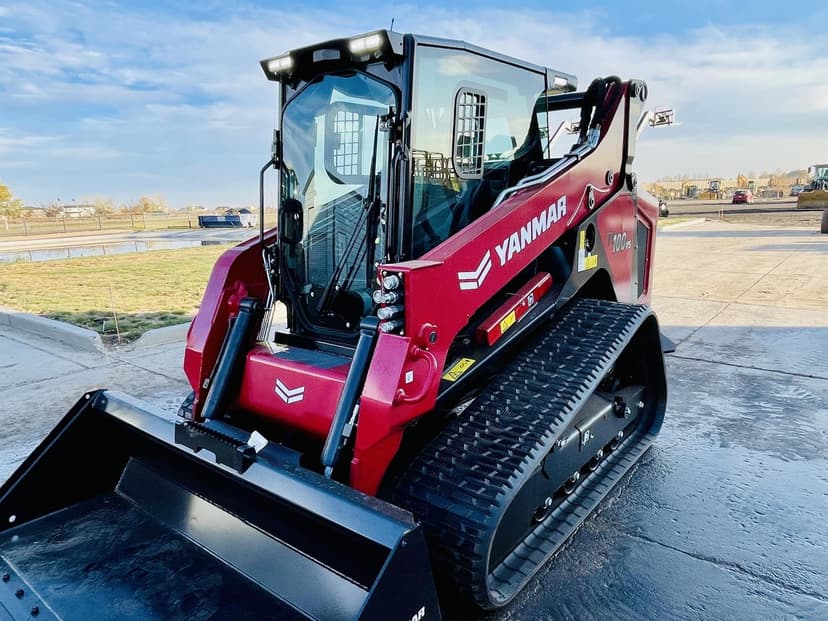

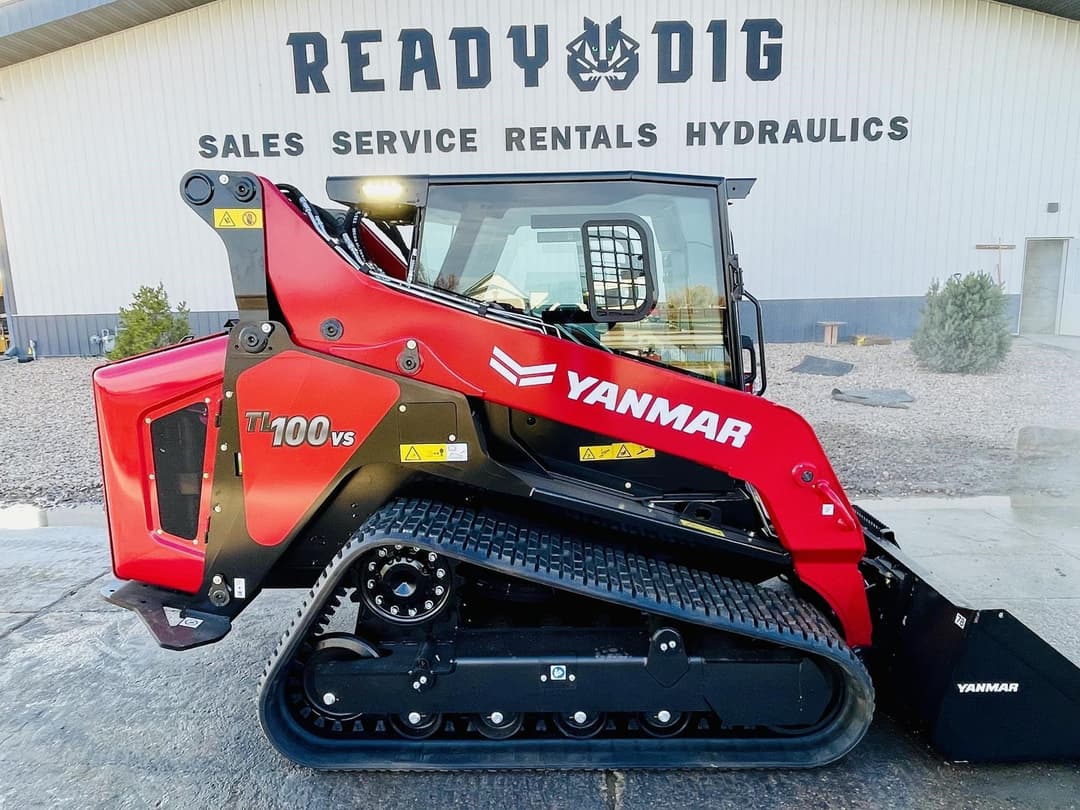

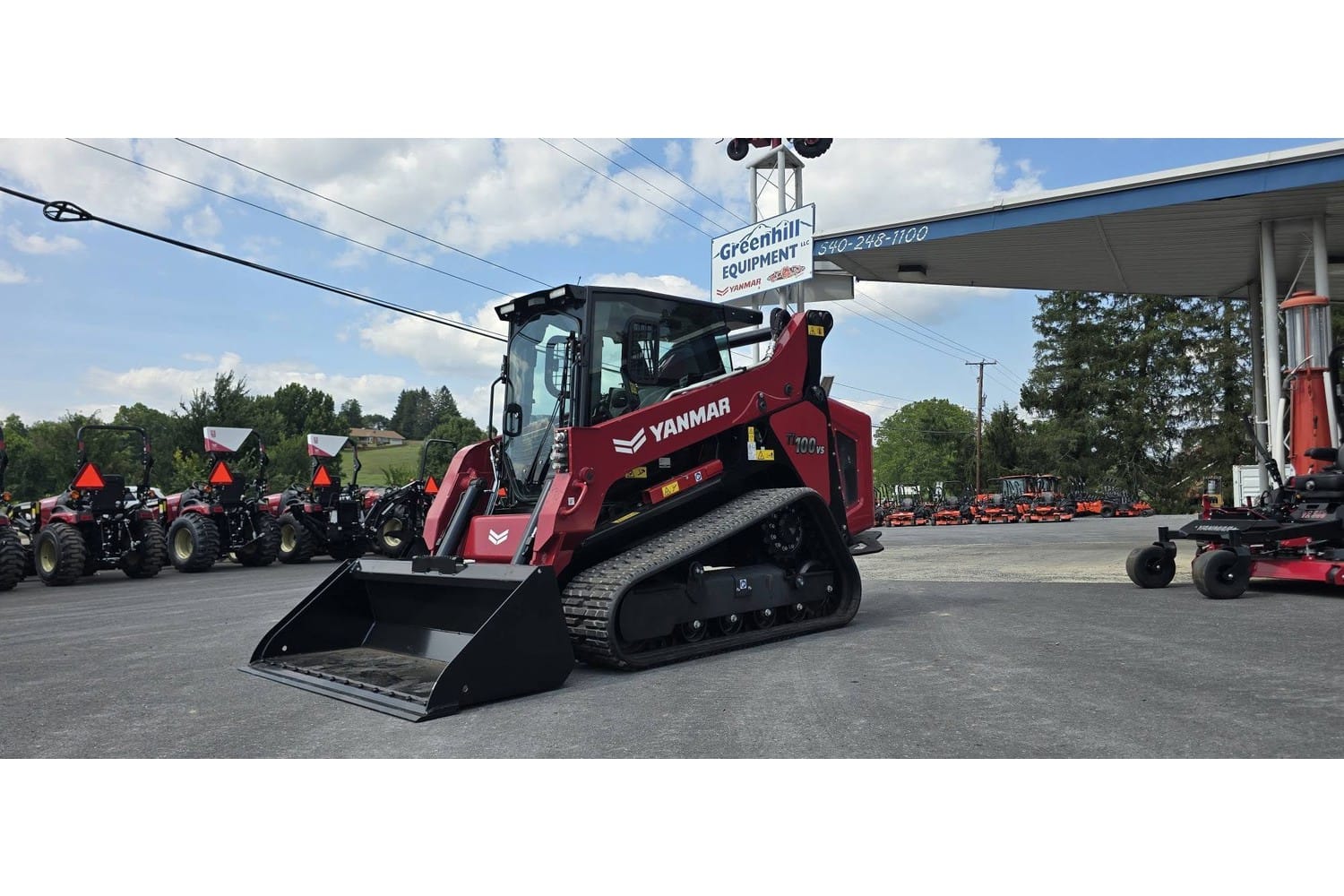

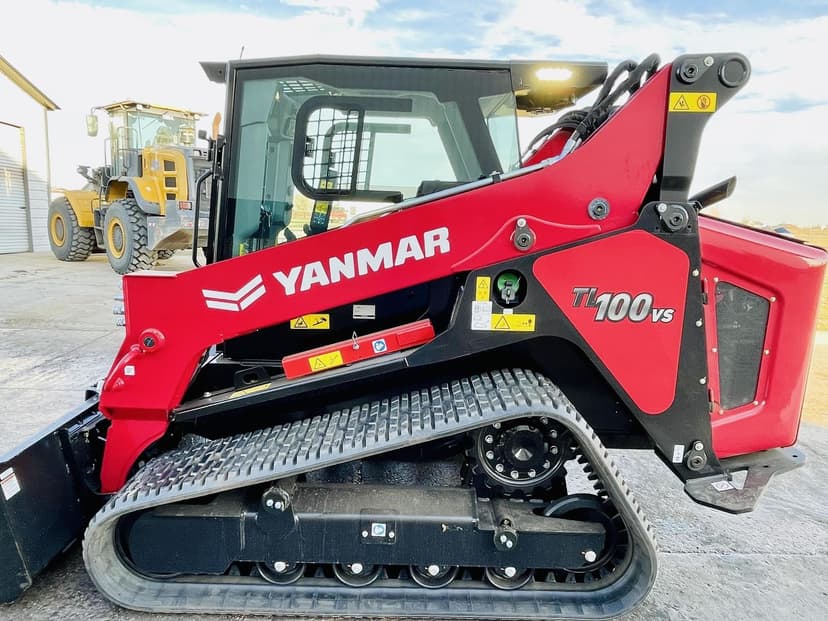

2026 Yanmar TL100VS

Description

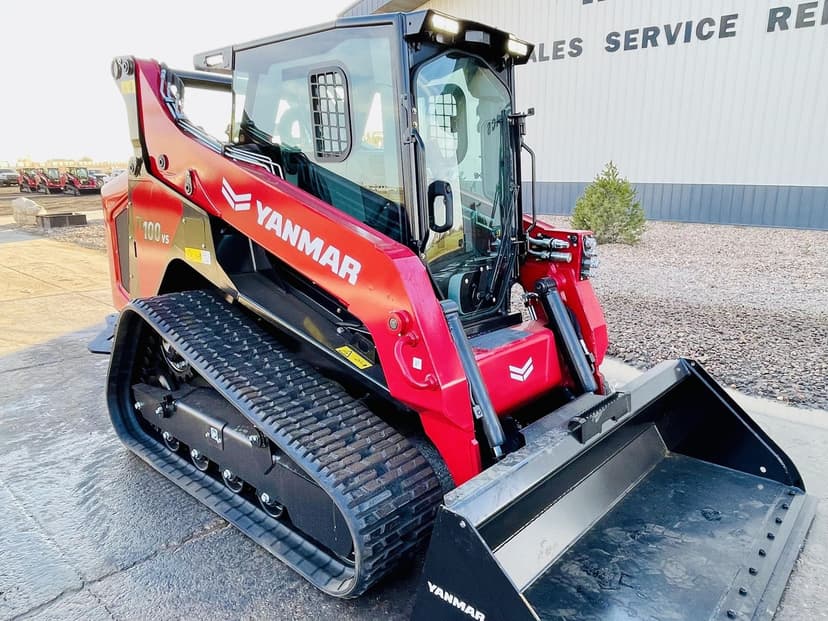

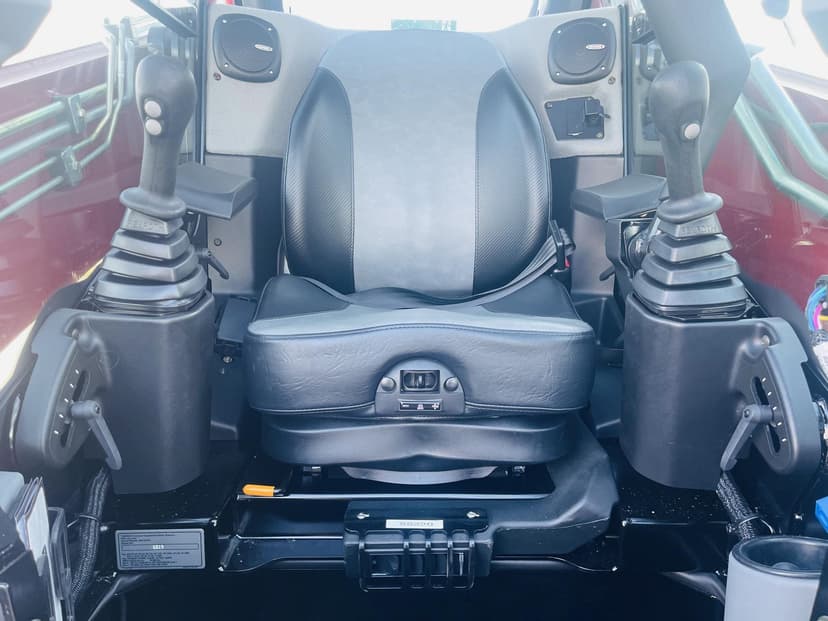

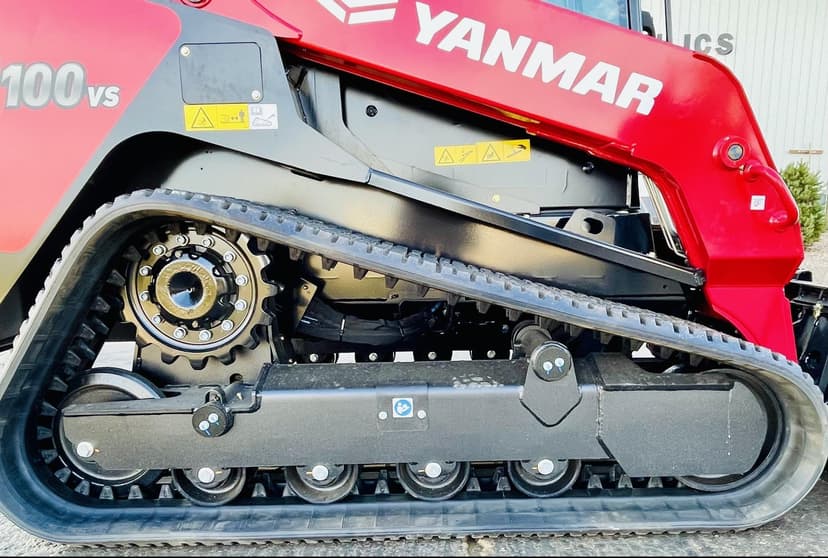

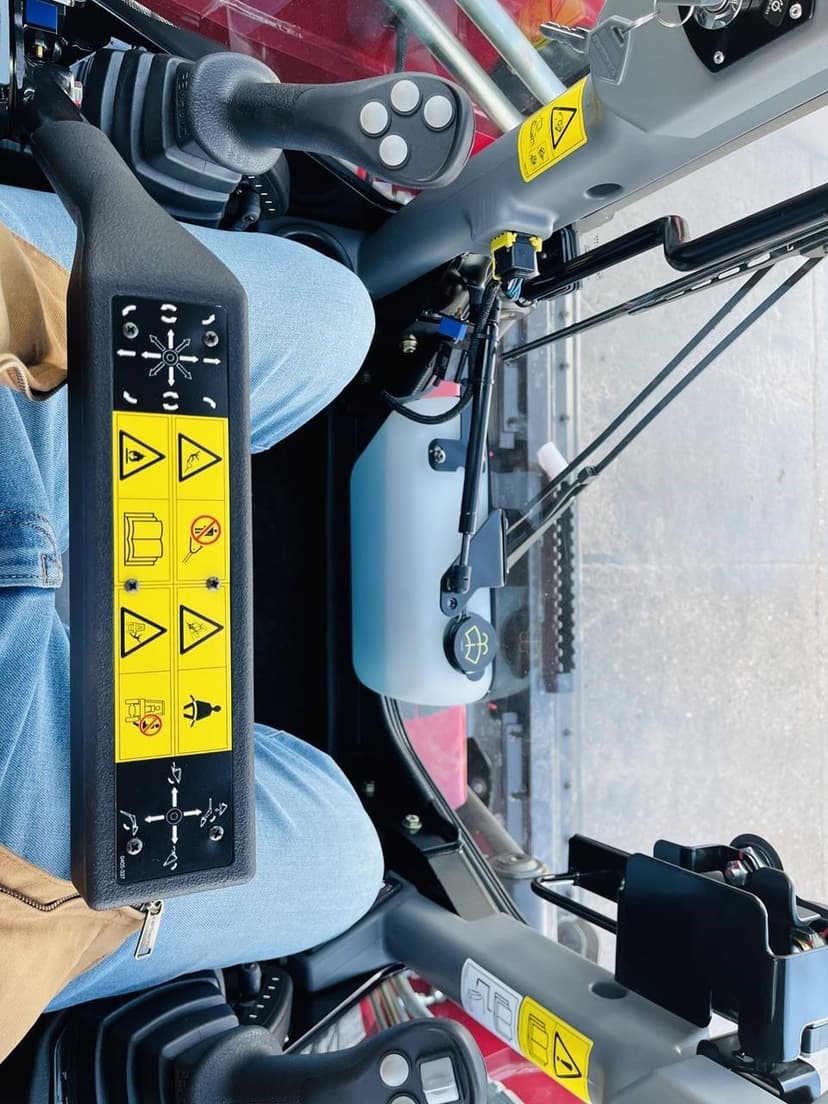

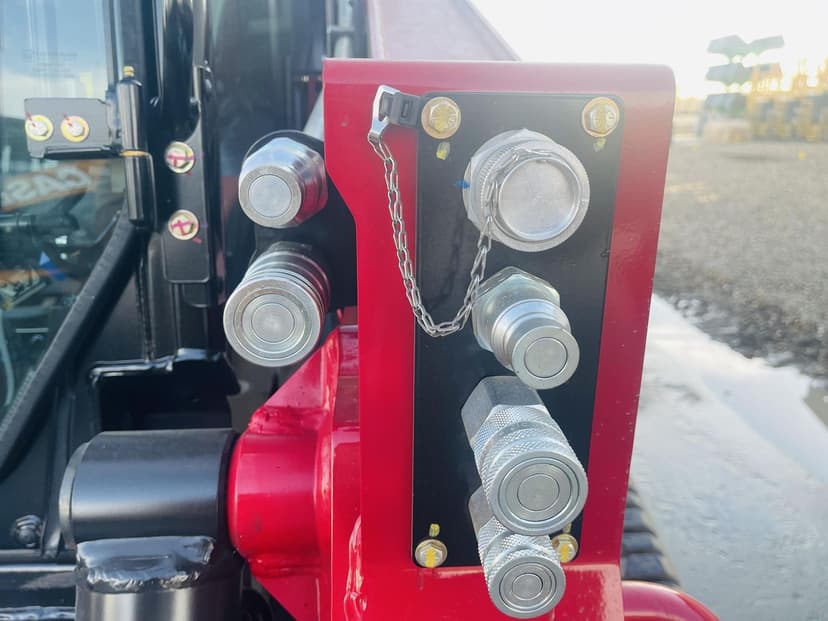

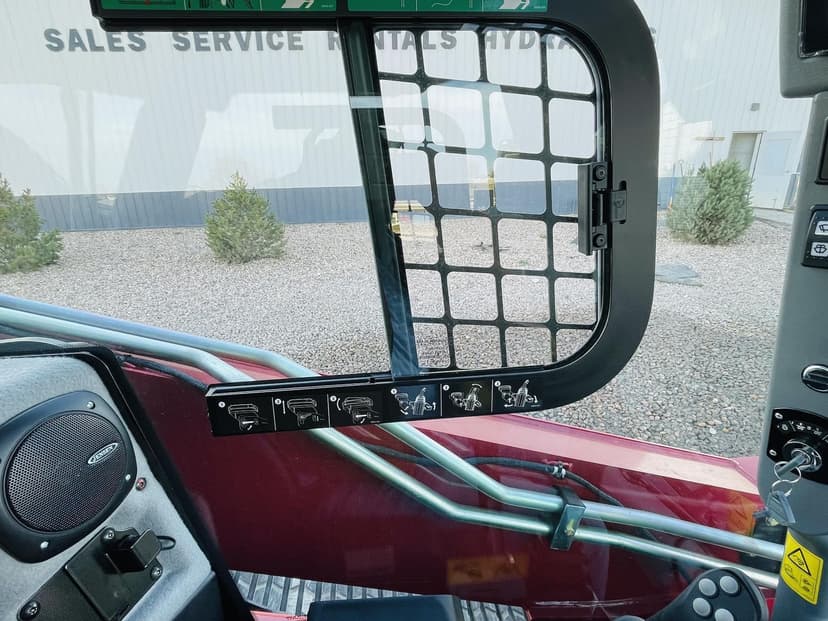

2026 Yanmar TL100VS Compact Track Loader Key Specs & Highlights Operating Weight: 10,555 lbs (Open Cab) / 10,835 lbs (Cab) Gross Power: 103.5 HP (77.2 kW) Rated Operating Capacity: 3,780 lbs (at 35% tipping load) Tipping Load: 10,800 lbs Travel Speed: Up to 8 mph Ground Pressure: 4.4 psi Fuel Tank Capacity: 34 gal (129 L) Auxiliary Hydraulic Flow: 23 GPM (standard) / 41 GPM (high-flow) Hydraulic Pressure: 3,480 psi (standard) / 3,771 psi (high-flow) Track Width: 17.7 in Track Length on Ground: 67 in Vertical-lift loader arms for extra reach and dump height Heavy-duty torsion-axle undercarriage for a smooth ride and longer track life Auto two-speed travel and dual-direction self-leveling system Work Tool Positioner and Return-to-Position functions for fast cycle times Spacious cab with suspension seat, 7-inch color display, and excellent visibility YANMAR SUPER FACTS Mini Excavator Pioneer Yanmar built the world's first compact excavator in 1968, setting the standard for the industry. Powerful Compact Lineup From 1-ton to 10-ton mini excavators, plus skid steers and compact track loaders rated from 67 HP up to 103.5 HP - serious performance in tight spaces. Durability in Design All-steel construction, zero/short tail swing, and protected boom cylinders ensure long life in harsh conditions. Fuel-Efficient Yanmar Engines In-house diesel engines deliver clean emissions, fuel savings, and reliable power. Confidence-Backed Warranty 4-year / 4,000-hour warranty - among the strongest
