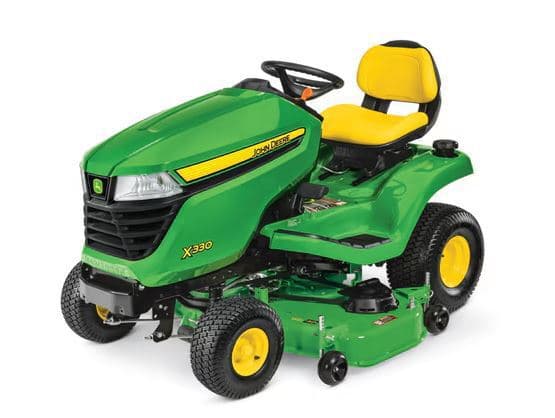

2026 John Deere X330

Description

ENGINE 22 hp* (16.4 kW) 44.2-cu in. (724-cc) displacement Air cooled, V-twin cylinder with cast-iron liners Gasoline Cyclonic air filter, oil drain hose, and clean out ports Model 44J6 ELECTRICAL SYSTEM 12-V, 340-CCA battery 14-amp charging capacity Instrument display with hourmeter and fuel gauge; optional MowerPlus Smart Connector available Optional 12-V outlet TRANSAXLE K46 hydrostatic transmission Twin Touch™ pedals 0-5.5 mph (0-8.9 km/h) forward speed 0-4 mph (0-6.4 km/h) reverse speed Cruise control CHASSIS Cast-iron front axle 15x6-6 front turf tires 20x10-8 rear turf tires Storage under seat, covered toolbox, and cup holder Optional front weight bracket holds up to four 42-lb (19-kg) Quik-Tatch™ weights Standard rear weight bracket holds up to two 42-lb (19-kg) Quik-Tatch™ weights STEERING Manual, two-wheel steer 14-in. (36-cm) steering wheel 16-in. (41-cm) turning radius 48A: 21-in. (53-cm) uncut circle radius SEAT 15-in. (38-cm) open back with grasp LIFT SYSTEM Foot pedal mower deck and implement lift with adjustable lift-assist spring MOWER DECK 48-in. (122-cm) Accel Deep™ Mower Deck 10-gauge, 0.135-in. (3.4-mm), steel shell Wash port with hose end Electric PTO clutch Four mower deck wheels, and center front rollers Mower deck wheels rotate 90 degrees for easy mower removal *Engine horsepower and torque information for non-Deere engines are provided by the engine manufacturer for comparison purposes only. Actual operating horsepower and torque will be less
