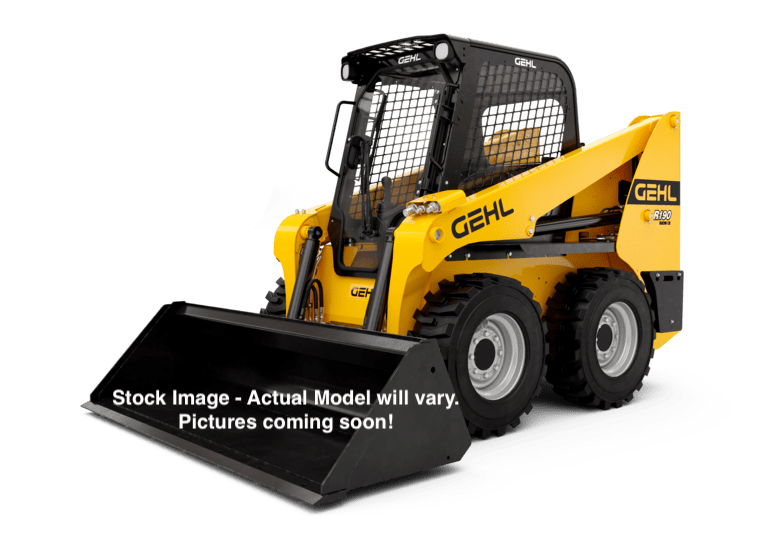

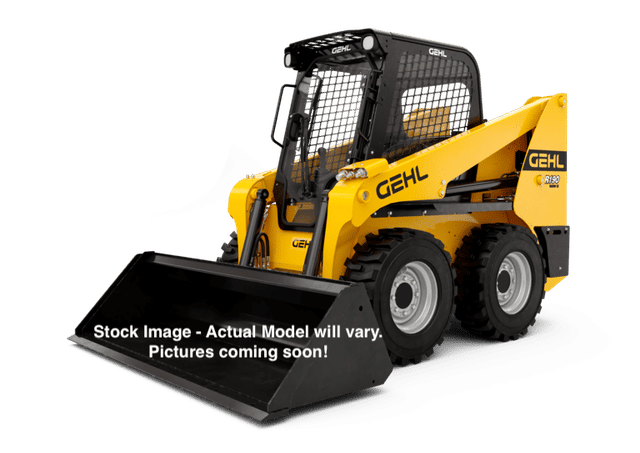

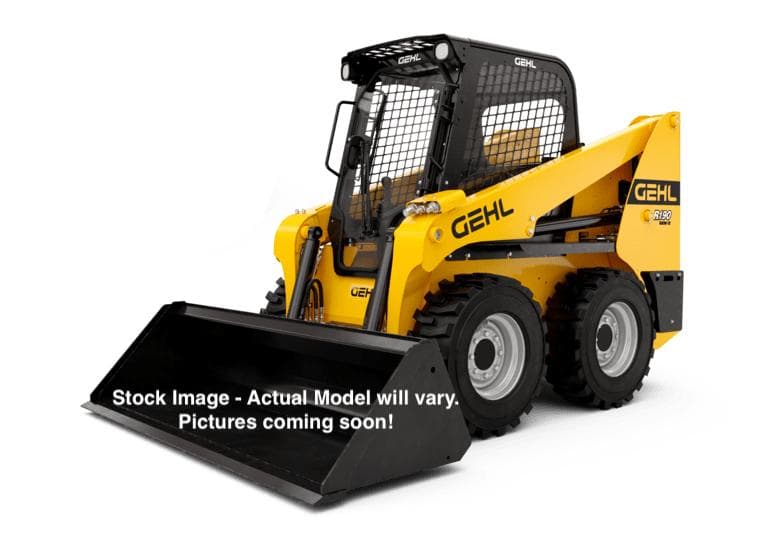

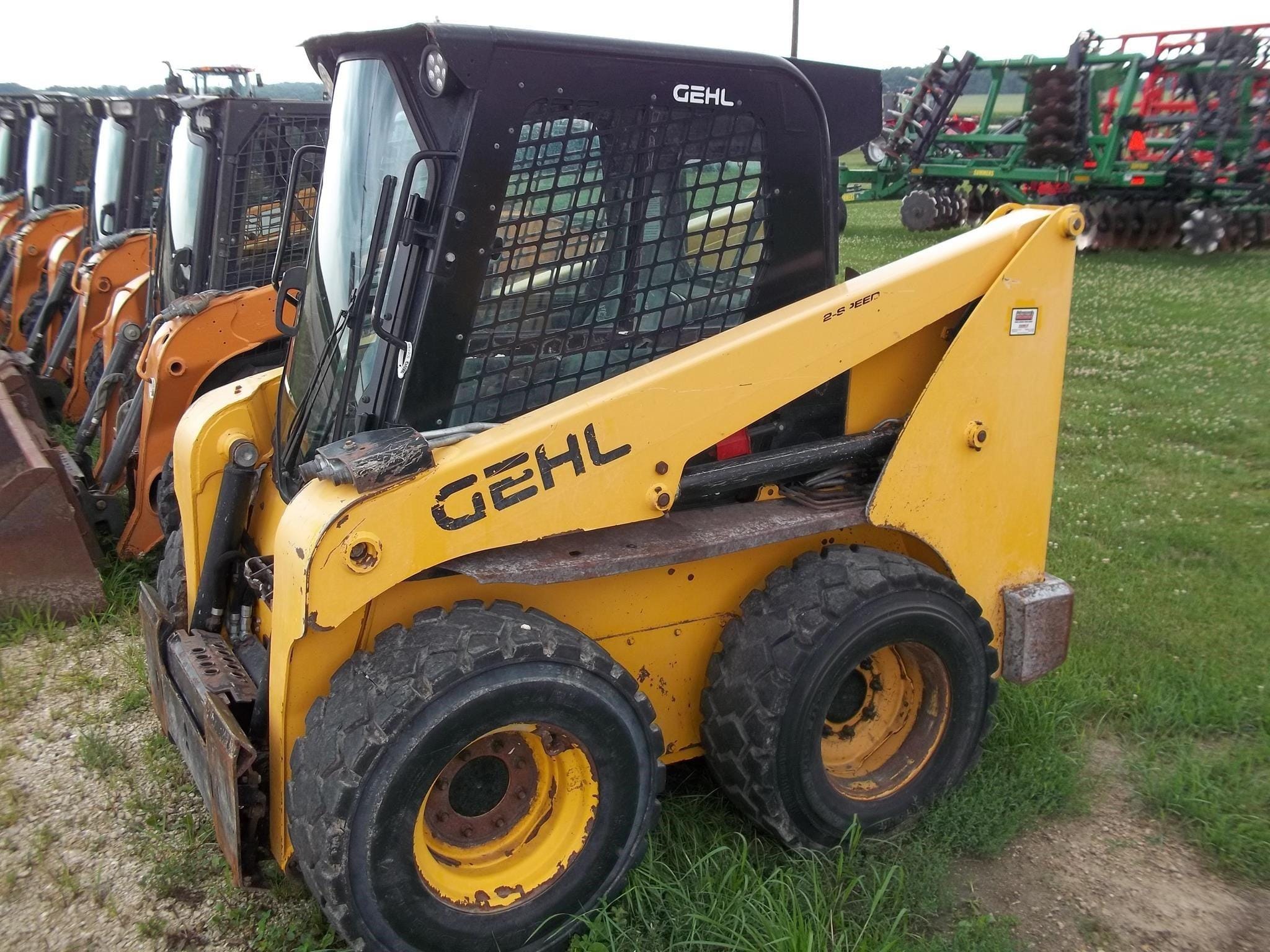

2025 Gehl R190

Description

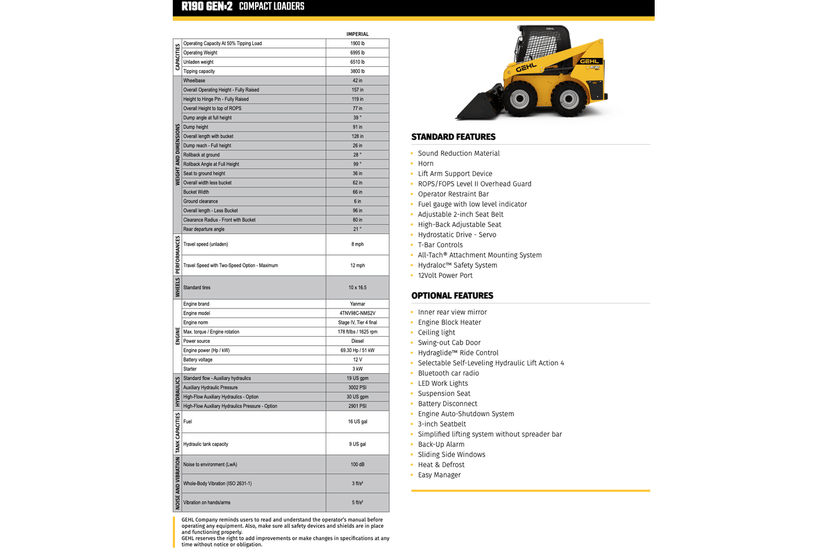

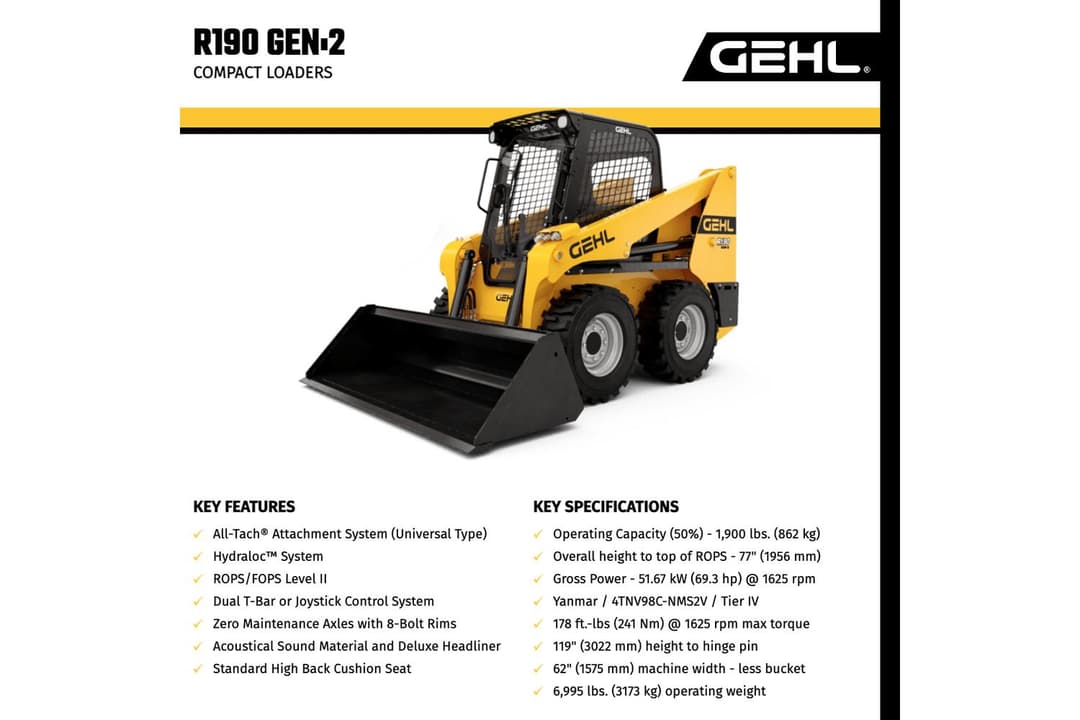

A versatile machine for the construction and agricultural markets. A compact, all-terrain machine that stands up to even the most demanding conditions.Thanks to its wide range of accessories, this machine combines performance, comfort, precision of use and versatility of application. Weight and dimensions Overall Operating Height - Fully Raised: 153 in. Height to Hinge Pin - Fully Raised: 119 in. Overall Height to top of ROPS: 77 in. Dump angle at full height: 38 deg. Dump height: 94 in. Overall length with bucket: 128 in. Dump reach - Full height: 23 in. Rollback at ground: 28 deg. Rollback Angle at Full Height: 99 deg. Seat to ground height: 36 in. Wheelbase: 42 in. Overall width less bucket: 62 in. Bucket Width: 66 in. Ground clearance: 6 in. Overall length - Less Bucket: 96 in. Clearance Radius - Front with Bucket: 80 in. Clearance Circle - Front without Bucket: 46 in. Clearance Circle - Rear: 59 in. Rear Departure Angle: 21 deg. Performances Travel Speed With Two-Speed Option - Maximum: 12 mi/h Travel Speed (Unladen): 8 mi/h Wheels Standard Tyres: 10 x 16.5 Engine Engine brand: Yanmar Engine model: 4TNV98C-NMS2V Engine norm: Stage IV, Tier 4 final Gross Power: 69.30 HP Net Power: 51 kW Max. torque / Engine rotation: 178 ft./lb. / 1625 RPM Power source: Diesel Battery voltage: 12 V Starter: 3 kW Hydraulics Standard flow - Auxiliary hydraulics: 19 US gpm Auxiliary Hydraulic Pressure: 3002 PSI High-Flow Auxiliary Hydraulics - Option: 30 US gpm High-Flow Auxiliary Hydraulics
