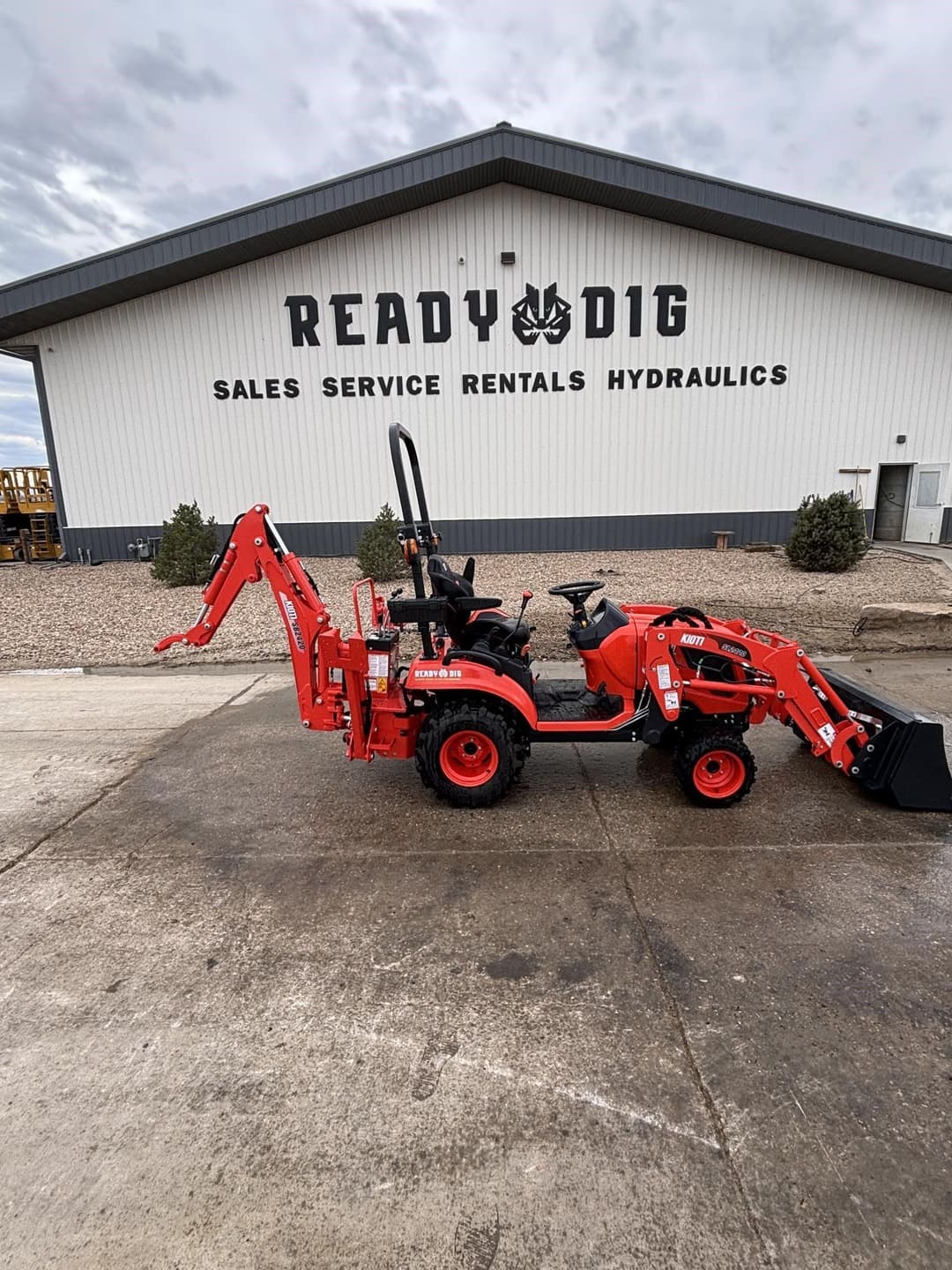

2026 Kioti CS2520

Description

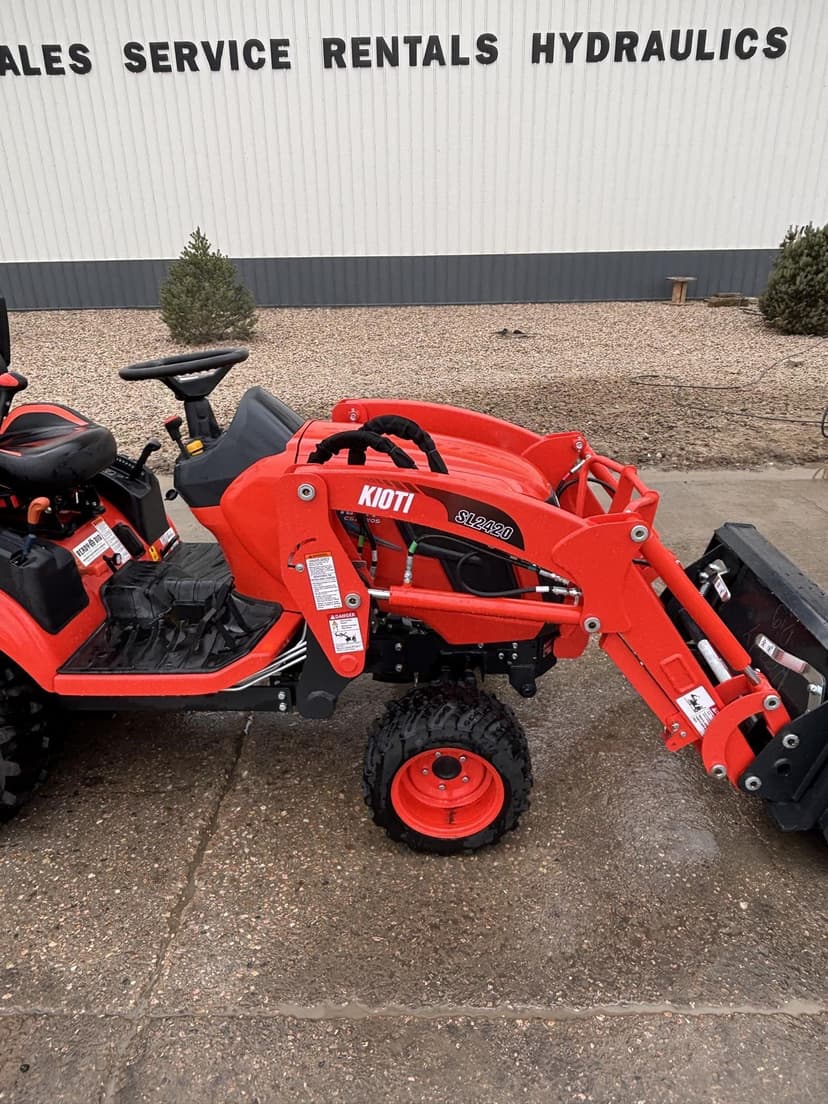

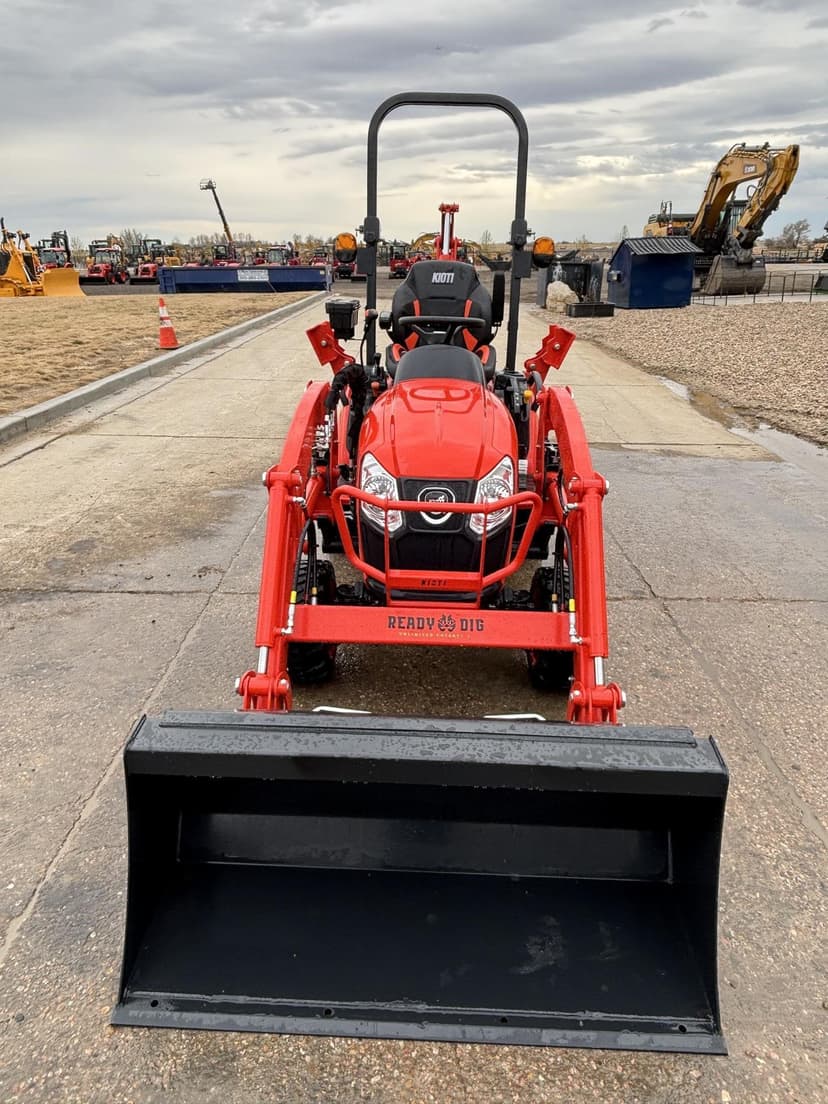

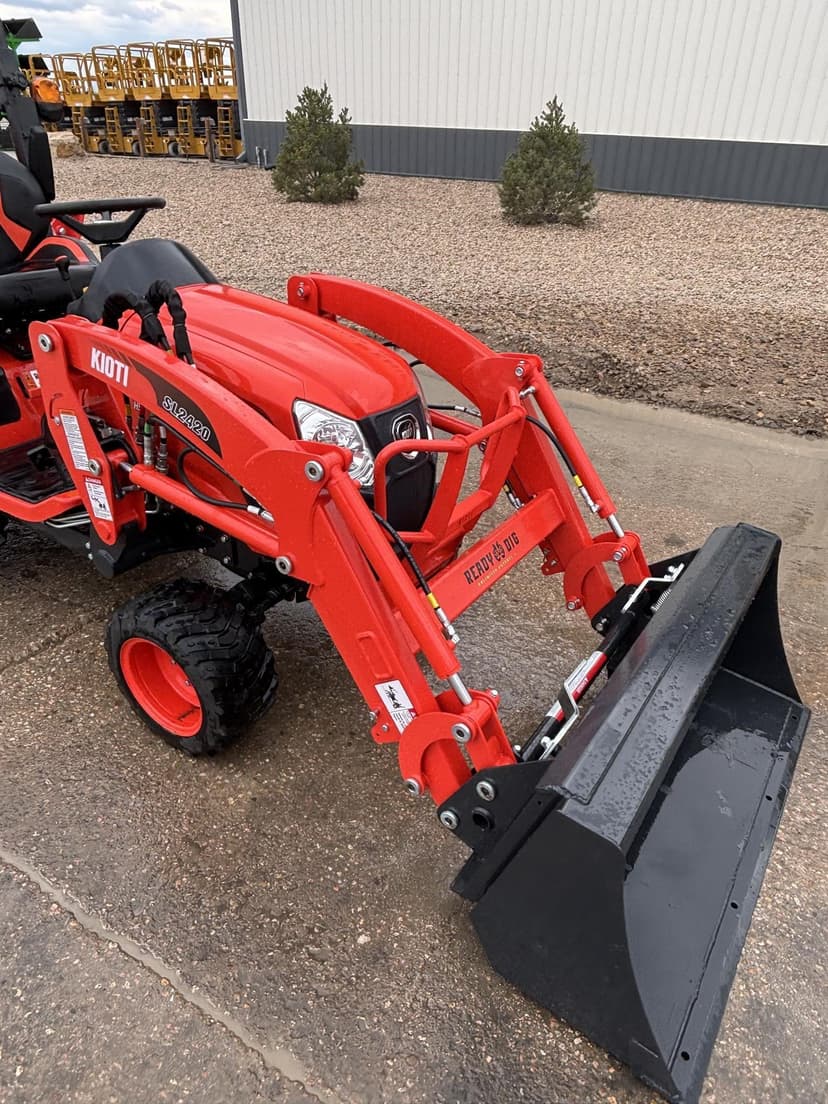

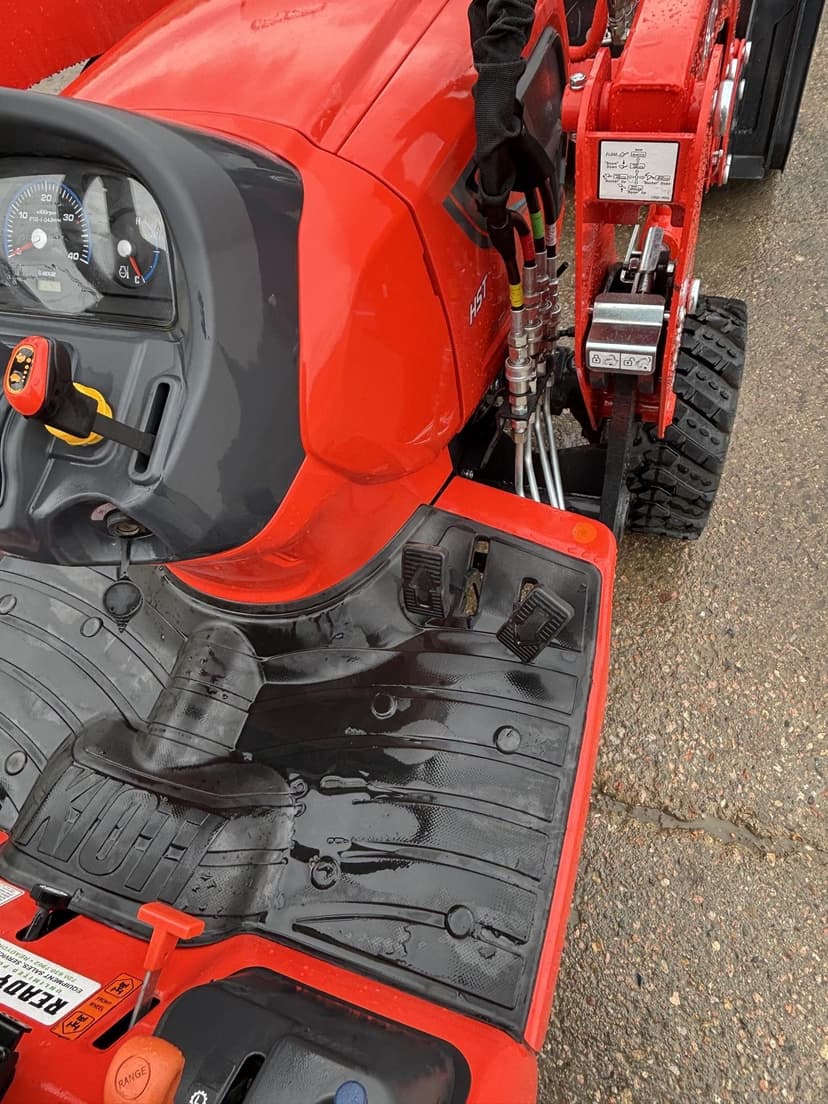

KIOTI CS2520 HST (2026) Built for Muscle. Designed for Comfort. The KIOTI CS2520 HST delivers increased power, compact versatility, and smooth operation in a small-frame tractor. Equipped with an open ROPS platform, hydrostatic transmission, and KL115 front-end loader, this machine is ideal for homeowners, acreage owners, and landscapers who need more horsepower while maintaining maneuverability. Key Features & Specs Engine: KIOTI diesel, 3-cylinder, liquid-cooled Gross Power: 24.5 HP (18.3 kW) PTO Power: 19.6 HP (14.6 kW) Displacement: 61.1 cu in (1.001 L) Rated RPM: 2,600 Fuel Capacity: 6.6 gal (25 L) Transmission: 2-Range Hydrostatic (HST) Drive System: 4WD standard with rear differential lock Steering: Hydrostatic power steering Brakes: Wet multi-disc Hydraulic Flow: 7.7 GPM total 3-Point Hitch: Category 1 (limited) Lift Capacity @ 24" Behind Hitch: 1,102 lbs (500 kg) PTO Type: Independent, rear 540 rpm KL115 Loader Specifications Lift Capacity to Full Height: 992 lbs (450 kg) Max Lift Height to Pivot Pin: 71.3 in (1,810 mm) Breakout Force at Pivot Pin: 1,918 lbs (870 kg) Bucket Width: 50 in Quick-Attach Control: Single-lever joystick with float function Features: Quick attach/detach design, built-in parking stand, compact and maneuverable frame Operator Comfort & Convenience Open ROPS platform for easy access and visibility Adjustable suspension seat Ergonomic operator layout with intuitive controls Hydrostatic transmission for smooth forward/reverse operation Compact fo
