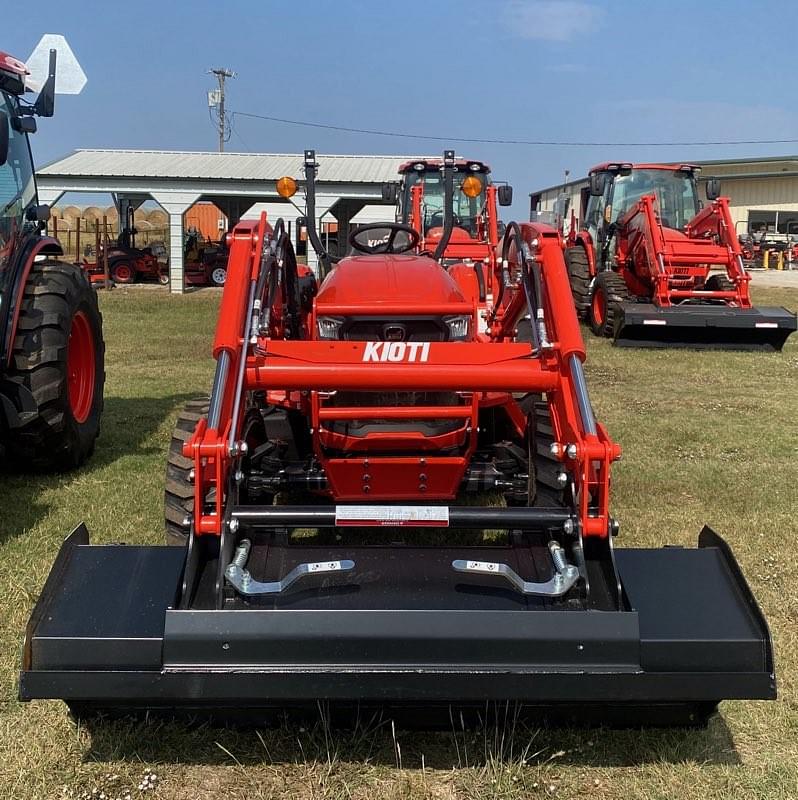

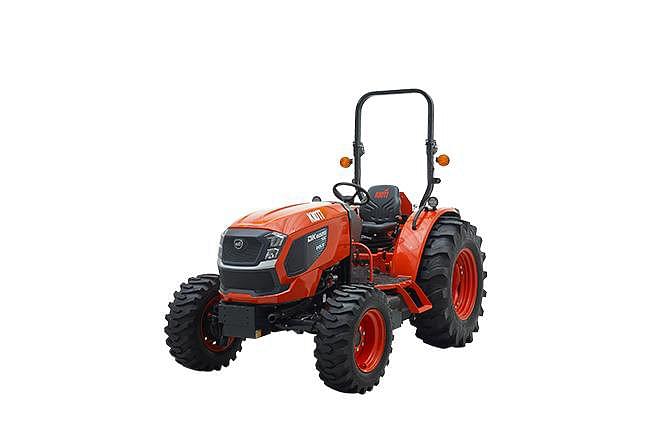

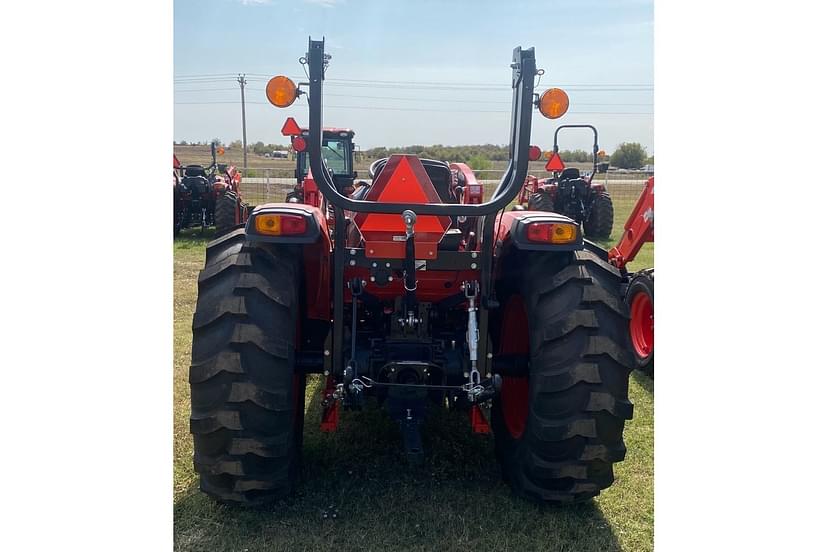

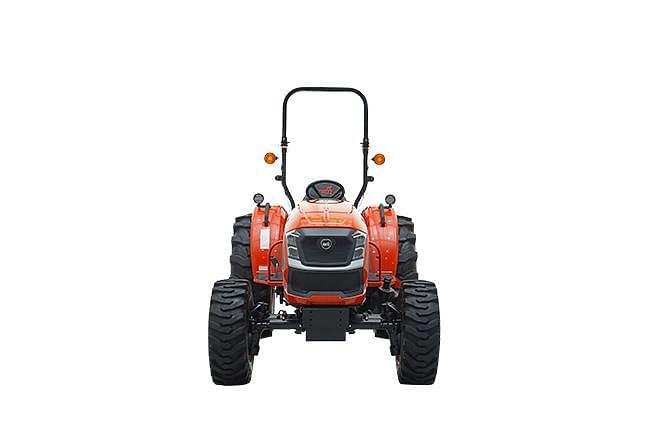

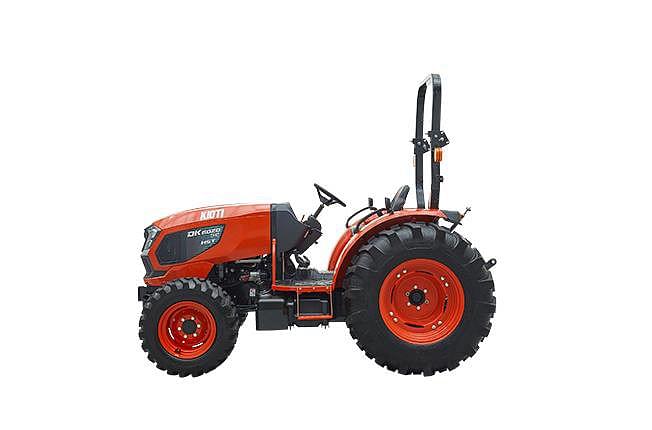

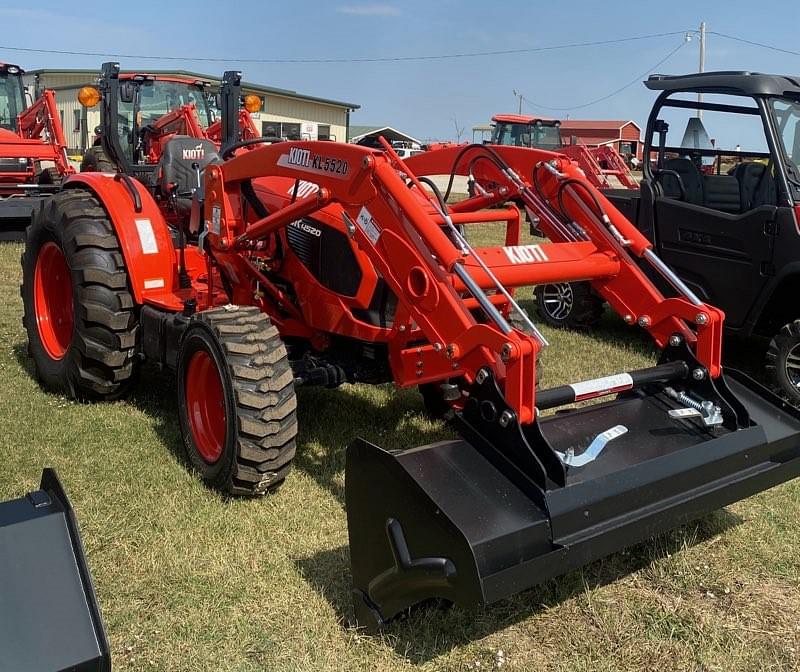

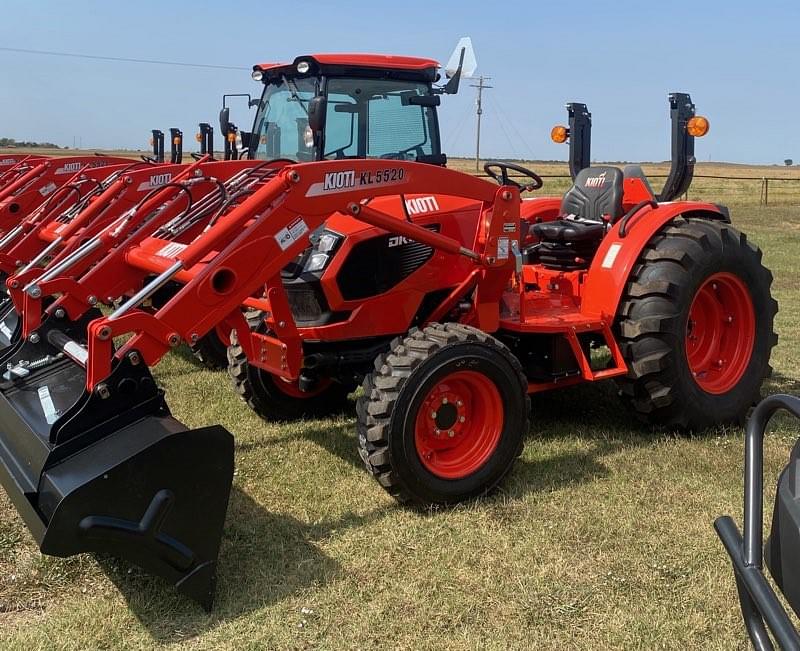

Kioti DK4520

Description

Features Projection and Working Lamp Deluxe Suspension Seat Large Capacity Hydraulic Pump PTO Cruise Fender Grip Tail Lamp High Ground Clearance Center Marker Power and Tilt Steering Transmission Transmission Type: Synchro Shuttle Shuttle: Dry Type Single Stage No. of Travel Speeds - Forward / Reverse: 8 x 8 Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 1.29 mph (2.08 km/h) Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 16.71 mph (26.9 km/h) Power Take-Off PTO Type Trans: Independent PTO Power: 38.9 HP Rear PTO Speeds (1st): 540 rpm Brakes and Clutch Brakes: Wet Multi Disc Clutch: Dry Single Plate Dimensions w/ AG Tire Length w/ 3-point hitch: 124.3 in. (3,157 mm) Width: 62.8 in. (1,596 mm) Height from Top of ROPS Cab: 96.8 in. (2,458 mm) Wheelbase: 71.3 in. (1,810 mm) Ground Clearance: 14.5 in. (368 mm) Front Tread Ag Tires - Min: 49.4 in. (1,254 mm) Rear Tread Ag Tires - Min: 49.3 in. (1,251 mm) Turning Radius w/ Brake: 102.8 in. (2,610 mm) Hydraulics Pump: Gear Pump Capacity (Max. Flow Rate): 14.56 gpm (55.1 L/min) 3-Point Hitch Standard Category: Category I Lift Capacity, 24 in. aft of hitch: 2,716 lb. (1,232 kg) Control Type: Position Weight Weight with Ag Tires: 3,373 lbs. (1,530 kg) Standard Equipment Rear PTO Wet Multi Disc Brakes Drawbar Headlights Parking Brake PTO Shield Optional Equipment Front Weights Deck Mat Clevis Type Drawbar Side View Mirror Fuel Heater Kit Single Remote Hydraulic Valve (Spring/Detent) 2nd Remote Hydraulic Valve (Spring/
