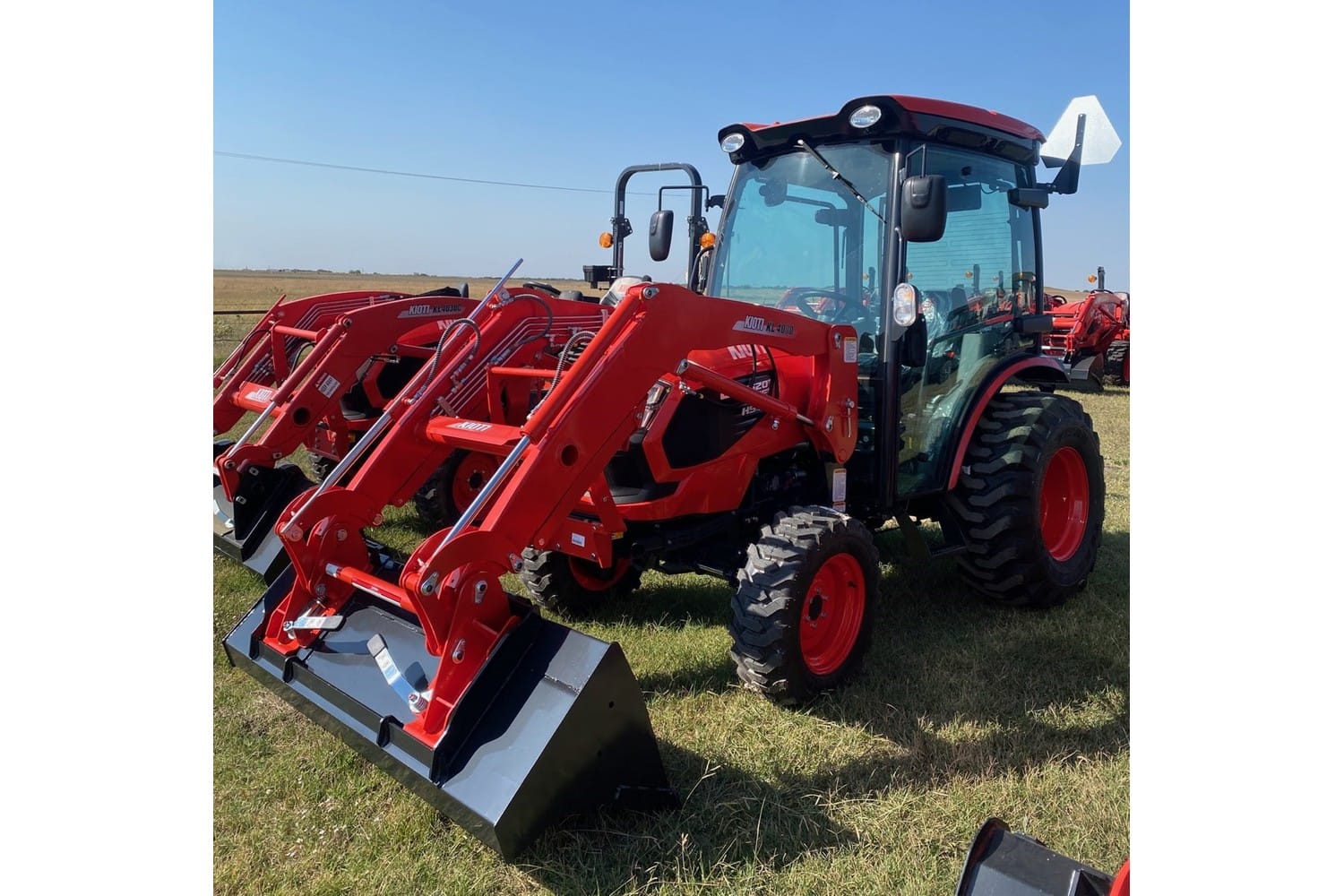

2024 Kioti CK3520SE

Description

Main Features Engine Gross Power: 34.9 HP PTO Type: Independent Transmission Type: HST Shuttle: N/A Features Power Steering with Tilt Deluxe Suspension Seat Rear PTO Single Lever Joystick Factory-Installed Cab Simple Maintenance Center Marker High Ground Clearance Illuminated Dashboard 3-Point Control Lever Powerful HST Transmission with HST Pedal Transmission Transmission Type: HST No. of Travel Speeds - Forward / Reverse: 3 Range Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0 mph (0 km/h) Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 14.8 mph (23.94 km/h) Power Take-Off PTO Type Trans: HST PTO Power: 28.9 HP Rear PTO Speeds (1st): 540 rpm Mid PTO Speeds: 2,000 rpm (Optional) Brakes and Clutch Brakes: Wet Multi Disc Clutch: N/A Dimensions w/ AG Tire Length w/ 3-point hitch: 120.87 in. (3,070 mm) Width: 54.53 in. (1,385 mm) Height from Top of ROPs: 92.52 in. (2,360 mm) Wheelbase: 65.7 in. (1,670 mm) Ground Clearance: 13.39 in. (340 mm) Front Tread Ag Tires - Min: 48.2 in (1,225 mm) Rear Tread Ag Tires - Min: 47.04 in. (1,210 mm) Min. Turning Radius w/ Brake: 107.48 in. (2,730 mm) Hydraulics Total Pump Flow: 11.33 gpm (42.9 L/min) 3-Point Hitch Standard Category: Category 1 Lift Capacity, 24 in. aft of hitch: 1,631 lbs. (740 kg) Control Type: Position Weight Weight w/ Ag Tires w/ROPS: 3,397 lbs. (1,541 kg) Standard Equipment Rear PTO Dual Remote Hydraulic Valve (Spring/Detent) Wet Multi Disc Brakes Joystick Valve Drawbar Front Working Light Rear Working
