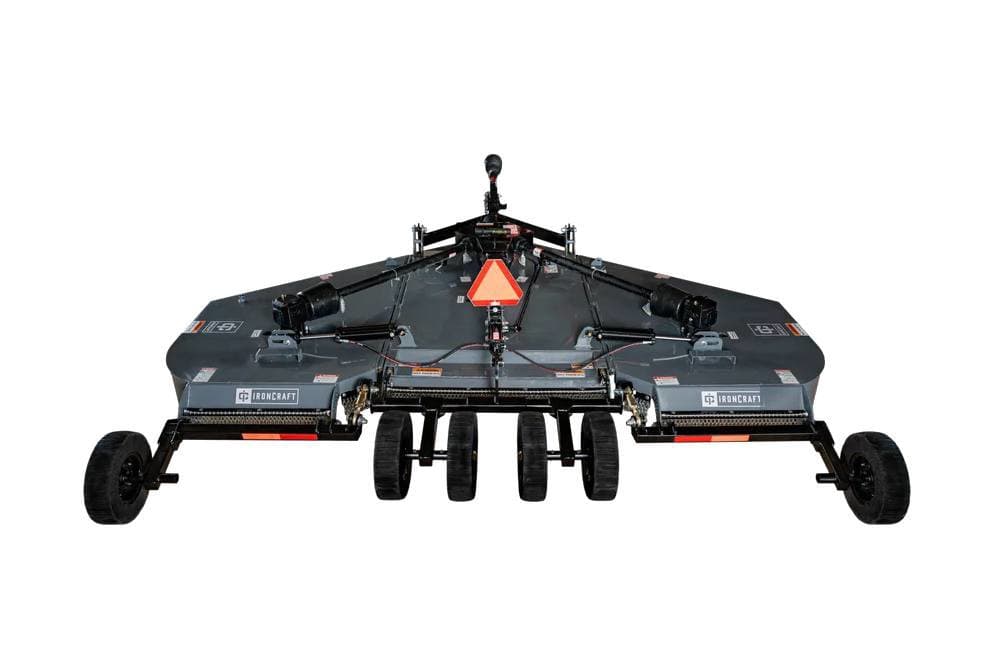

2024 IronCraft 2515

Description

Utilizing a smooth-top deck and spring suspension, the 2515 will make quick work of tough jobs. Designed for use with tractors with a 50 horsepower minimum, this medium-duty Flex-Wing requires only one hydraulic remote. For its 180” cut width, the cutter uses three spindles with two free-swinging blades each, which reduce the shock of impact when a stationary object is contacted. Slip clutches protect the gearboxes and drivelines from damage. Standard equipment includes driveline shields, clutch shields, chain discharge shields and a safety tow chain. Specifications Product Family: 2515 Series Product: 2515 Description: 15' Medium Duty Flex Wing Rotary Cutter RPM: 540 or 1000 HP Required: 50 minimum PTO Working Width: 180" Overall Width: 188" Overall Length: 186" Transport Width: 90" Transport Height: 83" - 87" Tongue Weight: 1500 lbs Weight (lbs): 4500 lbs. w/ 6-26" laminated tires Cutting Height: 2" to 15" Cutting Capacity: 2-1/2" Deck Thickness: 10 GA Height Adjustment: Hydraulic Cylinder Wing Adjustments: Heavy DutyTurnbuckle Jack Stand: Standard Side Bands: 1/4" x 13-1/2" Suspension: 1 Heavy Duty Spring Skid Shoes: Replaceable PTO Drive Shaft: ASAE CAT 6 Wing Drive PTO: ASAE CAT 4 Driveline Protection: Slip Clutch Blade Holder: Round Pan Gearbox Rating: 235 HP Outboard Gearbox Rating: 190 HP Wing Flex: 22 Degrees Down to 88 Degrees Up Wing Free Float: 22 Degrees Down to 45 Degrees Up Blades: 1/2" x 4" Uplift Blade Overlap: 6" Output Shaft Diameter: 2" Wheel Type: 20" or
