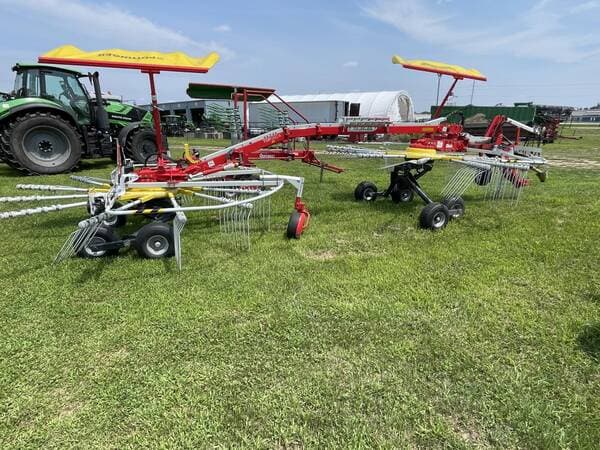

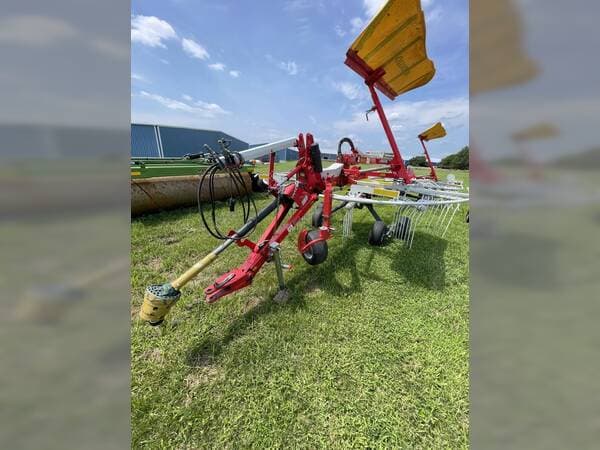

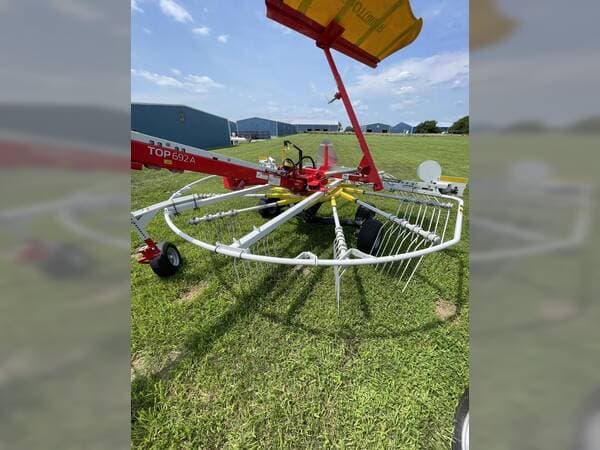

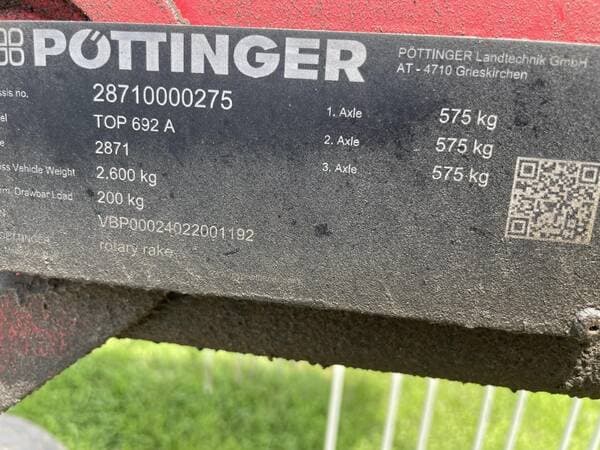

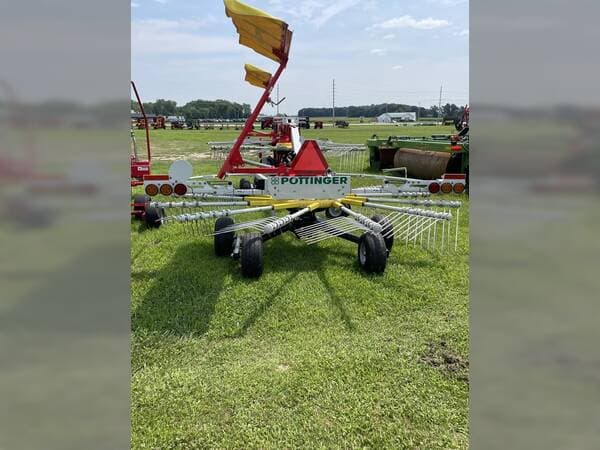

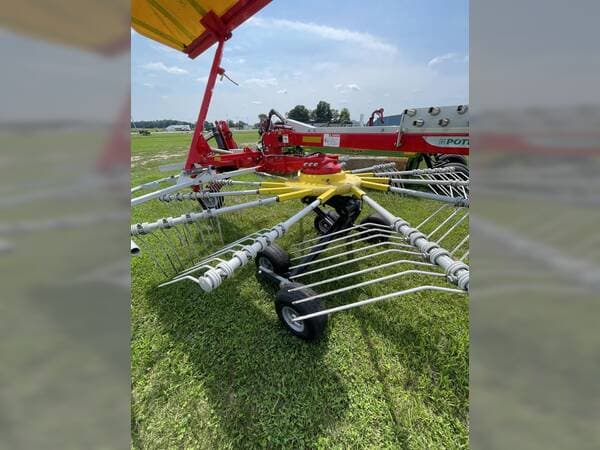

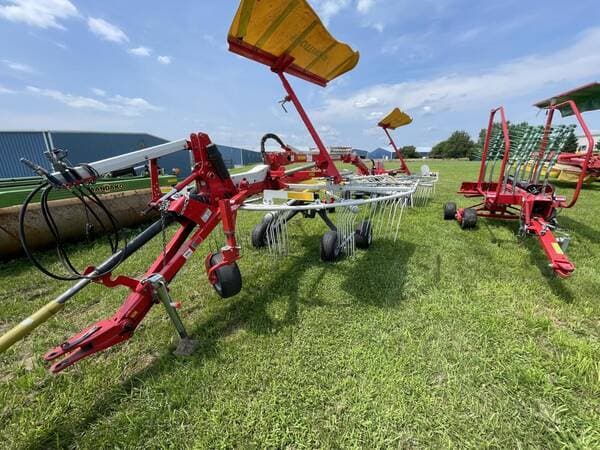

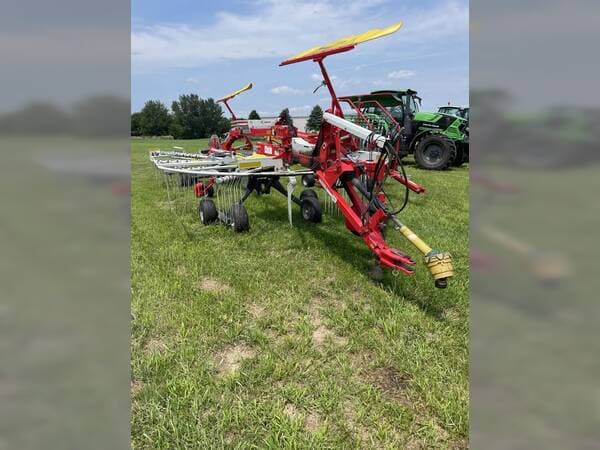

2023 Pottinger Top 692A

Description

Demo Unit Feature Specification Working width 7 m (≈ 22.5‑ft) Transport width 2.13 m (≈ 7 ft) Transport length 7.8 m Weight ≈ 1.75 t (≈ 3,858 lb) Power requirement ~ 40 kW (~ 54 hp) Tine arms per rotor 12 Prongs per tine arm 4 Control configuration Requires one 1‑way and one 2‑way hydraulic connection (“1/1 ew/dw”) Hydraulic working width adjustment allows switching between: A single double swath (rear rotor takes over forage from the front) Or two separate swaths (each rotor forms its own), ideal when forage volume is moderate Independent rotor movement and a gimballed rear rotor mount enable excellent contour following on uneven terrain. Standard tandem axle flotation tyres (18.5×8.5‑8) ensure stable traction; optional AS tyres are available for steeper ground. Mounted jockey wheels (MULTITAST system) help keep tines just above the ground for clean hay and reduced soil contamination TOPTECH PLUS rotor units use sealed, maintenance‑free gearboxes with large cam tracks and robust bearings, minimizing wear and eliminating typical oil‑leak issues. The rotor module is designed for low bearing stress and optimized tine arm loading. The tine arms are easily replaceable, making field repairs quick and simple
