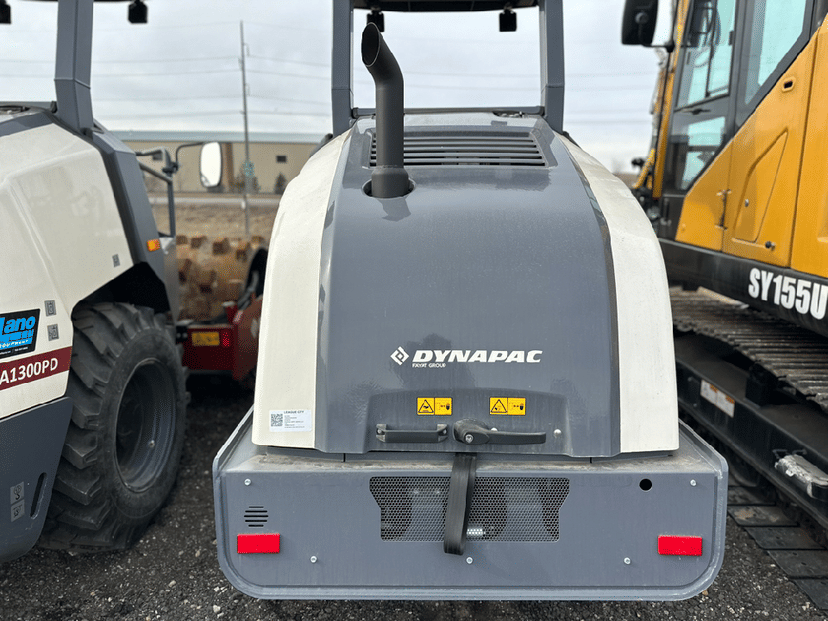

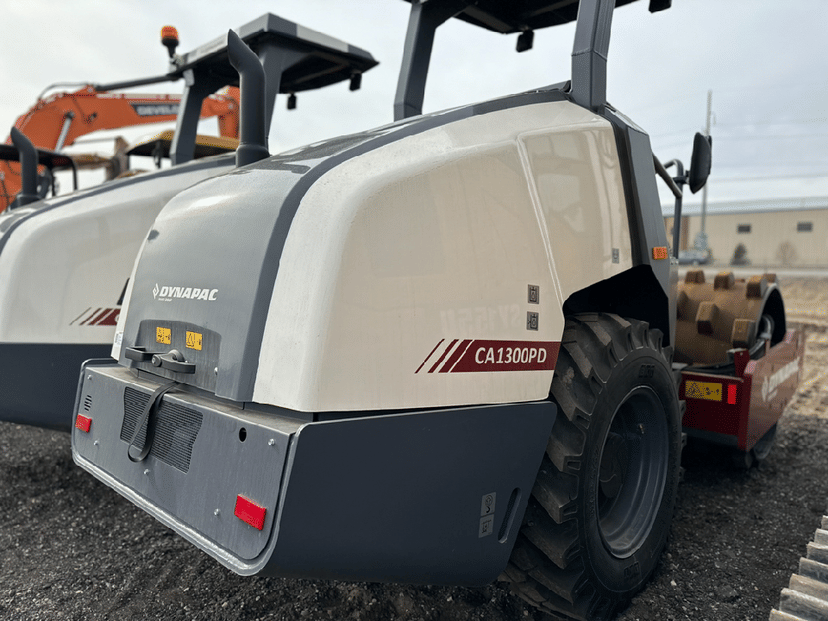

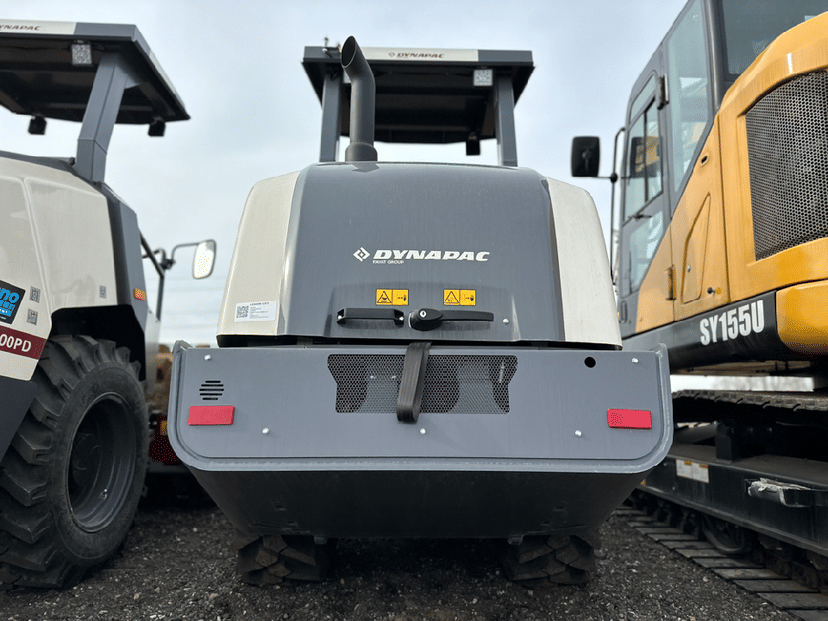

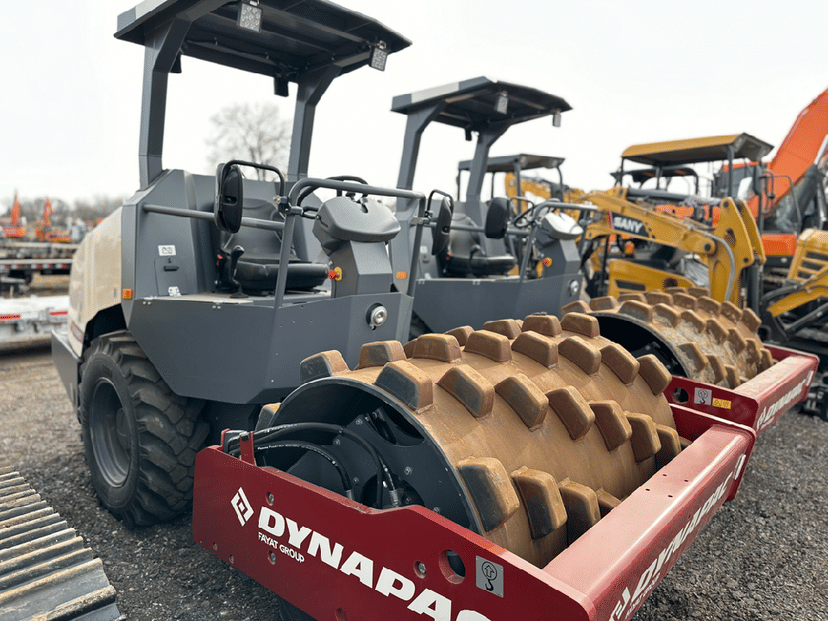

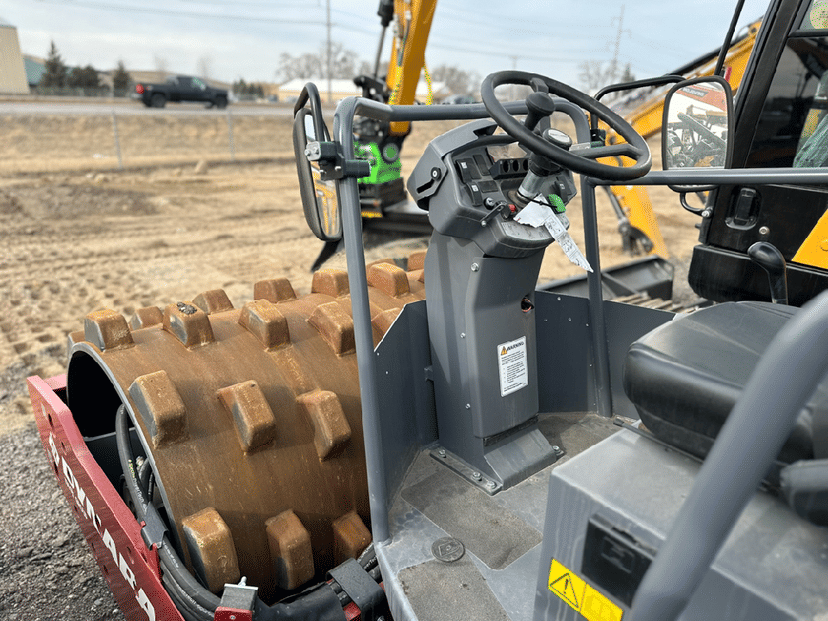

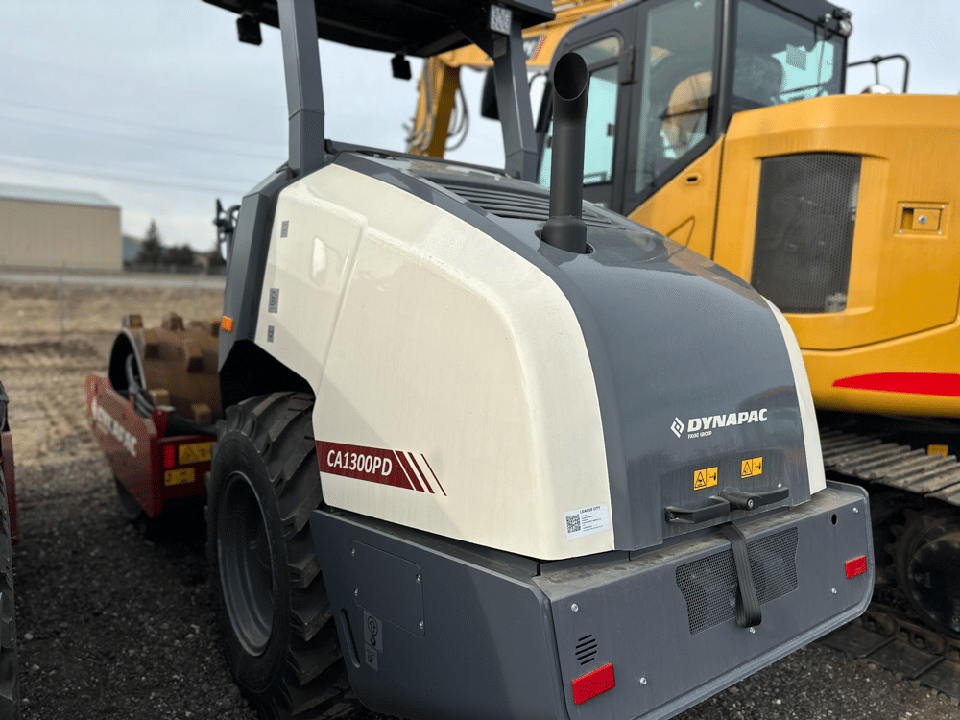

2023 DYNAPAC CA1300PD

Description

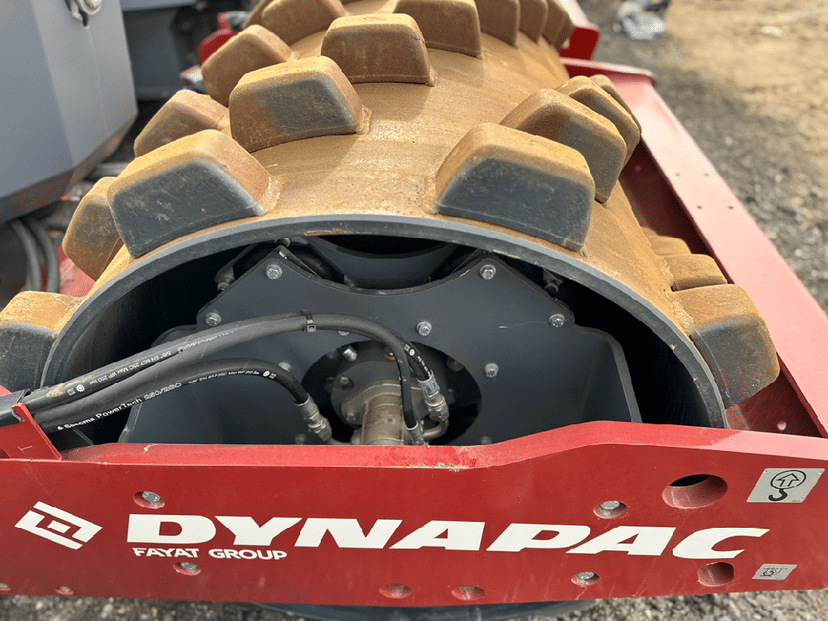

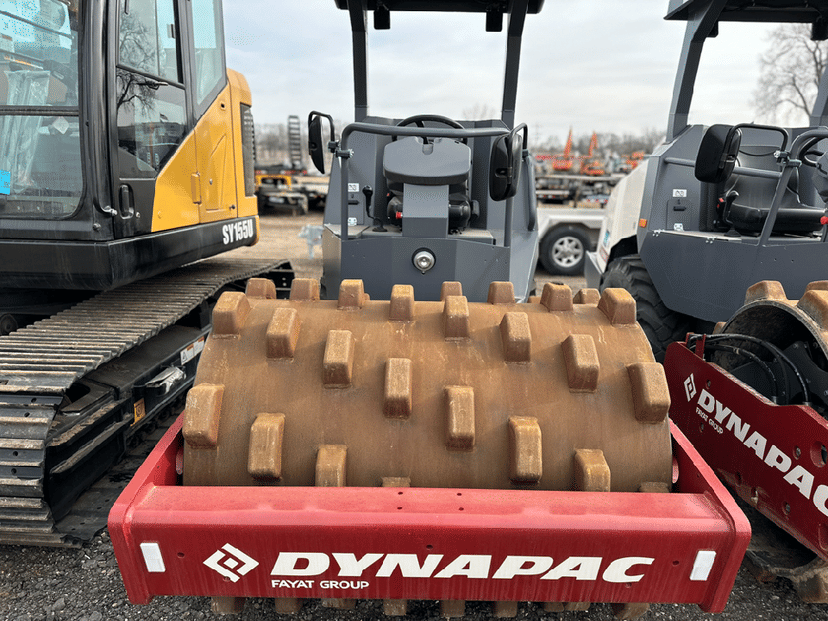

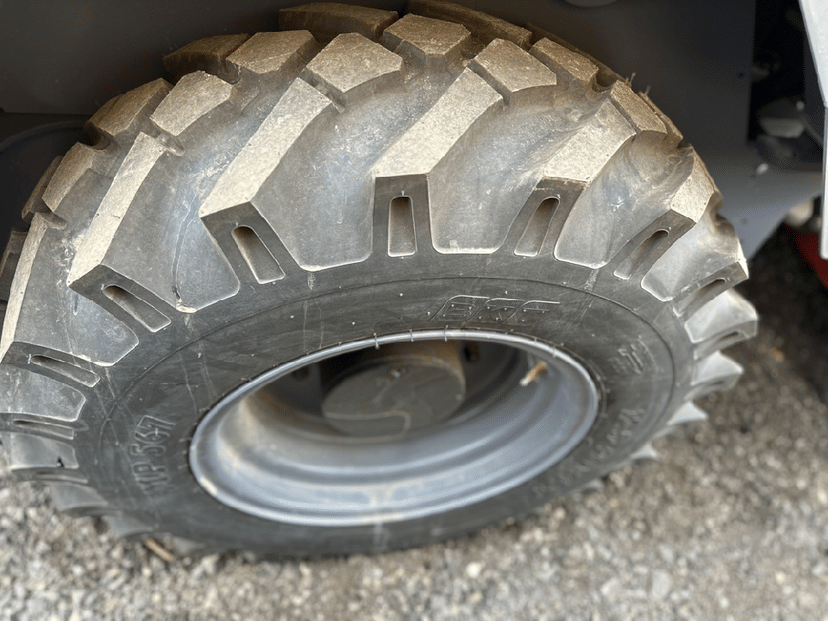

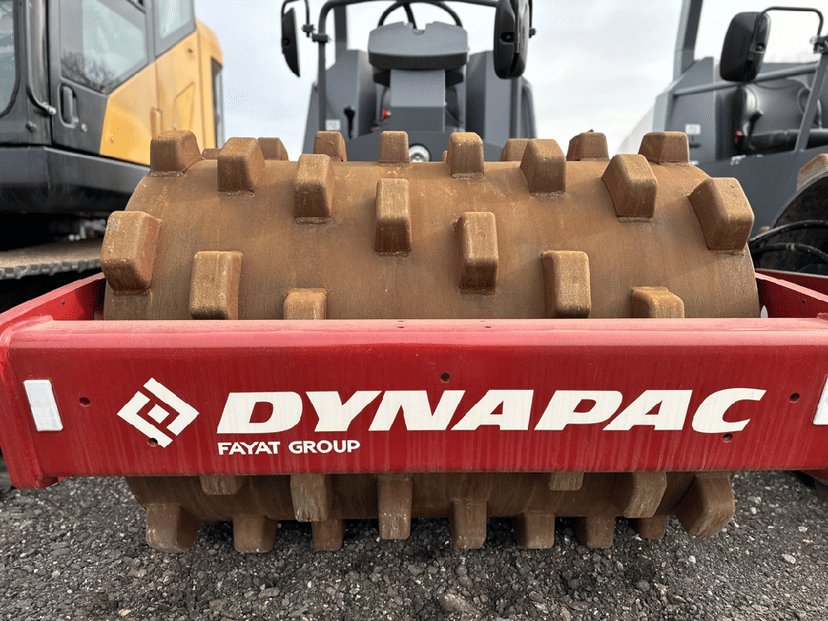

DYNAPAC VIB ROLLER,10,500LBS,SHEEPS FOOT 2023 Dynapac CA1300PD Padfoot Roller - Specs Model: 2023 Dynapac CA1300PD Type: Single drum vibratory padfoot roller Application: Soil and trench compaction Compaction width: 54 in Drum type: Padfoot drum with 72 pads Engine Engine: Yanmar 4TNV98CT-PDCE turbo diesel Horsepower: 72 HP Engine type: Water-cooled Tier 4 Final diesel Fuel tank capacity: 31 gallons Performance Operating speed: 0-4 mph Maximum gradeability: 52% Static linear load: 73 lbs/in Vertical oscillation: ±9 degrees Designed for: Cohesive soil compaction Road base prep Utility trench work Site development Embankment and landfill applications Drum & Compaction Specs Drum width: 54 in Drum diameter: 39 in Drum shell thickness: 0.87 in Pad height: 3 in Pad area: 8.2 sq in Number of pads: 72 Dimensions & Weight Operating weight (ROPS): 10,500 lbs Operating weight (cab): 11,400 lbs Maximum operating weight: 11,800 lbs Overall length: 156 in Overall width: 59 in Overall height: 100 in Turning radius (outside): 13 ft Traction & Tires Drive tires: 12.5-20 tires Differential lock: Limited-slip rear axle Drum drive: Hydraulic drum drive system Excellent traction for slopes and uneven terrain Operator Features Open ROPS operator platform Rubber-mounted operator station Adjustable suspension seat Backup alarm Hour meter display ECO operating mode Emergency stop system Lockable engine hood Cup holder and onboard storage Construction Features Heavy-duty articulated frame Hydraulic d
