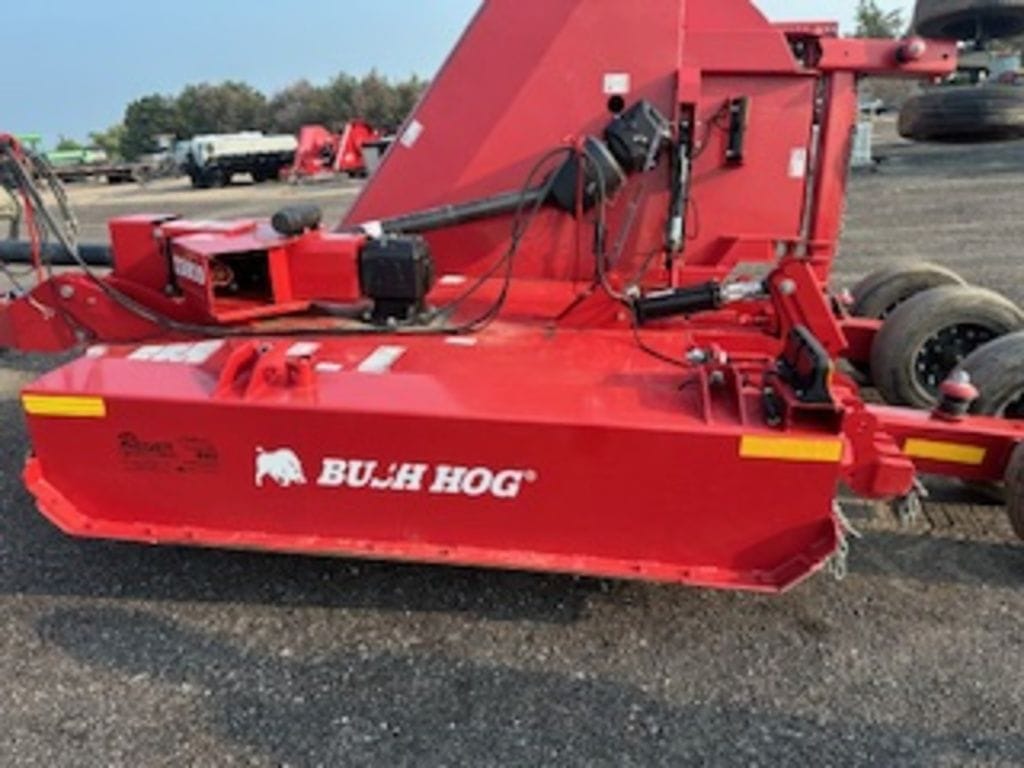

2023 Bush Hog 13810

Description

2023 Bush Hog® Flex-Wing Rotary Cutter 3810 The right-hand wing model 3810 is easier to service and has features that maximize performance and durability in all uses. Made especially for highway right-of-way mowing or other areas where the Flex-Wing with a single wing is the best fit, the 3810 is unsurpassed in performance, durability, and reliability. Features may include: Wing skids are 3/8” thick for extended wear and outside edges are turned up at 45° to stop heavy ground contact thatmight damage the sidebands. Center section blades properly align with center wheels to closely cut out the bottom of ditches. Grease fittings and spring steel bushings at axle pivot points for longer life. Free wing float without movement of the hydraulic cylinder rod is 22° down and 45° up. CONSTRUCTION Industry first, massive three-inch output shaft with up to 27% more splines than smaller shafts for maximum transmission of torque to blade pan. The Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked as often as you walk around the machine. Never climb onto the cutter again to check the gearbox oil levels. Bush Hog’s E-Z lube drivelines are quick and easy to service. All grease fittings on the PTO CV driveline and wing drivelines align for quick location of grease points. Since all grease fittings on all drivelines are in an up position on every 5th revolution, service times are re
