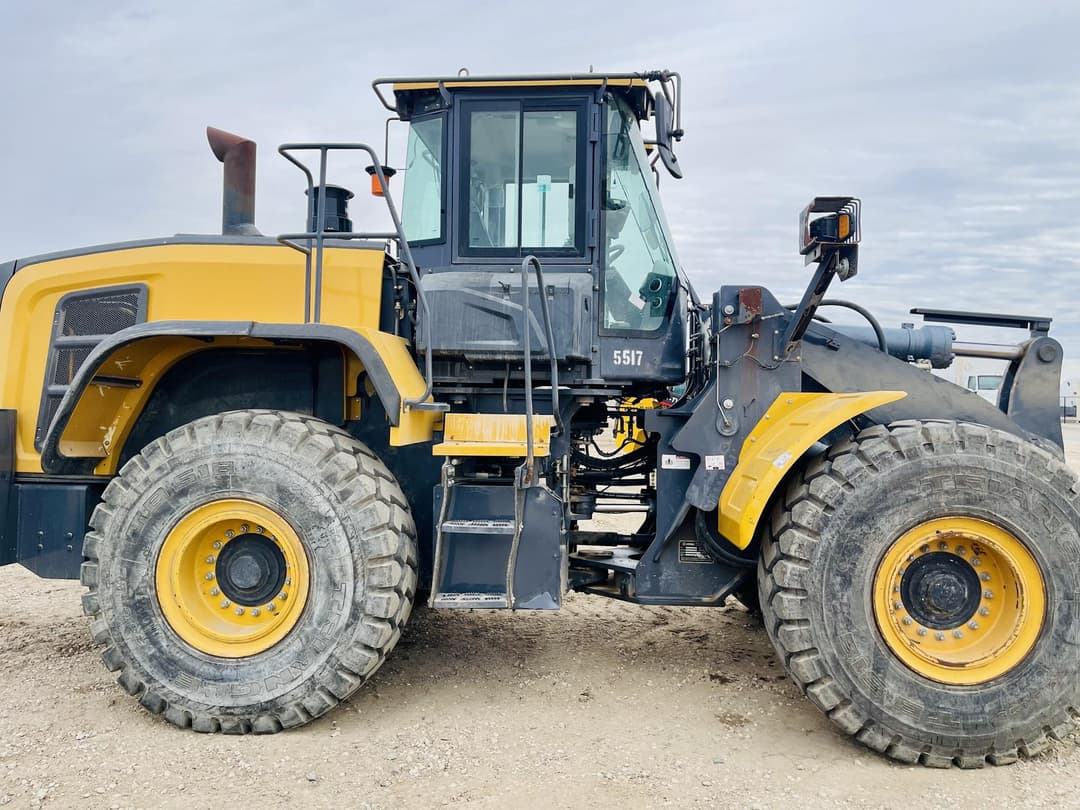

2022 XCMG XC958U

Description

Full Specs & Features Performance Engine: Cummins QSB6.7 Horsepower: 225 HP Torque: ~730 lb-ft Operating Weight: 39,683 lbs Bucket Capacity: 4.2 yd³ (GP bucket) Rated Load: 8,000–9,000 lbs depending on configuration Breakout Force: 34,170+ lbs Tractive Force: ~35,000 lbs Lift & Reach Max Hinge Pin Height: 13 ft 3 in (159 in) Dump Clearance at Full Height: 10 ft 5 in (125 in) Dump Reach at Full Height: 3 ft 3 in (39 in) Lift Arm Type: Z-bar loader linkage Boom Raise Time: ~5.8 seconds Full Cycle Time: ~10.3 seconds Transmission & Axles Transmission: ZF 4-speed powershift Top Speed: 24–25 mph Axles: HD planetary axles with wet-disc brakes Differential Lock: Limited-slip (front & rear) Hydraulics Hydraulic Pump: Kawasaki load-sensing Hydraulic Flow: ~81 gpm Hydraulic Pressure: ~3,626 psi Control System: Joystick pilot hydraulic controls Dimensions Overall Length (bucket on ground): 28 ft 5 in Wheelbase: 10 ft 10 in Overall Width: 8 ft 7 in Overall Height: 11 ft 6 in Fuel & Fluids Fuel Tank: 79 gallons Hydraulic Tank: 45 gallons DEF Tank: 6.5 gallons Cab & Operator Station ROPS/FOPS Certified Climate-controlled cab Air suspension seat Rear-view camera Bluetooth/Radio High-visibility glass layout LED work light package Digital display with diagnostics Other Features Heavy-duty quick coupler Ride Control system Auto-lube (if equipped) Reve
