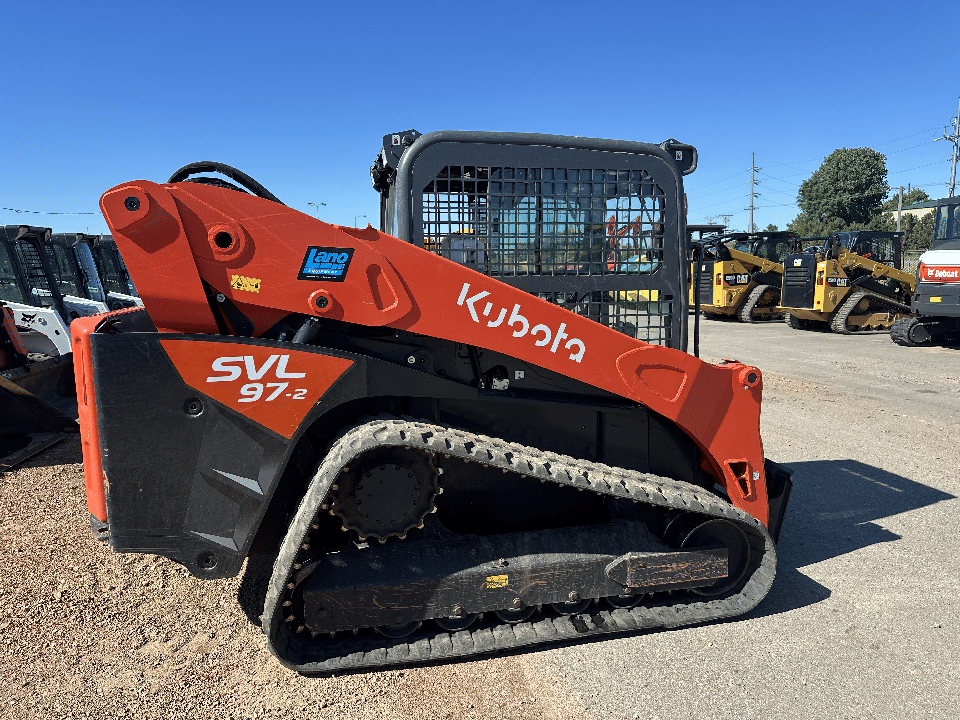

2022 Kubota SVL97-2HC

Description

CTL-A/C Cab/Heat-Hyd QC-Camera-18" Track-Bucket 2022 Kubota SVL97-2HC Compact Track Loader Specs Model Information Model: SVL97-2HC Manufacturer: Kubota Type: Compact Track Loader Year: 2022 Configuration: Enclosed Cab with Heat & A/C, Hydraulic Quick Coupler, Rear Camera, 18" Rubber Tracks Includes: General Purpose Bucket Engine Engine Model: Kubota V3800-CR-TIE5 Engine Type: 4-Cylinder Turbocharged Diesel Gross Horsepower: 96.4 HP Net Horsepower: Approximately 92 HP Displacement: 230 cu in (3.8 L) Fuel Type: Diesel Tier 4 Final Emissions Compliant Common Rail Fuel Injection Performance Rated Operating Capacity: 3,459 lb Tipping Load: 9,880 lb Breakout Force: 7,961 lb Lift Path: Vertical Lift Excellent lift height and reach for truck loading and material handling Hydraulics Standard Auxiliary Hydraulic Flow: 23.1 GPM High Flow Auxiliary (Optional): 40.0 GPM System Pressure: 3,480 PSI Hydraulic Quick Coupler Advanced Multifunction Hydraulics Attachment-ready for mulchers, snow blowers, grapples, trenchers, and more Transmission & Drive Hydrostatic Transmission Two-Speed Travel Low Range Speed: 5.1 MPH High Range Speed: 8.4 MPH Automatic Downshift Function Outstanding pushing power and traction Dimensions Length Without Bucket: 116.9 in Length With Bucket: Approximately 145 in Width Over Tracks: 72.8 in Height to Top of Cab: 83.3 in Height to Bucket Hinge Pin: 128.3 in Reach at Maximum Height: 40.7 in Ground Clearance: 11.7 in Weight Operating Weight: Approximately 11,574 lb O
