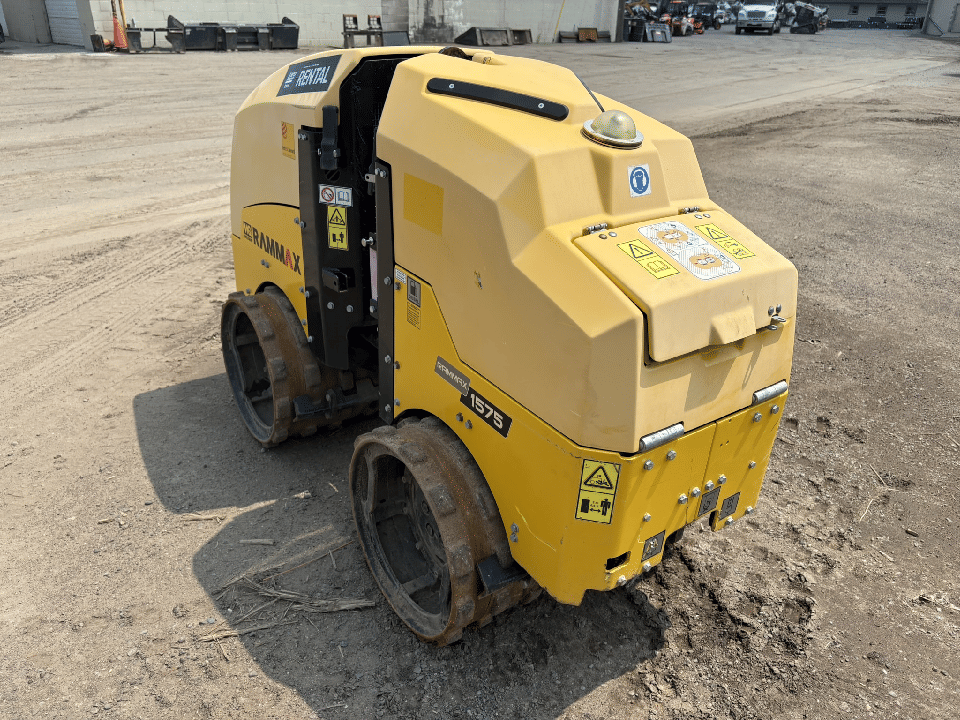

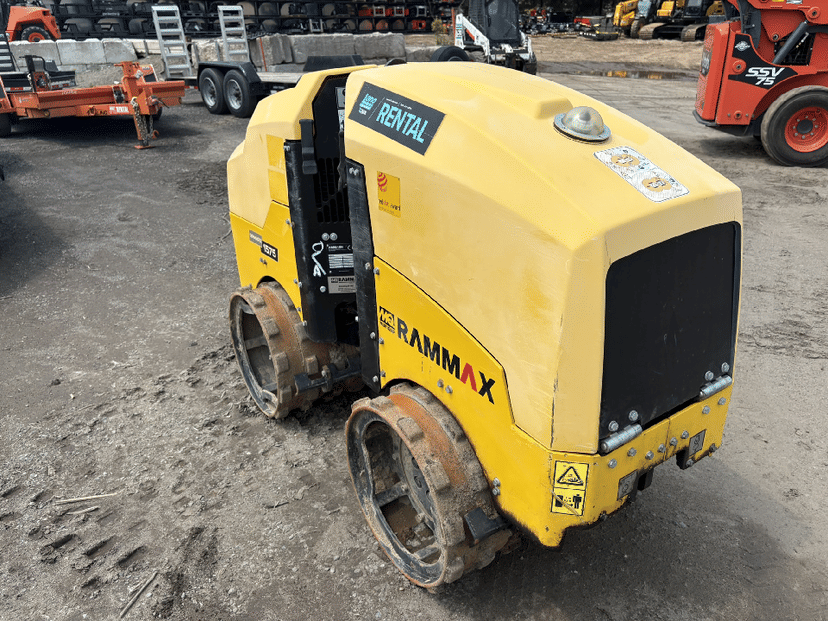

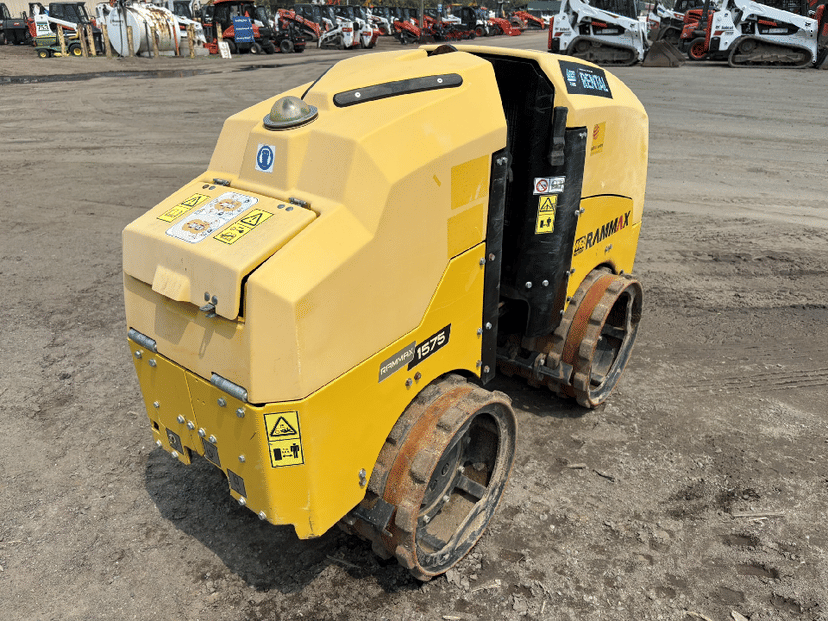

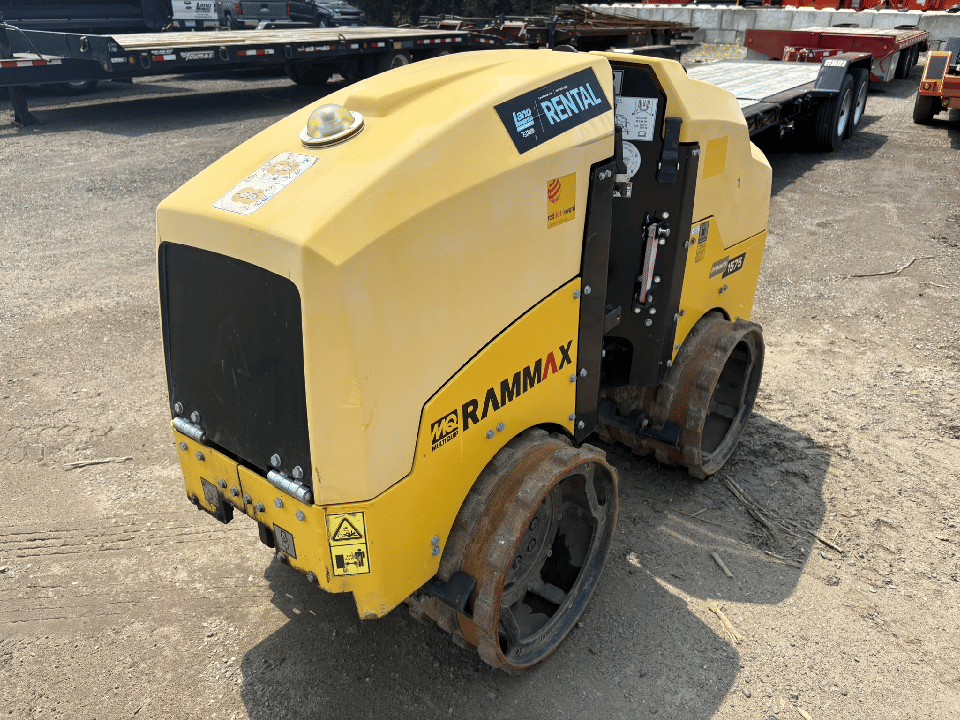

2021 Multiquip RX1575

Description

Articulating Trench Roller-Infared Remote-33 drum 2021 Multiquip RX1575 Remote Trench Roller - Specs Model: 2021 Multiquip RX1575 Type: Remote-controlled articulating trench roller Application: Trench backfill and cohesive soil compaction Roller style: Padfoot / sheepsfoot drum design Engine Engine: Yanmar 3TNV80 diesel Horsepower: 20.4 HP Engine type: Liquid-cooled 3-cylinder diesel Fuel type: Diesel Fuel tank capacity: 7.4 gallons EPA Tier 4 compliant Compaction Performance Centrifugal force: 16,860 lbs (75 kN) - High amplitude 8,430 lbs (37.5 kN) - Low amplitude Vibration frequency: 2,460 VPM (41 Hz) Travel speed: High: 148 ft/min Low: 82 ft/min Maximum gradeability: 25% with vibration 30% without vibration Drum & Roller Specs Drum width: Adjustable 24" or 33.5" working width Drum type: Padfoot / sheepsfoot drums Drum extensions: Removable drum rings available Inside turning radius: 61 in Outside turning radius: 86 in Remote Control System Wireless remote: Infrared remote control Operating range: Up to 65 ft Safety shutdown: Automatic stop within 8 ft of operator Remote charging: Solar and electric charging capability Cable-connected backup control: Standard Dimensions & Weight Overall length: 78 in Overall width: 24 in narrow drum setup 33.5 in wide drum setup Overall height: 52 in Operating weight: 3,087 lbs (24" drums) 3,197 lbs (33" drums) Construction Features Articulating oscillating center joint Heavy-duty steel frame construction Four drum scrapers for material cle
