2021 Kubota SVL97-2HC

Description

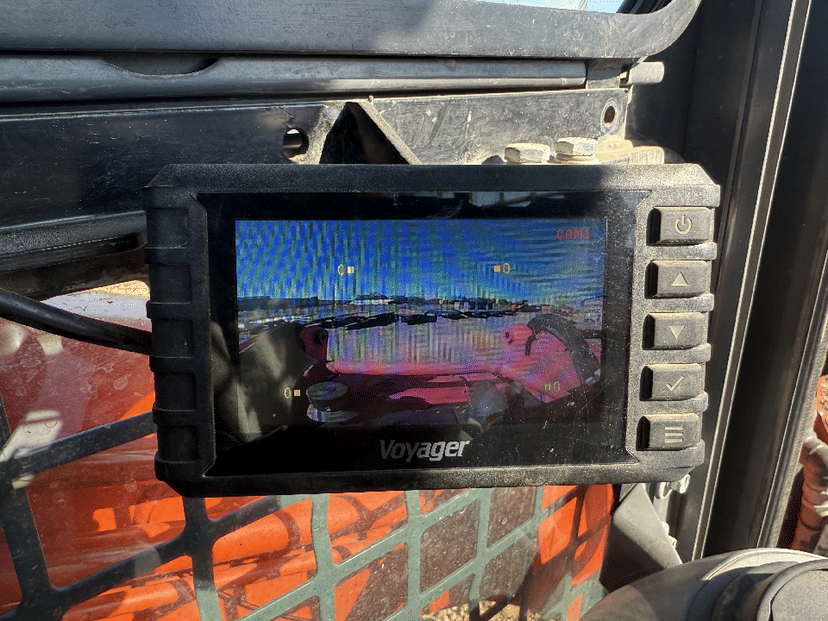

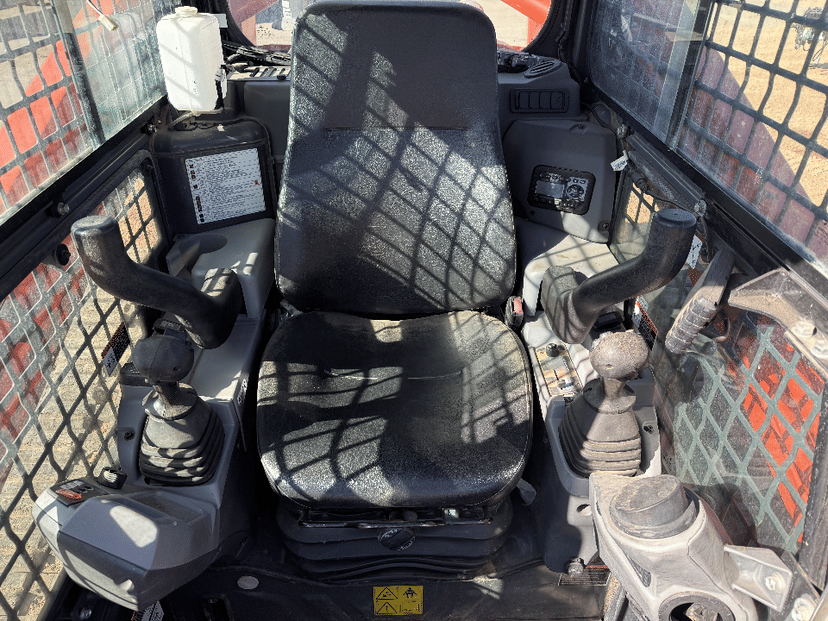

CTL-A/C Cab/Heat-Hyd QC-Cold Pkg-Camera-18 Trk Engine: Engine Model: Kubota V3800-TIEF4 Engine Type: 4-cylinder, turbocharged diesel, Tier 4 Final compliant Gross Horsepower: 96.4 hp @ 2,400 rpm Displacement: 230 cu in (3.8 L) Fuel Type: Diesel Fuel Tank Capacity: 28.8 gallons (109 L) DEF Tank Capacity: 3.4 gallons (13 L) Performance: Rated Operating Capacity (ISO 35%): 3,200 lb (1,451 kg) Tipping Load: 9,143 lb (4,147 kg) Breakout Force (Bucket): 7,961 lb (3,611 kg) Breakout Force (Lift Arm): 6,742 lb (3,058 kg) Traction Force: 12,178 lb (5,524 kg) Operating Weight: 11,299 lb (5,125 kg) Hydraulic System: Standard Auxiliary Flow: 23.1 gpm (87.6 L/min) High Flow: 40.0 gpm (152 L/min) System Pressure: 3,553 psi (24.5 MPa) Hydraulic Tank Capacity: 10.1 gallons (38.1 L) Total Hydraulic System Capacity: 17.96 gallons (68 L) Travel Speed: Low Speed: 5.0 mph (8.0 km/h) High Speed (2-Speed): 7.3 mph (11.7 km/h) Dimensions: Overall Length (without bucket): 154.6 in (3,929 mm) Width (over tracks): 77.2 in (1,962 mm) Width with Bucket: 80.0 in (2,032 mm) Height (top of cab): 83.3 in (2,116 mm) Height to Bucket Hinge Pin: 128.5 in (3,264 mm) Ground Clearance: 11.5 in (293 mm) Track Length on Ground: 65.6 in (1,667 mm) Track Width: 18.0 in (450 mm) Ground Pressure: 4.4 psi Lift Path: Vertical lift design for maximum reach and height Self-leveling lift arms (upward motion) Capacities: Fuel Tank: 28.8 gallons (109 L) DEF Tank: 3.4 gallons (13 L) Features (HC / Cold Package Configuration): E
