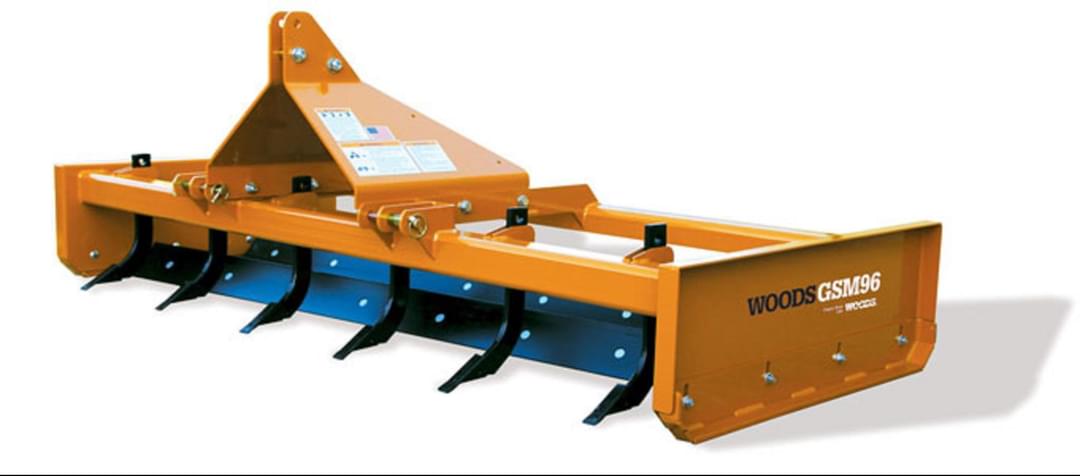

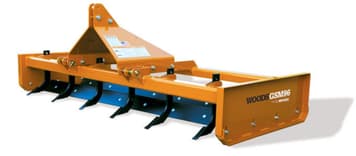

2020 Woods GSM96P

Description

GSM96 Grading Scrapers 95-inch working width Tractor HP range: 30-65 hp Three-point hitch: Cat 1 and 2 16-inch box height – one of the tallest in the industry Adjustable skid shoes and shanks for more precise road shaping Approachable leading edges and structural reinforcements keep scraper stronger, longer Reversible/replaceable high-carbon cutting edges ASABE quick-hitch compatibility ensures faster, easier and safer hook-ups GENERAL Tractor Engine HP 30 - 65 hp Tractor hitch Cat 1 & 2 Working width 95" Overall width 100" Overall length 46" Box Height 16" Number of scarifiers 6 Weight with scarifiers 802 lbs Weight without Scarifiers 712 lbs Cutting Edge .5" x 6" Scarifier adjustment -2.5, -1.0, +0.5, +2.5 Skid Shoe Adjustment -1.0 to +0.5 Lower hitch design clevis ASABE Quick Hitch Compatible yes
