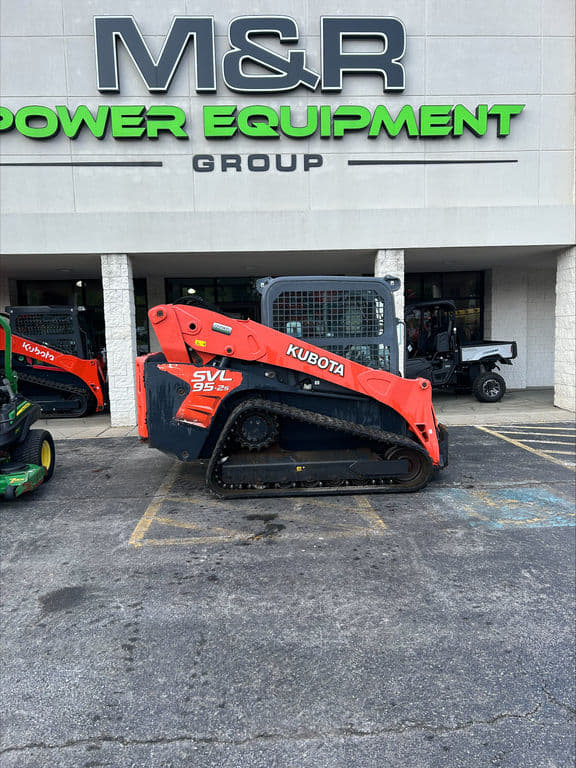

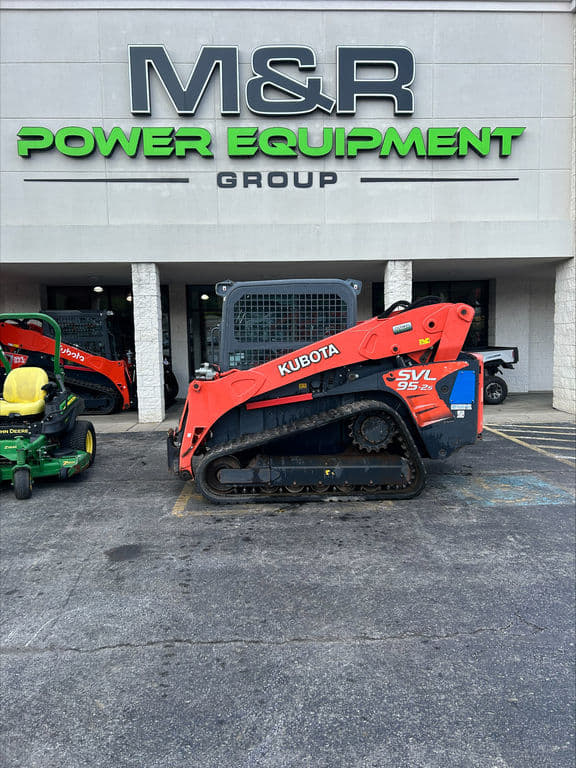

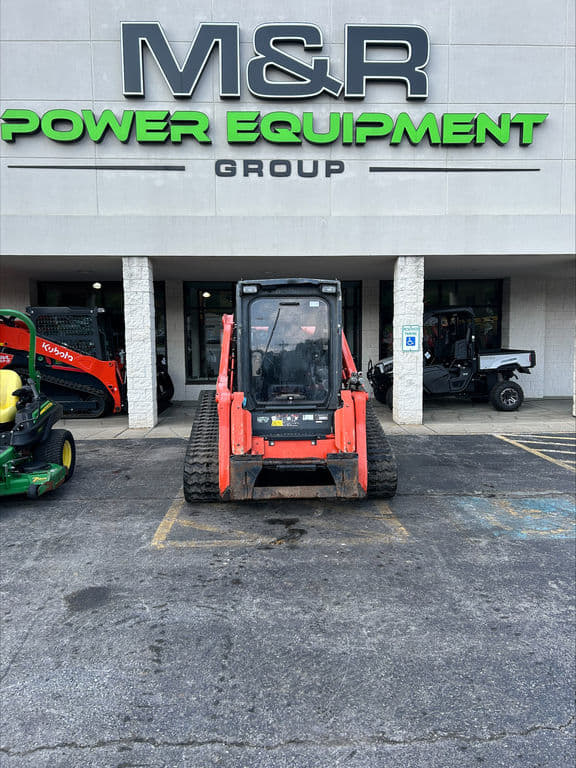

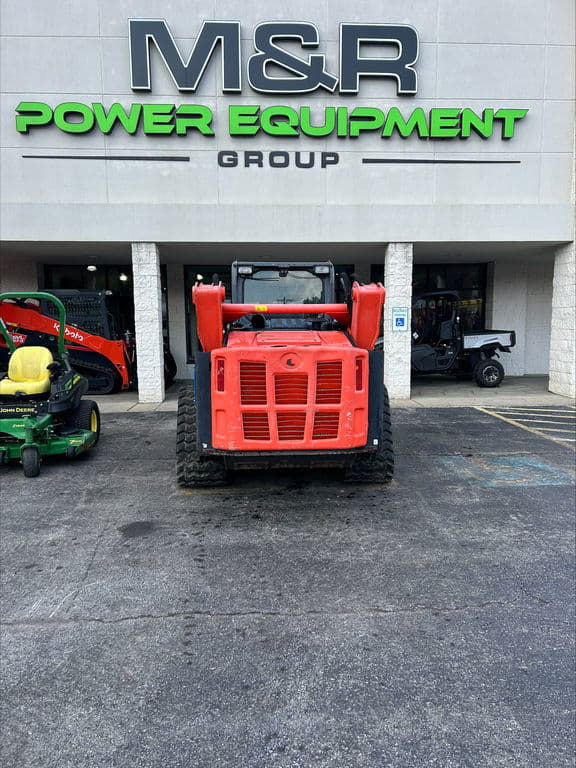

2020 Kubota SVL95

Description

Engine and Driveline Engine Model: Kubota V3800-TIEF4 Type: Vertical 4-cylinder liquid-cooled diesel, turbocharged Rated Power: 87 hp (65 kW) Fuel System: Direct injection with High Pressure Common Rail Emission Level: Tier 4 Transmission: 2-speed hydrostatic Drive System: Hydrostatic with hydraulic disc brakes Hydraulic System Pump Flow: 23 gpm (87.2 lpm) or 40 gpm (151.6 lpm) Hydraulic System Type: Gear pump Loader Boom: Vertical-lift with self-leveling bucket Lifting and Performance Max Lift Height (to hinge pin): 128.5" (3,265 mm) Breakout Force: 7,960 lbs (3,620 kg) Rated Operating Capacity: 4,570 lbs (2,072 kg) Tipping Load: 9,140 lbs (4,144 kg) Tracks and Undercarriage Track Type: Rubber Track Width: 17.7" (450 mm) Track Rollers: Triple flange, 5 per side Dimensions and Weight Operating Weight (including 165 lb operator): Approximately 9,140 lbs (4,144 kg) Hydraulic Tank Capacity: 23.8 gallons (90 L) Fuel Tank Capacity: 33.5 gallons (127 L) DEF Tank Capacity: 5.3 gallons (20 L) Additional Features Cooling System: Forced circulation with water pump Air Cleaner: Cartridge, dry element Lubrication: Pressure lubrication by gear pump Electrical: Alternator charging system The Kubota SVL95-2S is designed for heavy-duty construction and landscaping tasks, offering a combination of high lift capacity, robust hydraulic performance, and durable rubber tracks suitable for multi-terrain operation. Its vertical-lift boom provides excellent reach and breakout force for loading and m
