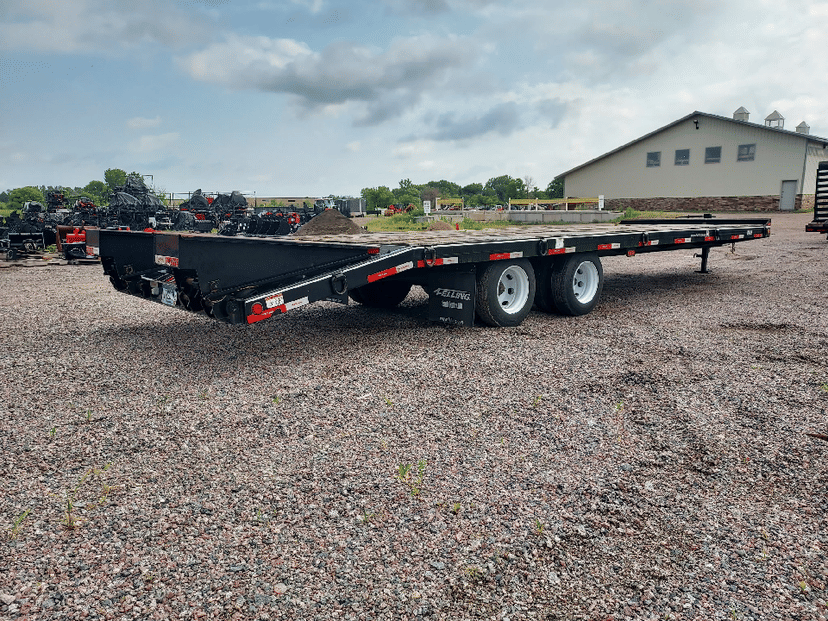

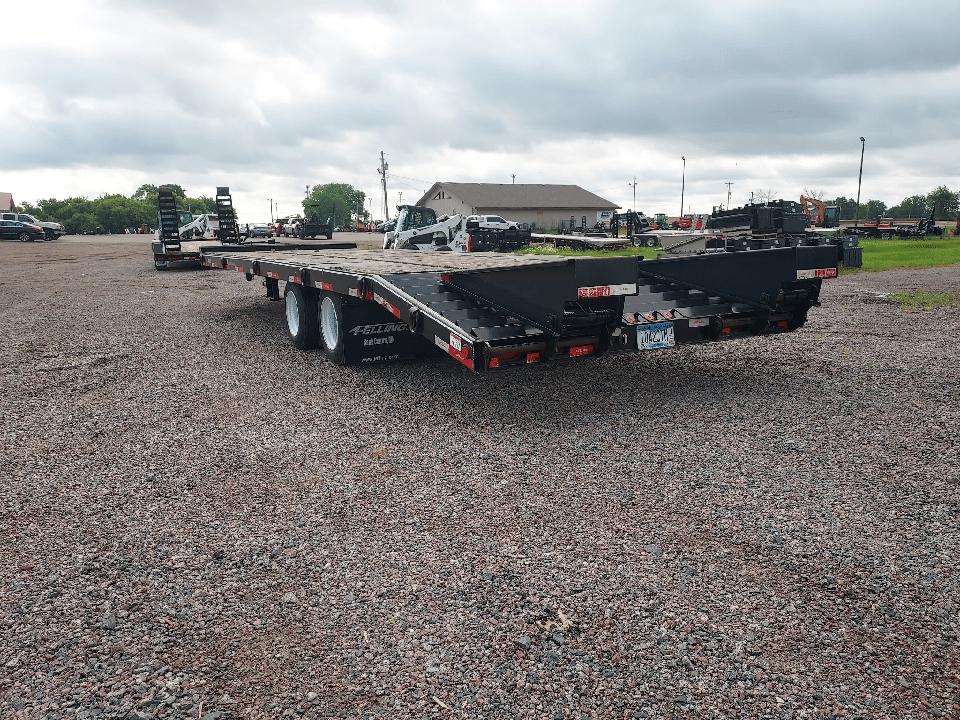

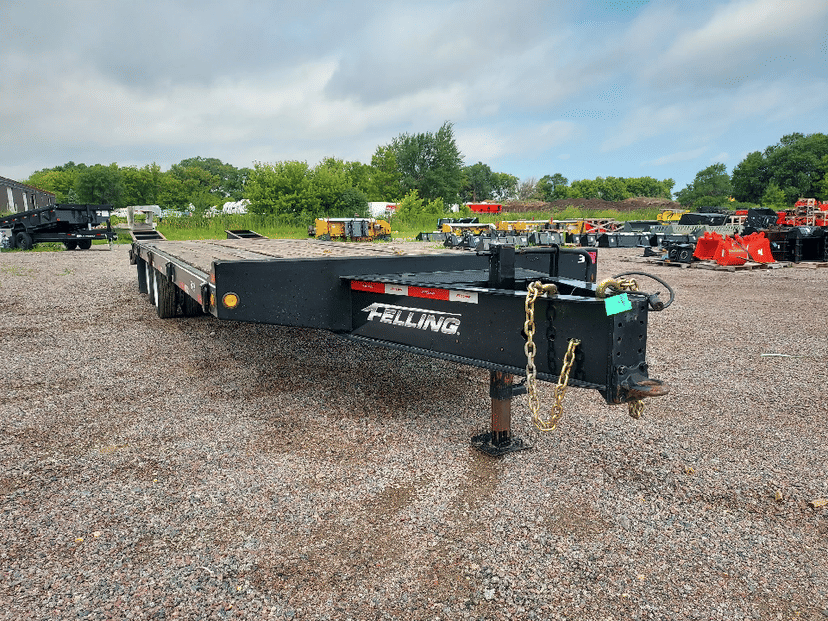

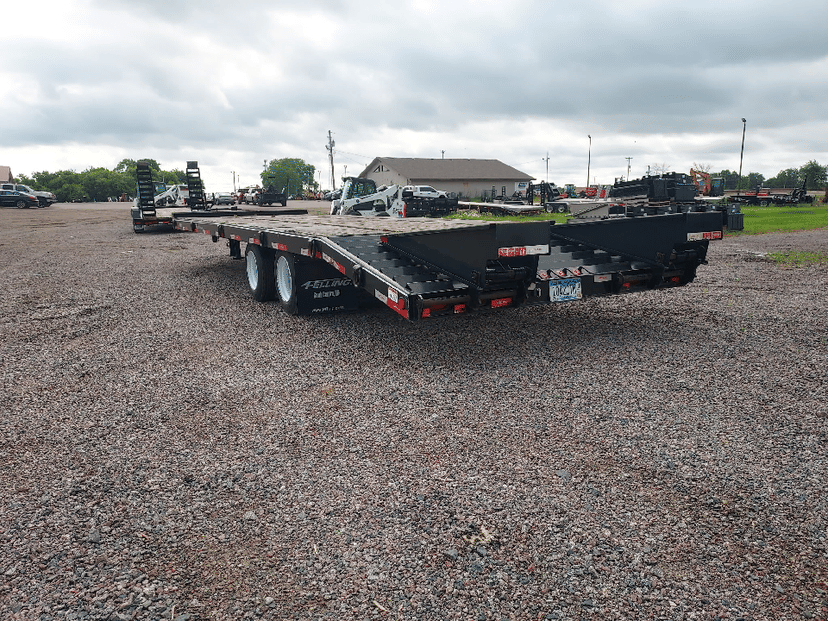

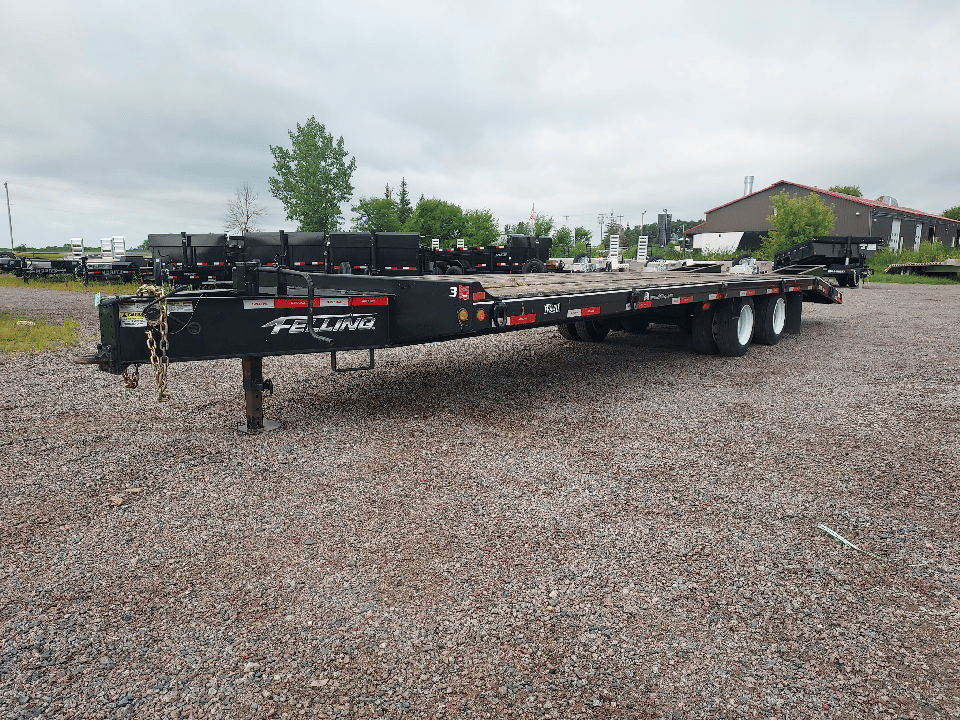

2019 Felling FT-24-2 LP

Description

FELLING TRAILER,ELEC,24K,25'+5',SPRING,LED 2019 Felling FT24-2LP Low-Pro Equipment Trailer Specs General Category: Low-Profile Deck-Over Equipment Trailer Model: FT24-2LP Year: 2019 Trailer Type: Tandem Axle Low-Pro Tag Trailer GVWR: 30,500 lbs. Payload Capacity: 23,700 lbs. Approximate Trailer Weight: 6,800 lbs. Primary Applications: Skid steers, compact track loaders, excavators, telehandlers, and other construction equipment. Deck & Frame Main Deck Length: 20 ft. Beavertail Length: 5 ft. Overall Deck Length: 25 ft. Deck Material: 2" nominal white oak Frame: Engineered fabricated high-tensile steel main beams Crossmembers: 4" pierced high-tensile Jr. I-beams on 16" centers Side Rails: 7" channel, flat side out Deck Height: Approximately 33" loaded / 35" unloaded Overall Width: 102 in. Loading Features Rear Ramps: 5' × 20" self-cleaning spring-assist angle iron ramps Beavertail: 5' self-cleaning angle iron beavertail Loading Angle: Low-profile design for easier equipment loading Tie Downs: Ten 1" straight D-rings (including one set centered on beavertail) Running Gear Axles: (2) 12,000-lb Dexter oil-bath axles Suspension: Dexter heavy-duty spring suspension Brakes: Electric forward self-adjusting brakes on all axles Tires: ST235/80R16 Load Range E Wheels: 16" × 6" 8-bolt hub-pilot steel wheels Hitch Hitch Type: 3" adjustable lunette eye/pintle Coupler Rating: 66,000 lbs. Hitch Length: Approximately 5.3 ft. (center of coupler to headboard) Jack: 12,000-lb side-wind drop-leg j
