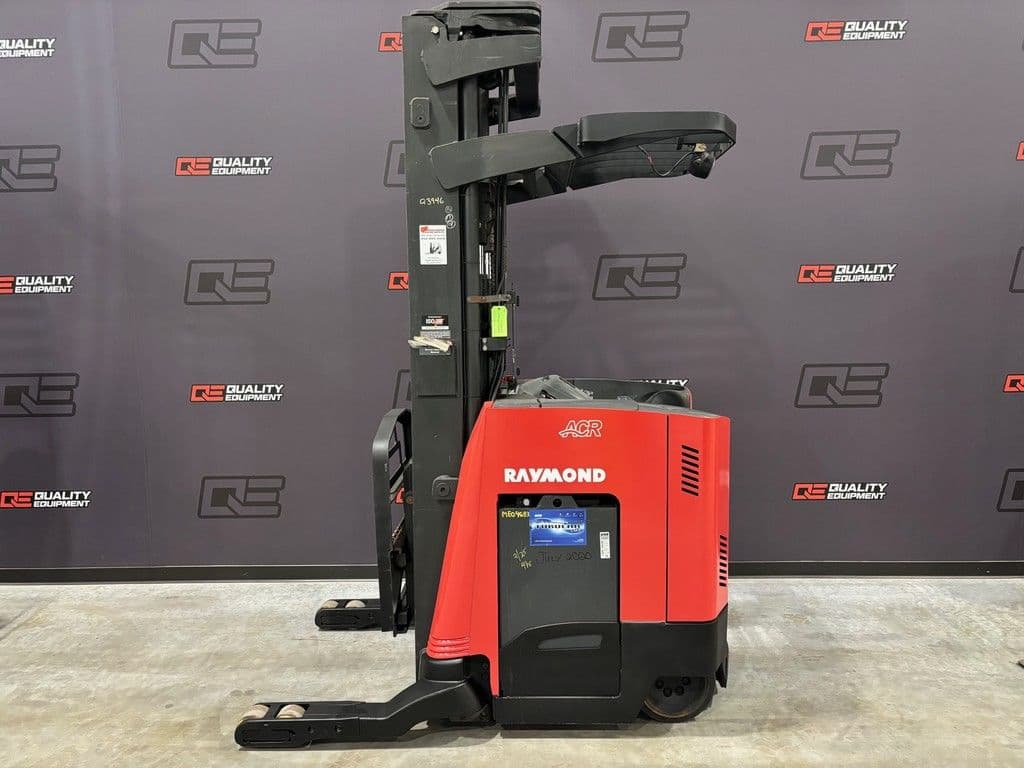

2008 Raymond 740R45TT

Description

TIRES : 13.5X6X10.5 POLY, P9204UFL, MAST TYP: 2I6512-15PRIME CHAIN LIFT HT : 110/250 FORKS : 42 POWER : 36 VOLT BATTERY 18-125-15 #ME04683 ESN > 20: WO: 276628 - DEADMAN SWITCHS DEADMAN PEDAL PARTS:WO291504, LOAD WH : 593-4834-HL/ BRG: 1426-2153 1058-0016 LD WHL SHIMS CASTER : 593-1316 / 1426-2143 MAKE : WO240609 FFL CYL CLAMP'S MODEL : 1008283-424 TILT KIT S/N : MAST CABLE-6WIRE18GA 40 FT ATT TYPE: 1073253/01 FFL CYL KIT ATT MAKE: WO154357 LH LIFTCYL KIT ATT MODL: 312-1198 HORN ATT S/N : HANG ON SS MSC1 : UPPER SLIDE 1233676 MSC2 : LOWER 1022278 X2 MSC4 : REACHModel Number: 740-R35TT Manufacturer: Raymond Type: Reach Forklift Power Source: Electric Operator Type: Stand-up Dimensions Overall Length: Approximately 8 ft Overall Width: Approximately 3.4 ft Height to Top of Overhead Guard: Approximately 7.5 ft Wheelbase: Approximately 5.4 ft Ground Clearance: Approximately 3 in Performance Load Capacity: 3,500 lbs Tilt Angle Forward/Backward: 2°/4° Travel Speed: Up to 7 mph Lifting Speed (loaded/unloaded): Approximately 70/100 ft per minute Lowering Speed (loaded/unloaded): Approximately 80/70 ft per minute Gradeability (loaded/unloaded): up to 10% Forks Fork Length: Varies Fork Width: Approximately 4 in Fork Thickness: Approximately 1.5 in Weight Service Weight: Approximately 8,000 lbs Tires Front Tire Type: Polyurethane Rear Tire Type: Polyurethane Tire Size Front: Approximately 12 in diameter Tire Size Rear: Approximately 9 in diameter Battery Battery Voltage: 36V Battery Capa
