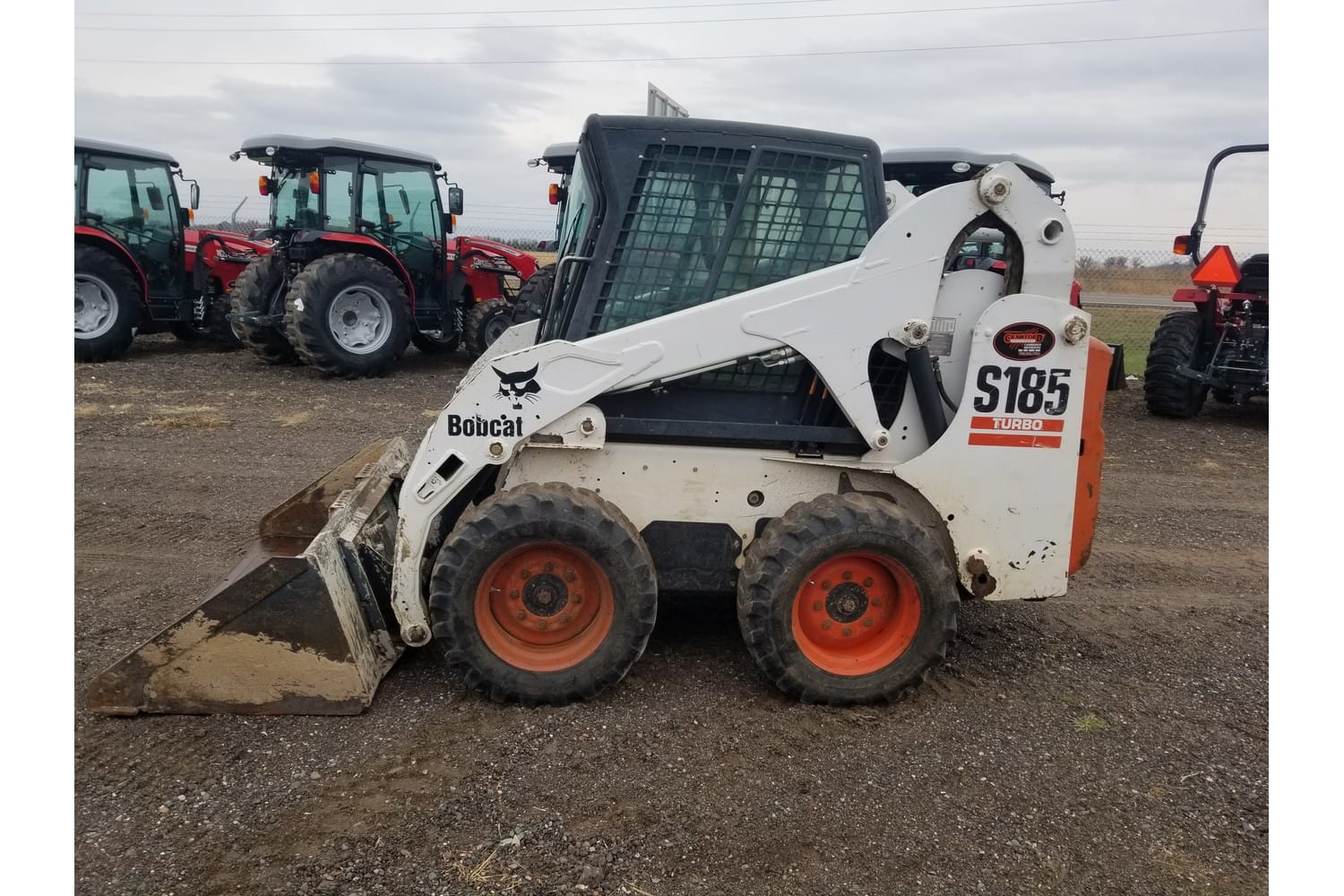

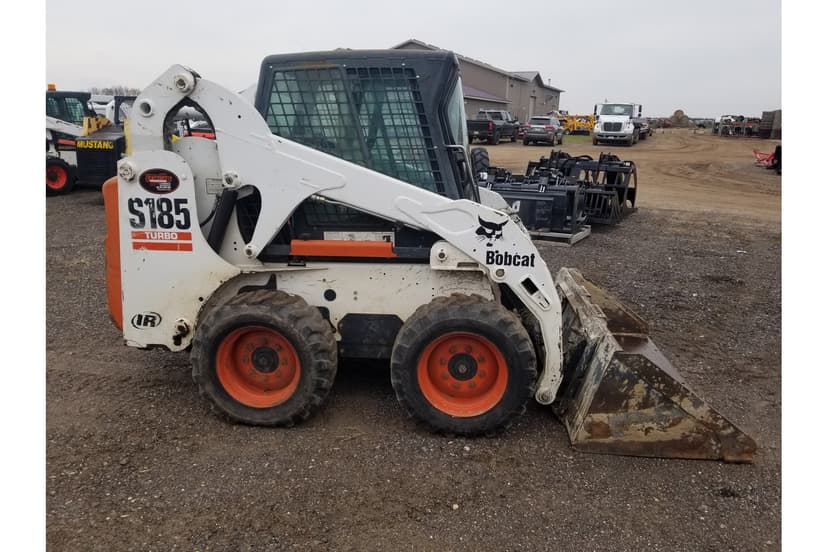

2003 Bobcat S185

Description

Bobcat S185 Skid Steer : 61 HP ,Cab HT , Hand -Foot Controls . SPECS : Engine Model Kubota V2607-DI-TE-3B Engine Type Vertical 4-cylinder liquid-cooled diesel Number of Cylinders Four Displacement, cu.in (L) 158.7 (2.59) Cylinder Bore, in (mm) 3.43 (87.0) Piston Stroke, in (mm) 4.33 (110.0) Aspiration Turbocharged Rated Engine Power, hp (kW) 61.0 (45.2) Rated Engine Speed, rpm 2700 Maximum Torque, Nm (lb-ft) 194 (144) Torque Speed, rpm 1425 Idle Speed, rpm 1175-2900 Compression Ratio 19:1 Fuel System Direct injection Lubricating System Pressure lubrication by gear pump Fuel Tank Capacity, gal (L) 24.0 (90.8) Oil Capacity, qts (L) 10.3 (9.7) Coolant Capacity, qts (L) 14.5 (13.7) Electrical System Rating, Volts 12 Charging System Alternator Alternator Rating, Amps 90 Drive Train Drive System Type Hydrostatic transmission, 4-wheel drive Number of Gears (Std) Single Number of Gears (Opt) Two (low-high) Drive Pump Type Tandem, hydrostatic piston Chain Drive Type 80 HSOC continuous roller chain Brakes Type Independent wet disc Tire Size (Std) 10x16.5 Tire Size (Opt) 31-12x16.5 Chaincase Capacity, qts (L) 32.1 (30.3) Travel Speed (Single), mph (km/h) 7.3 (11.8) Travel Speed (Low Range), mph (km/h) 7.5 (12.1) Travel Speed (High Range), mph (km/h) 11.1 (17.9) Hydraulic System Hydraulic System Type ...................... Open center Hydraulic Pump Type ...................... Gear Pump Capacity (Standard), gpm (Lpm) ...................... 16.9 (64.0) Pump Capacity (High Flow), gpm (Lpm)
