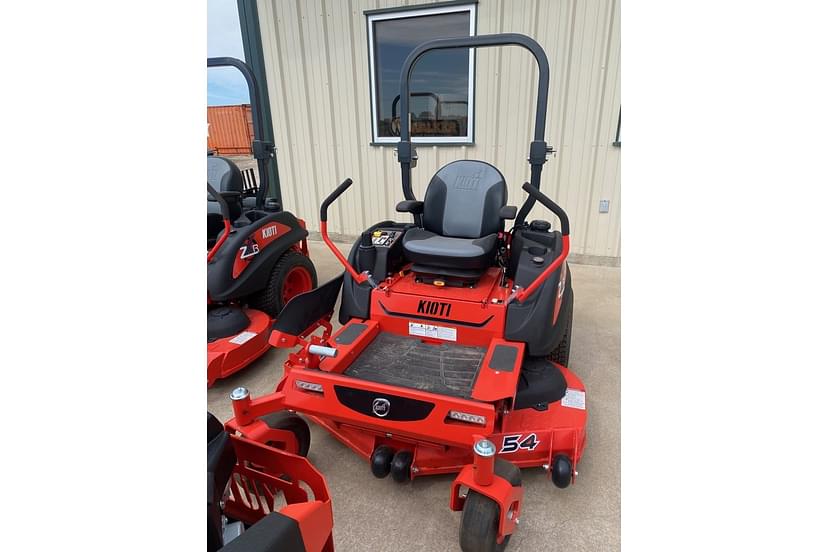

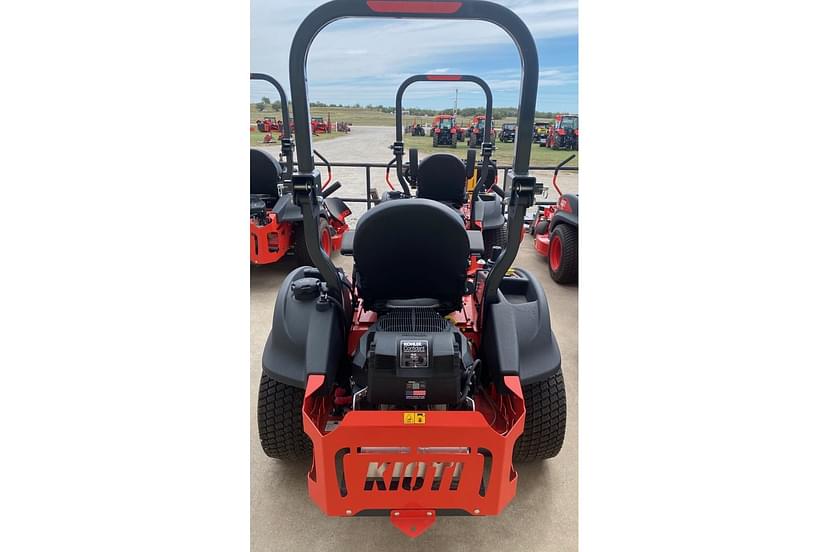

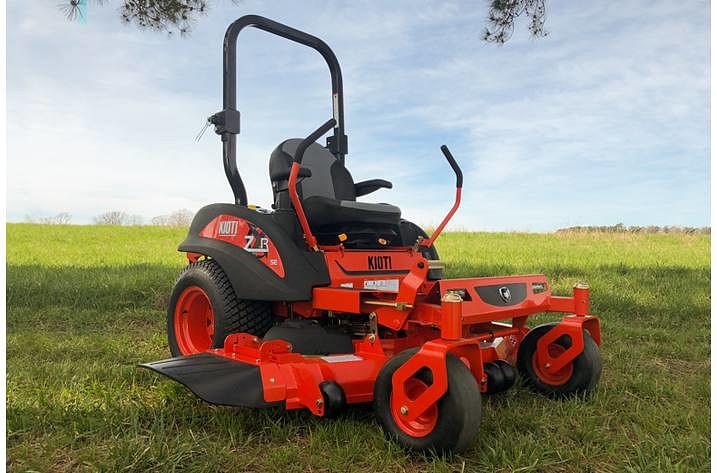

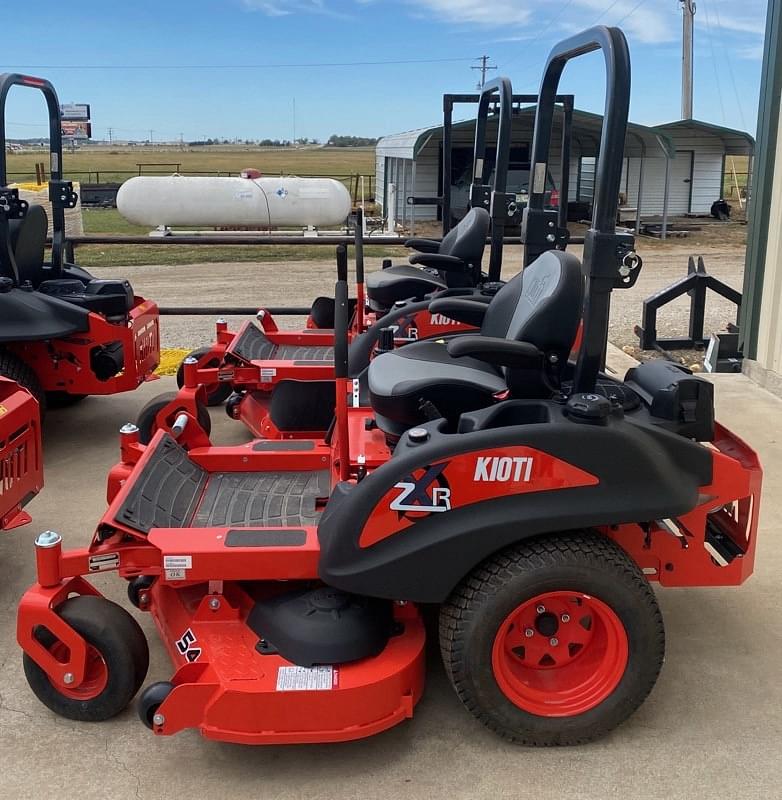

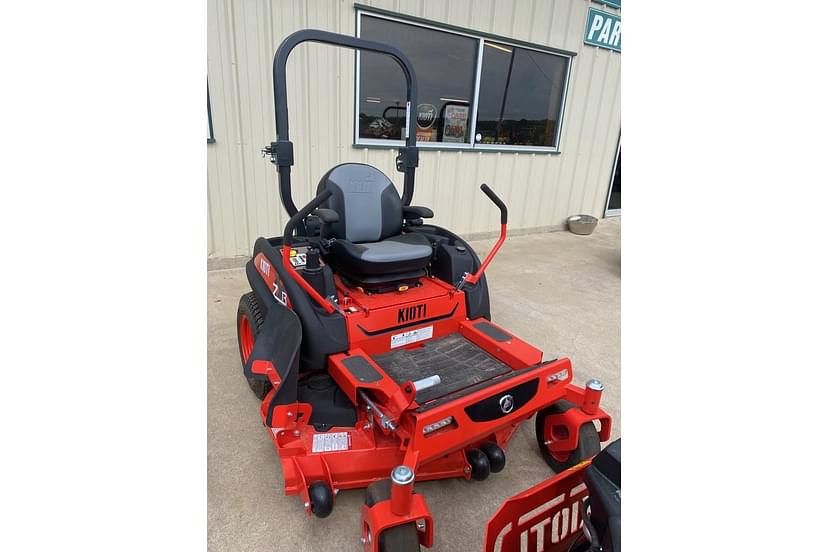

2024 Kioti ZXR

Description

The ZXR SE Series residential zero turn mower was designed with property owners and hobby farmers in mind. With a Kohler Confidant™ engine combined with a Hydro-Gear® ZT-3200 transmission, the ZXR SE delivers reliable and hardworking performance. Owners can choose from a 48, 54 or 60 in mower deck, each with a fabricated, reinforced 10-gauge steel deck and standard notch blades that cut through the toughest turf. Engine Type: Kohler Confidant Engine Gross HP: 23 HP Displacement cu. in.: 45.58 cu. in. Choke: Auto Fuel Tank Capacity gal.: 7.5 gal. Fuel Requirement: Unleaded Gasoline Drive Train Model: Hydro-Gear ZT-3200 Displacement (Pump/Motor) cc: 10/16 cc PTO Type Clutch ft./lb.: 125 ft./lb. Electrical Charging System amp: 15 amp Tire Size Front: 13x5-6 Rear: 23x9.5-12 Traveling Speeds Forward mph: 9 mph Parking Brake: Internal Integrated in Axle Dimensions Overall Length in.: 80.7 in. Overall Width in.: 67.3 in. Overall Height in.: 71.5 in. Wheelbase in.: 48.5 in. Width (Tire to Tire) in.: 50.3 in. Approximate Curb Weight lb.: 988 lb. Mower Deck Mower Deck Type: Fabricated Lift Mechanism: Foot Pedal Deck Steel Thickness: 10-gauge with 7-gauge at edge area Anti-Scalp Ball Rollers: 6 (4 front, 2 rear) Cutting Width of Mower in. (mm): 54 (1,371.6) Blades: Notched (Opt. Serrated) Cutting Height in. (mm): 1.5-5 (38.1-127) Discharge Chute: Side (Molded Rubber) Deck Height Adjustment: Dial Type Seat Suspension: Standard (1.5 in. Suspension) Sliding Adjustment: Standard Arm Rest: S
