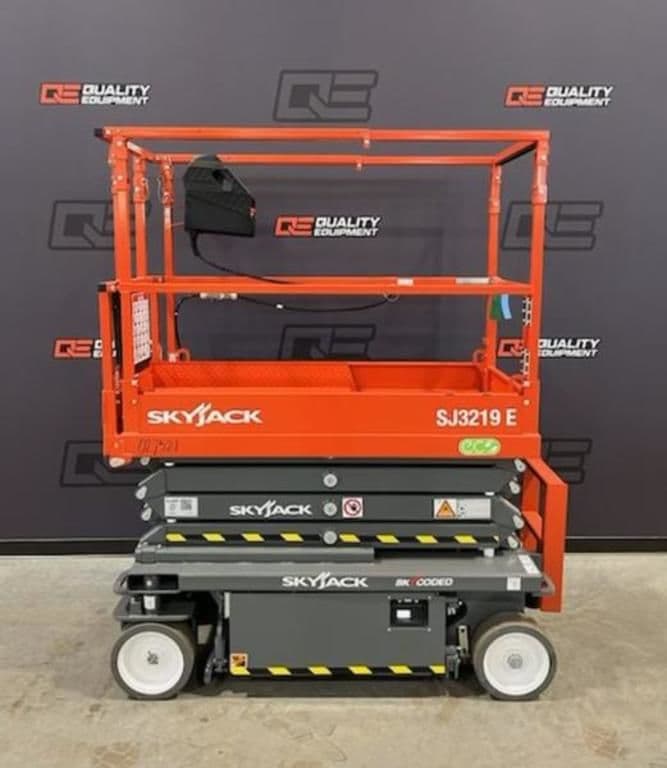

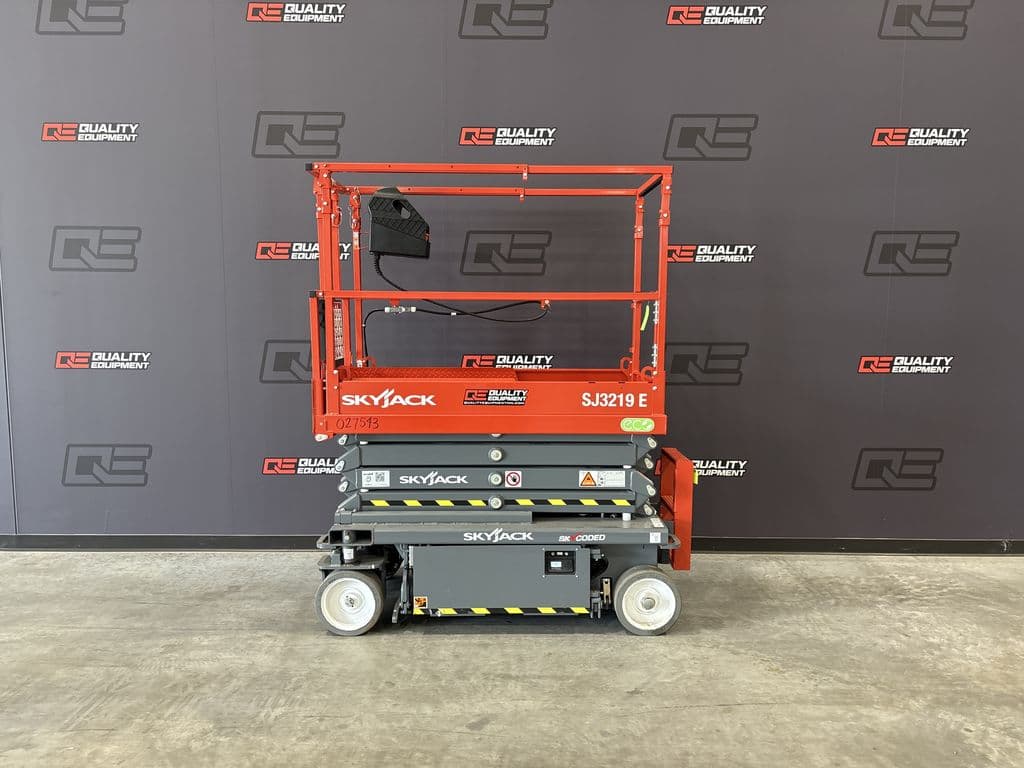

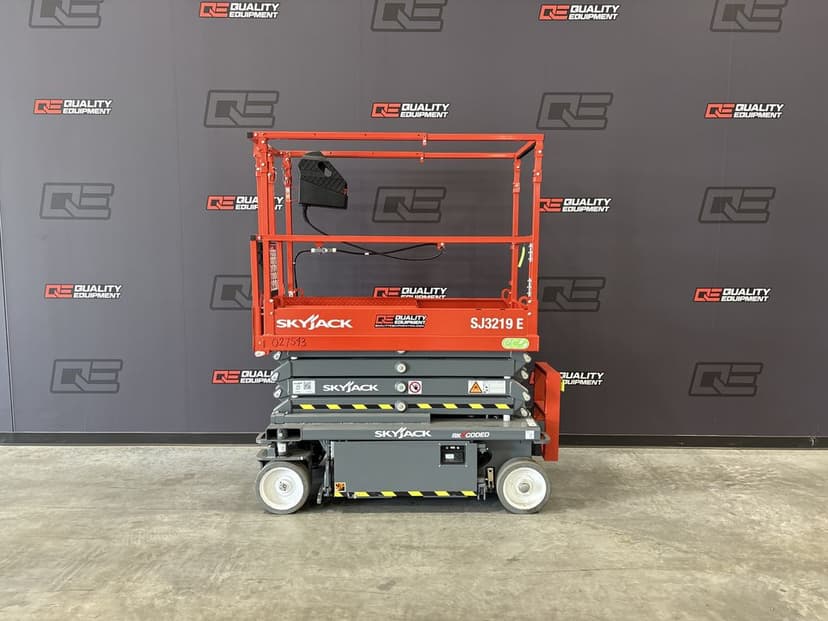

2024 Sky Jack SJ3219

Description

Save now through October 31st on in-stock models while supplies last! See us for full details. 500 CAPACITY 19' LIFT NON MARKING TIRES 24V ELECTRICWork Height 24’ 6” (7.47 m) Raised Platform Height 18’ 6” (5.64 m) Lowered Platform Height 41” (1.04 m) Overall Width 32” (0.81 m) Overall Length 71” (1.80 m) Stowed Height (Rails Up) 84” (2.13 m) Stowed Height (Rails Down) 79.75” (2.02 m) Platform Width (Inside Dimension) 26” (0.66 m) Platform Length (Inside Dimension) 61” (1.55 m) Extension Deck (Roll Out) 3’ (0.91 m) Ground Clearance (Stowed) 3.5” (8.9 cm) Ground Clearance (raised) 0.50” (1.3 cm) Wheelbase 54” (1.37 m) Weight 3,255 lbs (1,476 kg) Gradeability 25% Turning Radius (Inside) 0 Turning Radius (Outside) 65” (1.65 m) Lift Time (With Rated Load) 19 sec Lower Time (With Rated Load) 25 sec Drive Speed (Stowed) 2.1 mph (3.4 km/h) Drive Speed (Raised) 0.7 mph (1.1 km/h) Maximum Drive Height Full Height Capacity 500 lbs (227 kg) Distributed Capacity (Main Platform) 250 lbs (113 kg) Distributed Capacity (Extension Deck) 250 lbs (113 kg) Local Floor Load (With Rated Load) 168 psi (1,159 kPa) Overall Floor Load (With Rated Load) 243 psf (1,188 kg/m2) Maximum # of Persons 2 Tire Type Solid, N/M Tire Size 12 x 4 x 8
