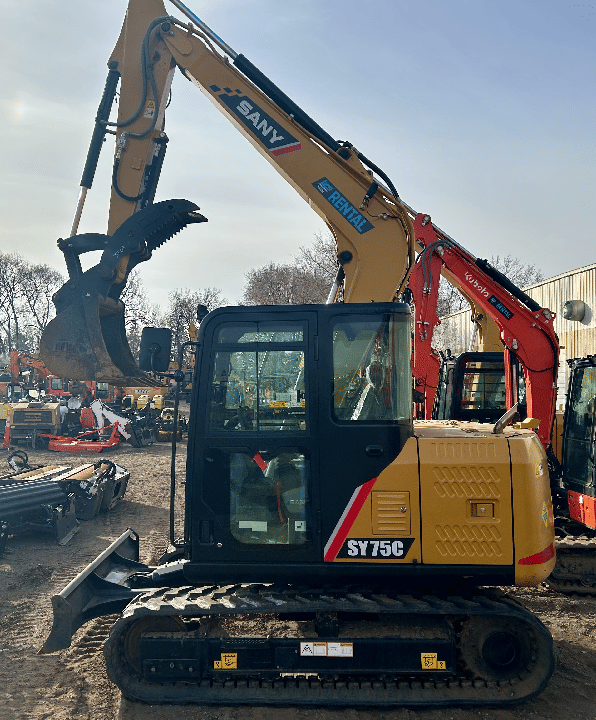

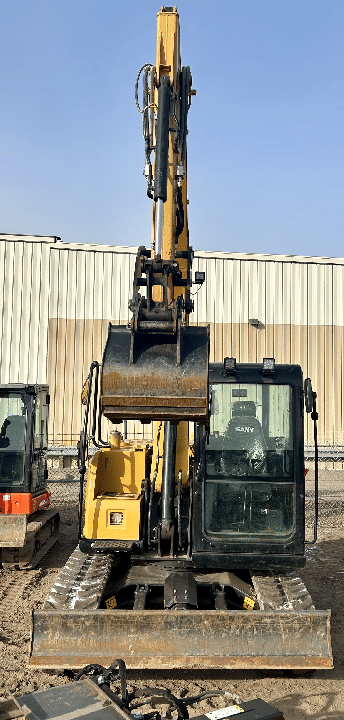

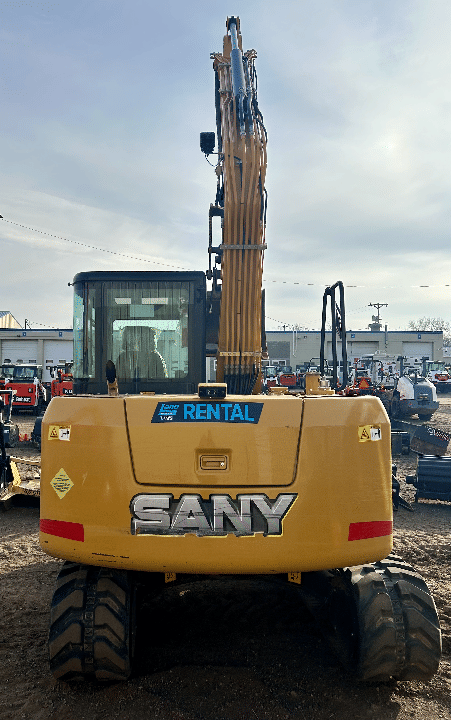

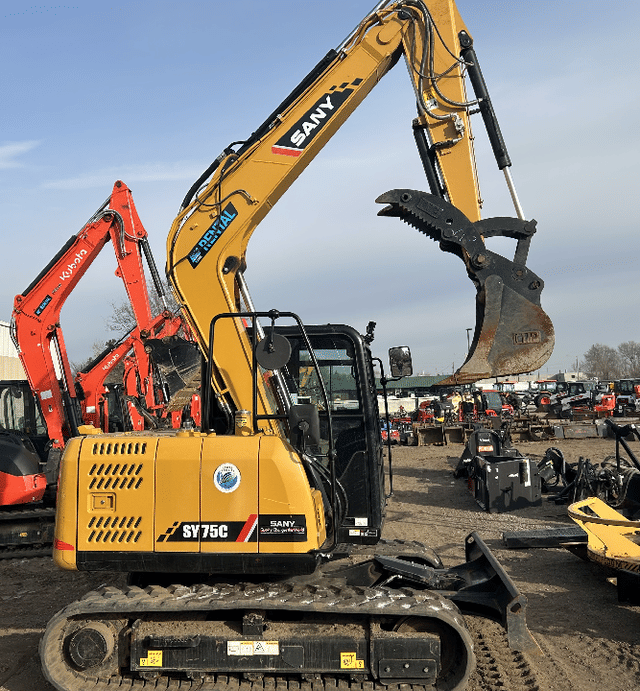

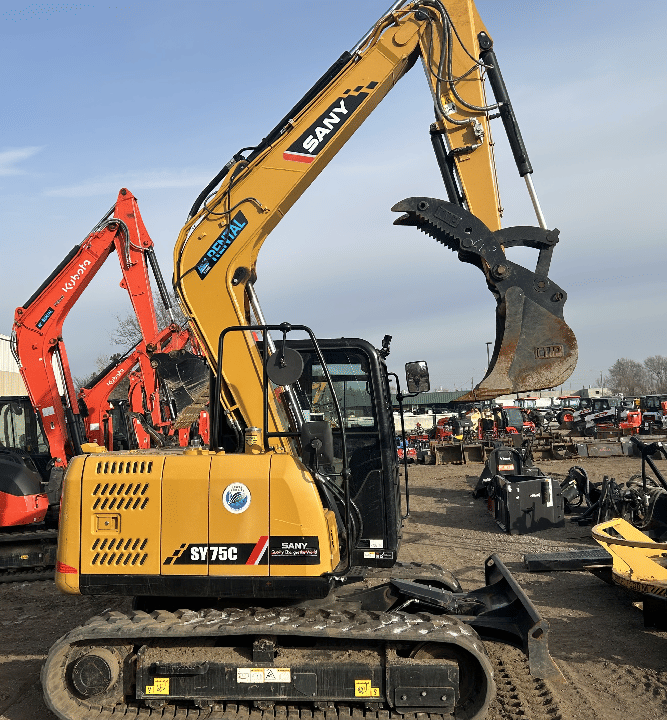

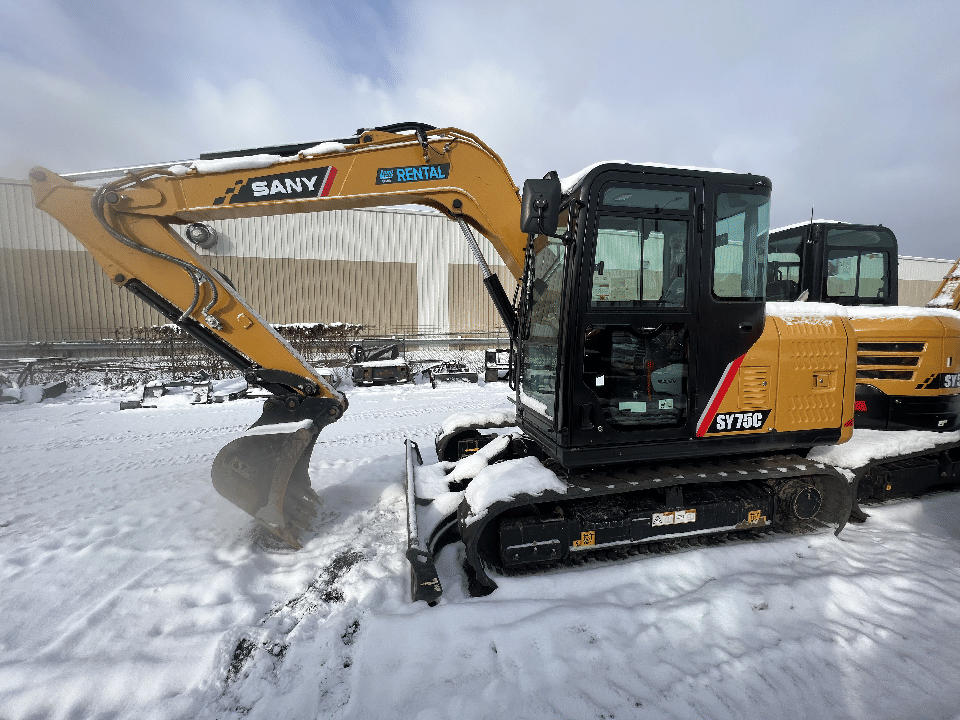

2022 SANY SY75C

Description

Excavator-A/C Cab/Heat-Rubber Tracks-Blade-QC-Bkt Model: SANY SY75C Mini Excavator Year: 2022 Machine Type: Conventional tail-swing compact excavator Engine: Yanmar 4TNV98C turbocharged diesel Horsepower: 57 HP gross / 54 HP net Displacement: 3.3 L (201.4 cu. in.) Emissions: Tier 4 Final Operating Weight: Approximately 16,050 lbs Cab: Enclosed cab with heat and air conditioning Tracks: 18" rubber tracks Track Gauge: 5' 9" Travel Speed: 1.4 mph low / 2.6 mph high Maximum Digging Depth: 14' 7" Maximum Reach at Ground Level: 21' 4" Maximum Digging Height: 24' 3" Maximum Dumping Height: 18' Bucket Breakout Force: Approximately 11,465 lbf Arm Breakout Force: Approximately 11,914 lbf Hydraulic System: Load-sensing hydraulic system with pilot controls Maximum Auxiliary Hydraulic Flow: Approximately 31.7 GPM Maximum Auxiliary Pressure: 3,626 PSI Fuel Tank Capacity: 26.4 gallons Hydraulic Tank Capacity: 31.7 gallons Boom Length: 12' 3" Arm Length: 6' 9" Overall Transport Length: 20' 1" Overall Transport Width: 7' 3" Overall Transport Height: 8' 11" Tail Swing Radius: 5' 11" Ground Clearance: 15" Dozer Blade: Front-mounted backfill blade Quick Coupler: Included Bucket: Included Auxiliary Hydraulics: Dual auxiliary circuits with adjustable flow and pressure Operator Features: Multifunction display, pilot joystick controls, two-speed travel, and adjustable operator seat Safety Features: ROPS/FOPS-certified cab, travel alarm, and automatic parking brake Applications: Excavation, trenching
