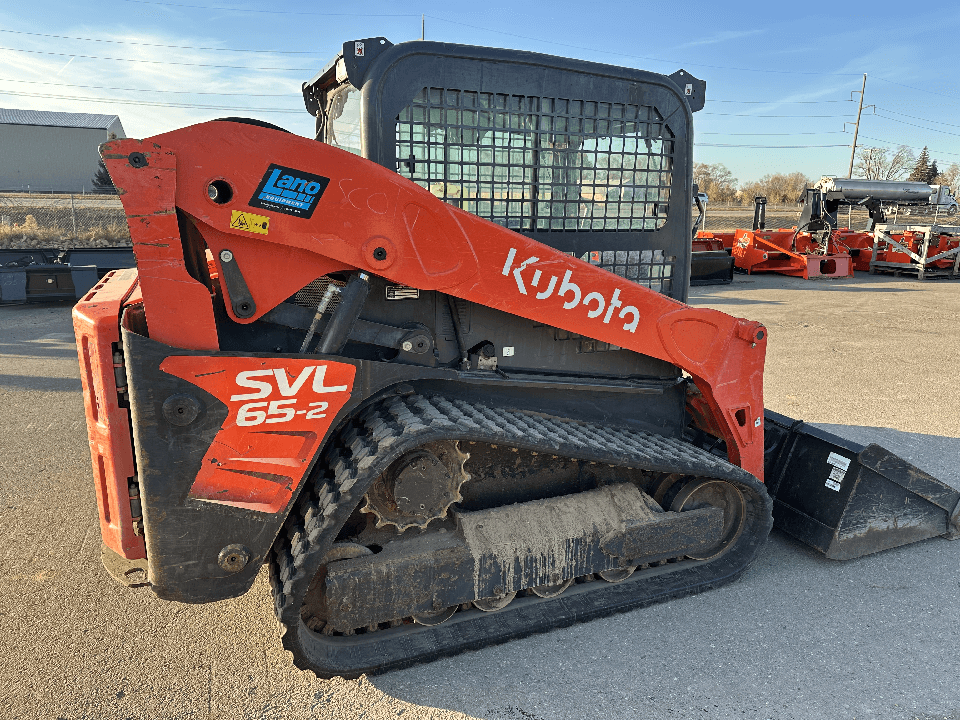

2022 Kubota SVL65-2

Description

CTL-A/C Cab/Heat-Hi Flo-Hyd QC-15" Tracks Engine & Power Engine : Kubota 4-cyl turbocharged diesel Gross Horsepower : 68.4 hp @ 2,600 rpm Net Horsepower : 62.5 hp Displacement : 159.6 cu in (2.6 L) Fuel Tank Capacity : 28.8 gal Operating Specs Rated Operating Capacity (35% ROC) : 2,100 lb Operating Capacity (50% tipping) : 3,000 lb Tipping Load : 6,000 lb Bucket Breakout Force : approx. 4,614 lb Lift Arm Breakout Force : approx. 4,266 lb Operating Weight : approx. 8,035 lb Travel Speed : approx. 7.1 mph (2-speed standard on HFWC) Hydraulic System Standard Auxiliary Flow : approx. 17.4 gpm High-Flow Auxiliary Hydraulics : approx. 27.0 gpm (HFWC equipped) Hydraulic System Relief Pressure : approx. 3,500 psi 14-Pin Electrical Connector : High-flow configuration compatible Tracks & Undercarriage Track Width (Standard) : 12.6 in rubber Track Width (Wide Track Option) : 15.0 in rubber (HFWC typically equipped) Ground Pressure : approx. 4.9 psi with standard tracks Ground Clearance : 9.2 in Dimensions Length without Bucket : 107.3 in Length with Bucket on Ground : 136.4 in Height to Cab Top : 79.9 in Width over Tracks (Standard) : 65.2 in Height to Bucket Hinge Pin : approx. 120 in Controls & Operator Station Controls : Pilot joystick controls Cab : Enclosed cab with heat and A/C (HFWC standard) Front Door : Sliding front entry door operable with loader arms raised Visibility : 360 degrees sightlines, large roof window for lift-height visibility Seat : Suspension / optional air-ride
