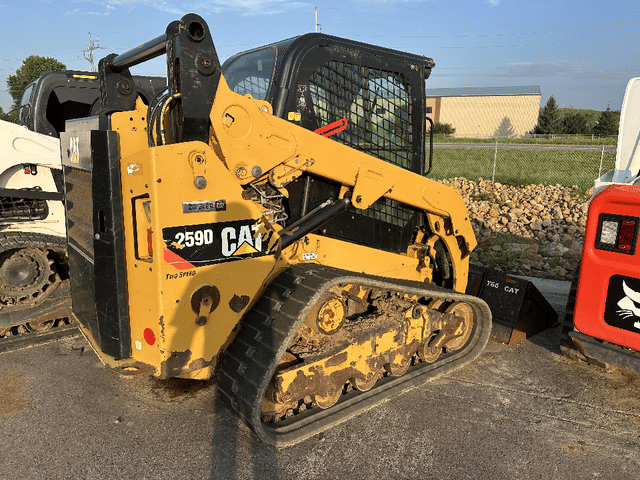

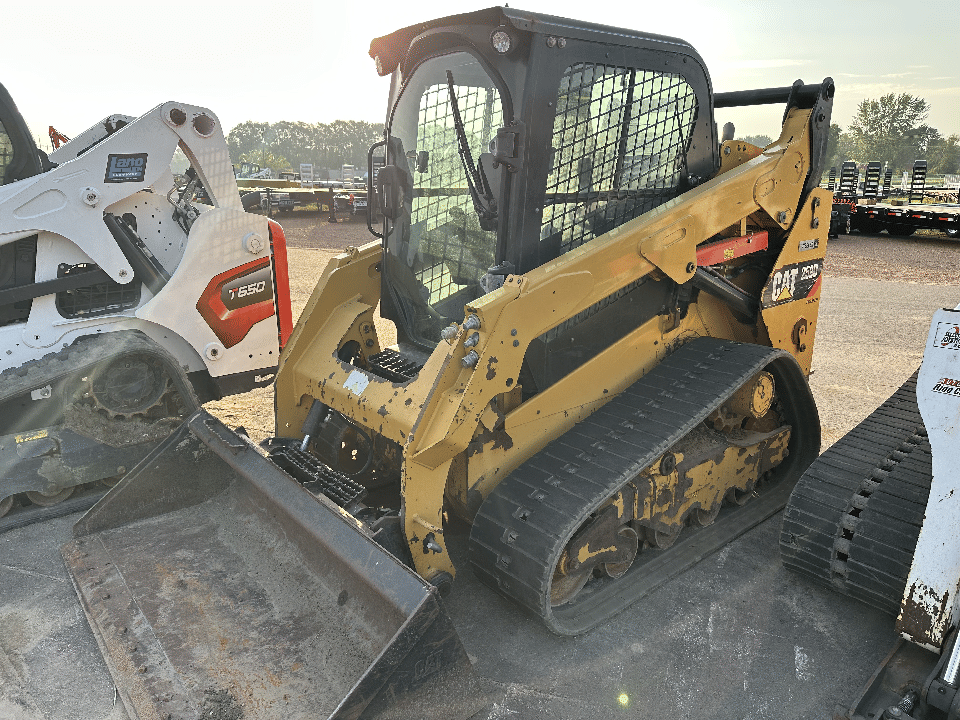

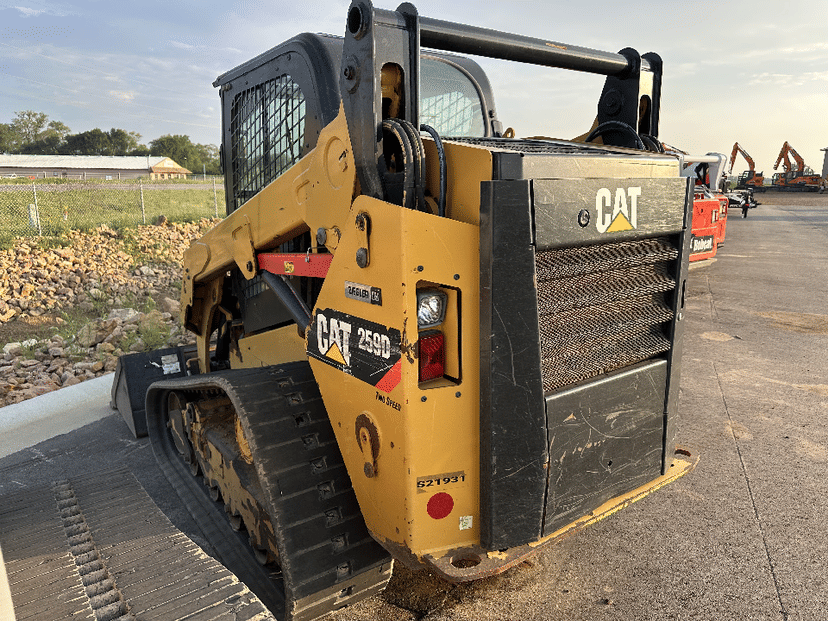

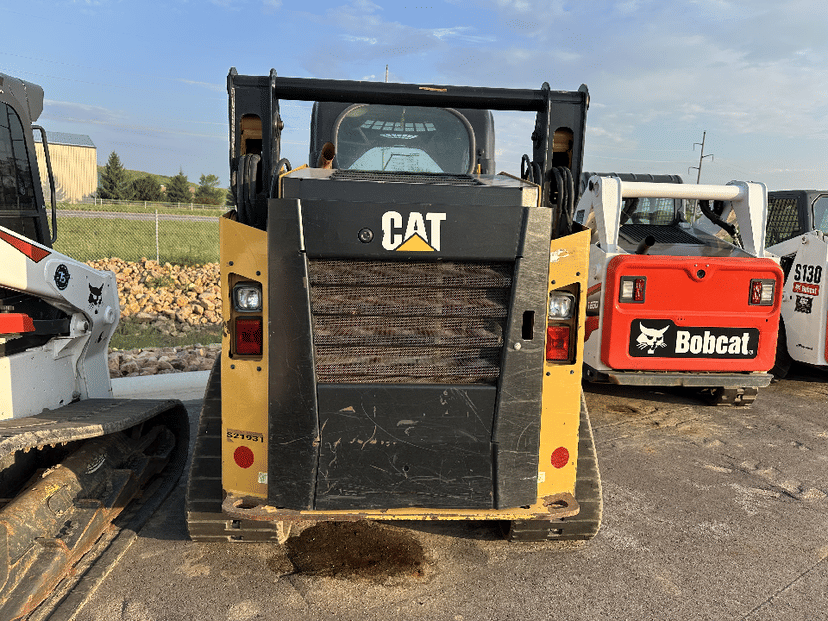

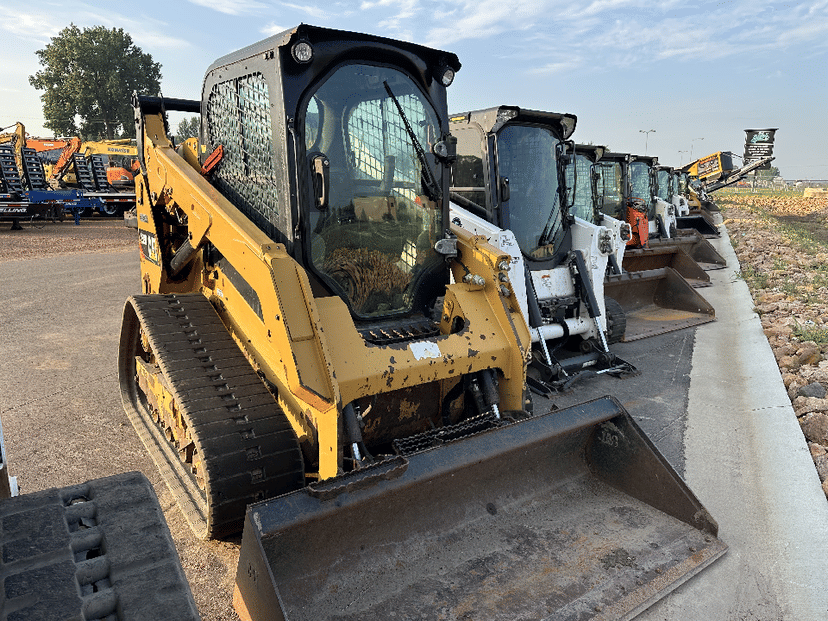

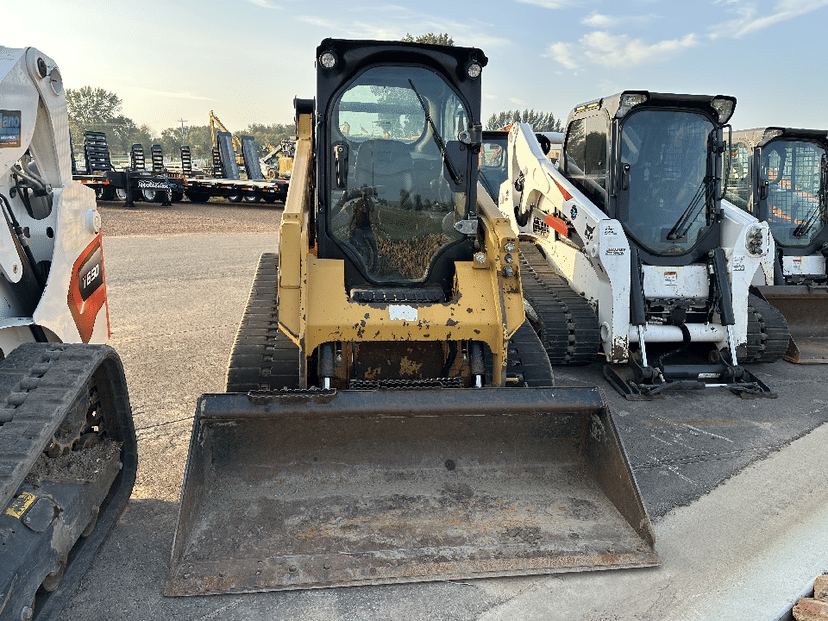

2019 Caterpillar 259D

Description

CTL-Cab-A/C-Power QA-2SPD-Bucket Engine: Cat C3.3B DIT Turbo Net Power: 73.2 hp Gross Power: 74.3 hp Operating Weight (15.7" tracks): 8,945 lbs Operating Weight (12.6" tracks): 8,846 lbs Rated Operating Capacity (50%): 2,900 lbs Rated Operating Capacity (35%): 2,030 lbs Tipping Load: 5,800 lbs Breakout Force (Tilt Cylinder): 5,035 lbs Ground Contact Area (12.6" tracks): 1,483 in² Ground Pressure (12.6" tracks): 6.0 psi Ground Contact Area (15.7" tracks): 1,848 in² Ground Pressure (15.7" tracks): 4.8 psi Hydraulic Flow (Standard): ~20 GPM @ 3,335 PSI Hydraulic Flow (High Flow Option): Up to 30 GPM Travel Speed - One Speed: 5.9 mph Travel Speed - Two Speed: 8.5 mph Fuel Tank Capacity: 27.7 gal Cooling System Capacity: 3.7 gal Hydraulic System Capacity: 13.2 gal Design & Performance Features Track System: Rubber track multi-terrain design for strong traction, flotation, and stability Powertrain: High-performance turbo diesel designed for strong torque and efficient load performance Hydraulics: Optional high-flow system supports demanding attachments and increases versatility Suspension: Independent torsion-axle suspension for smoother ride and better load retention Operator Station: ROPS/FOPS cab with ergonomic controls and optional upgraded seating Versatility: Compatible with a wide range of Cat and universal quick-attach loader attachments
